Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
243
4 Go to iOS mobile device Menu > Settings > VPN > ZyXEL_L2TP and verify the Assigned IP
Address and Connect Time.

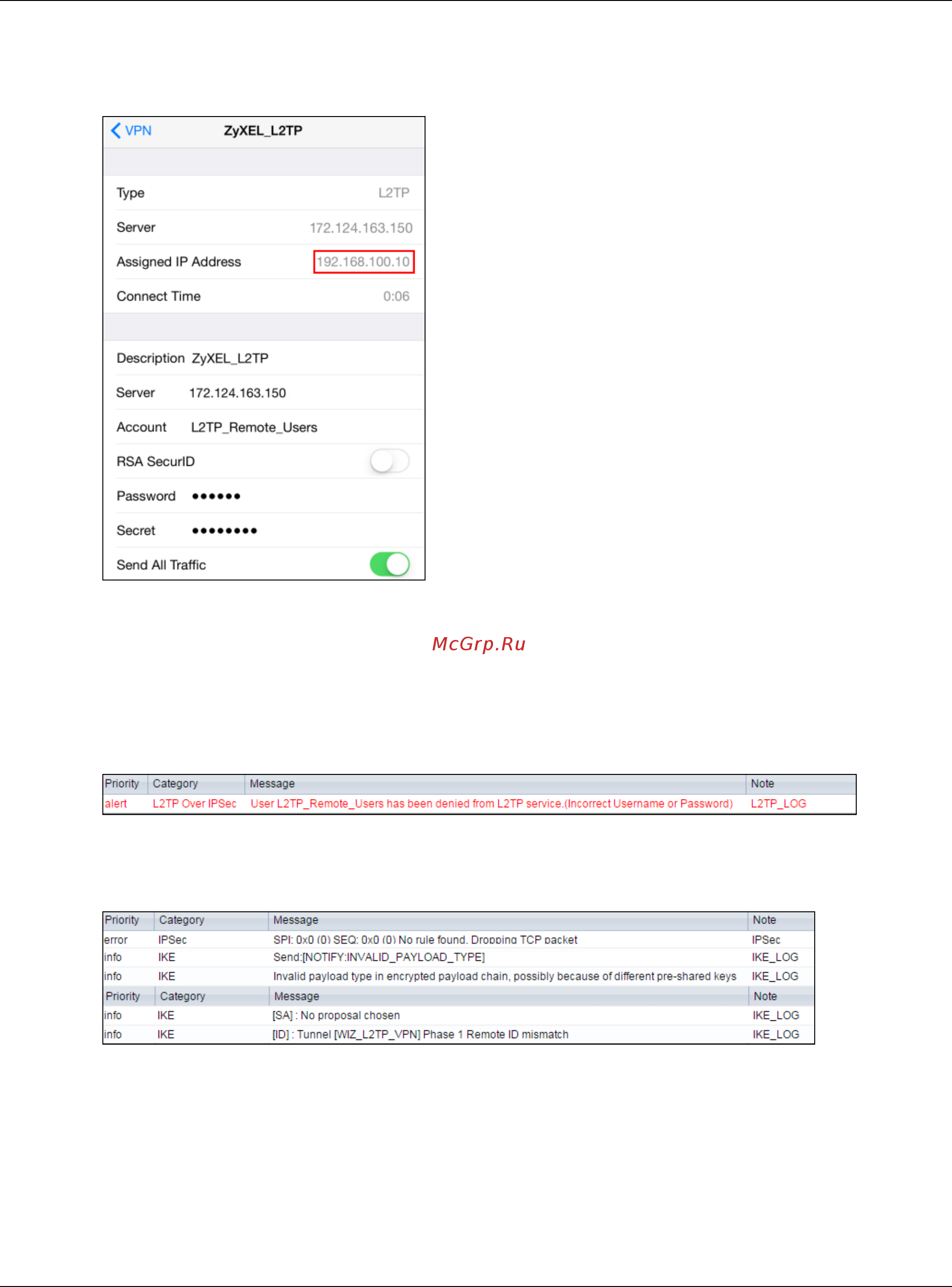

Figure 523 Menu > Settings > VPN > ZyXEL_L2TP
5.3.4 What Could Go Wrong?
1 If you see [alert] log message such as below, please check ZyWALL/USG L2TP Allowed User or
User/Group Settings. iOS Mobile users must use the same Username and Password as configured
in ZyWALL/USG to establish the L2TP VPN.
Figure 524 MONITOR > Log
2 If you see [info] or [error] log message such as below, please check ZyWALL/USG Phase 1 Settings.
iOS Mobile users must use the same Secret as configured in ZyWALL/USG to establish the IKE SA.
Figure 525 MONITOR > Log
