Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
89
8 Click Next. Then, Browse..., and locate the .p12 file you downloaded earlier. Then, click Next.

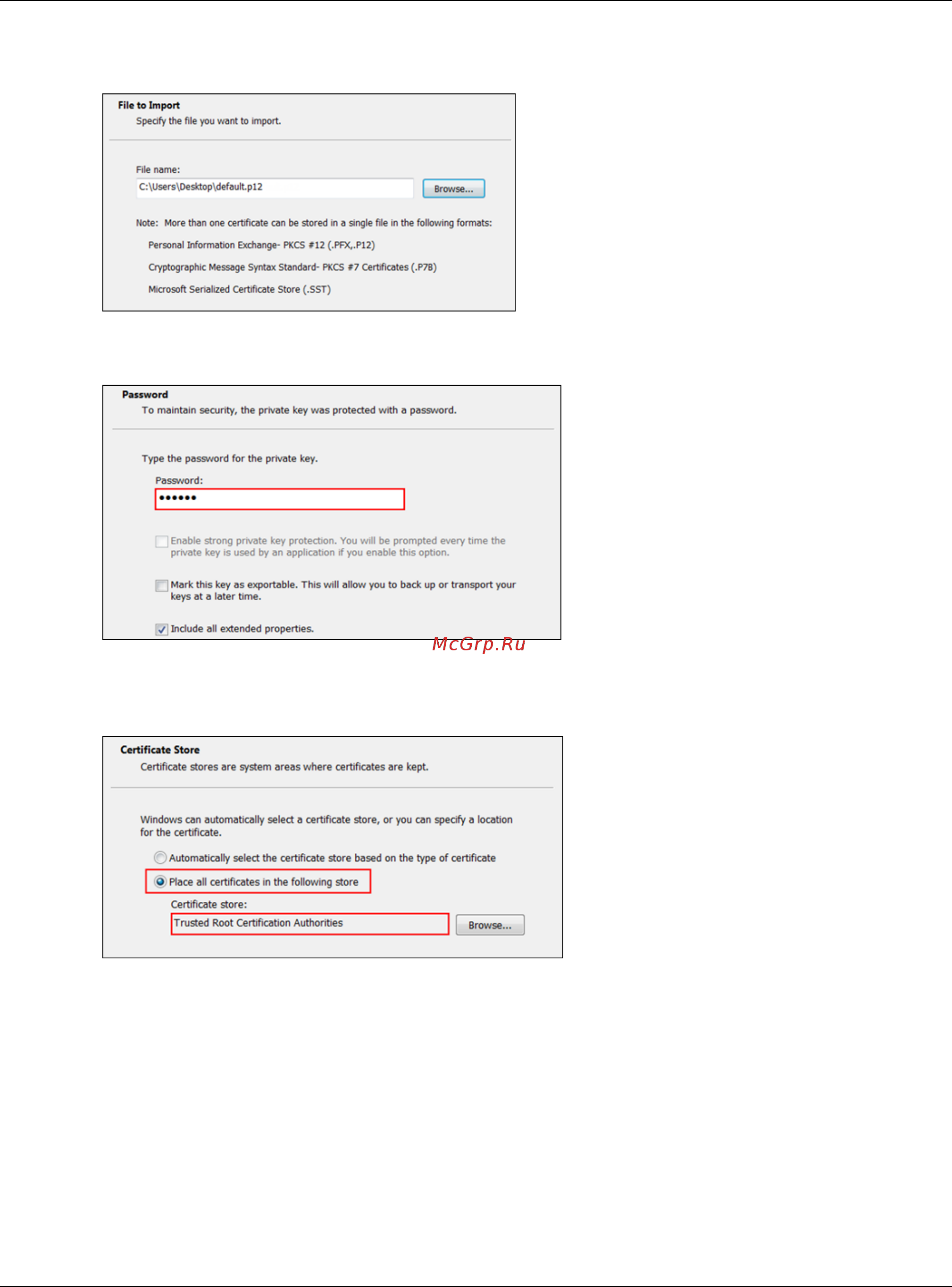

Figure 160 Browse the .p12 file
9 Click Next, type zyx123 in the Password field and click Next again
Figure 161 Fill in Your Password
10 Select Place all certificates in the following store and then click Browse and find Trusted
Root Certification Authorities. Click Next, then click Finish.
Figure 162 Browse Any Trusted Root Certification Authorities
Note: Each ZyWALL/USG device has its own self-signed certificate by factory default.
When you reset to default configuration file, the original self-signed certificate is
erased, and a new self-signed certificate will be created when the ZyWALL/USG
boots the next time.
