Chapter 7 Wireless
VMG1312-B10B / VMG1312-B30B Series User’s Guide
103
Click Network Setting > Wireless to open the General screen.

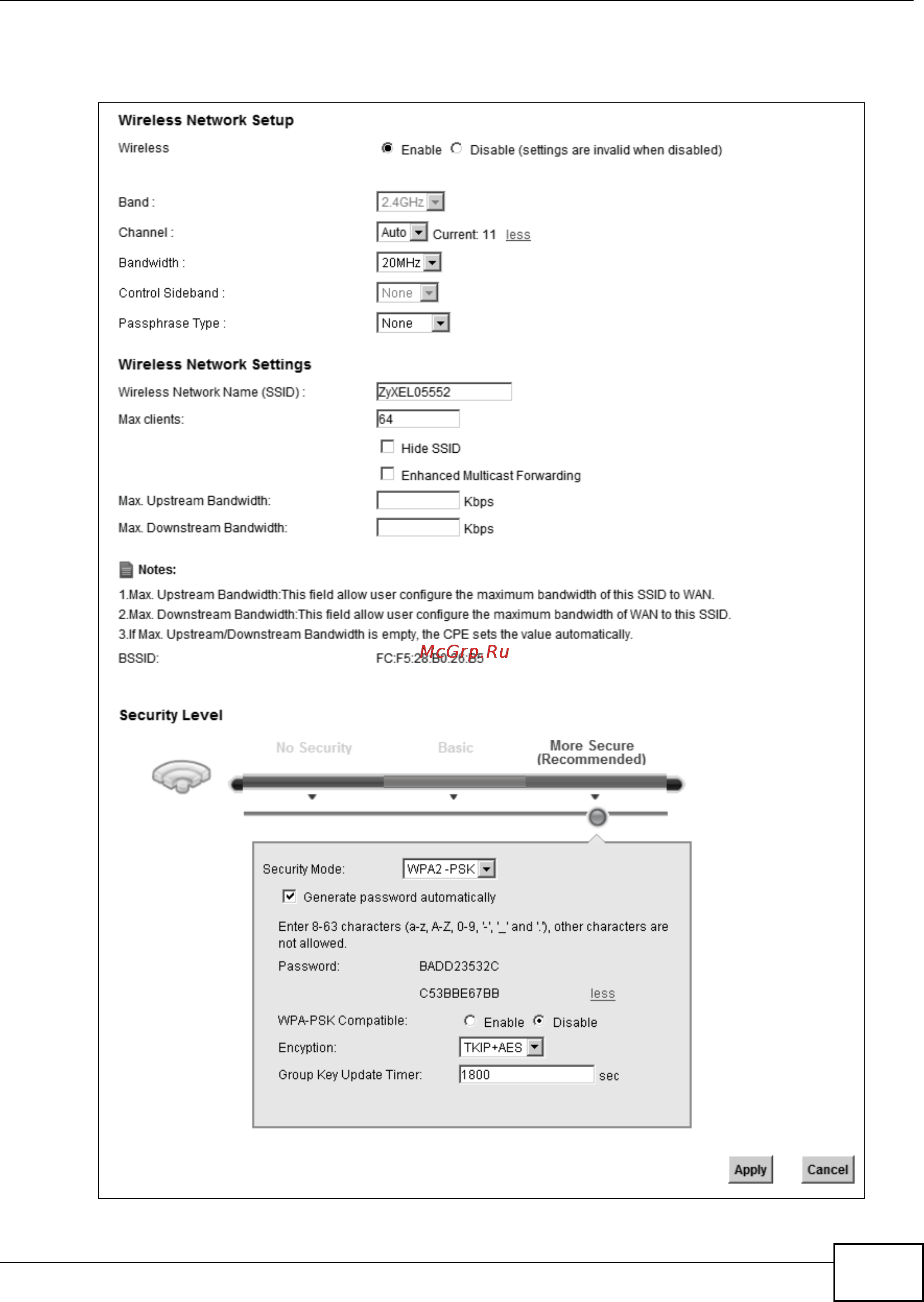

Figure 30 Network Setting > Wireless > General
