Appendix D Pop-up Windows, JavaScripts and Java Permissions
VMG1312-B10B / VMG1312-B30B Series User’s Guide
353
5 Click OK to close the window.

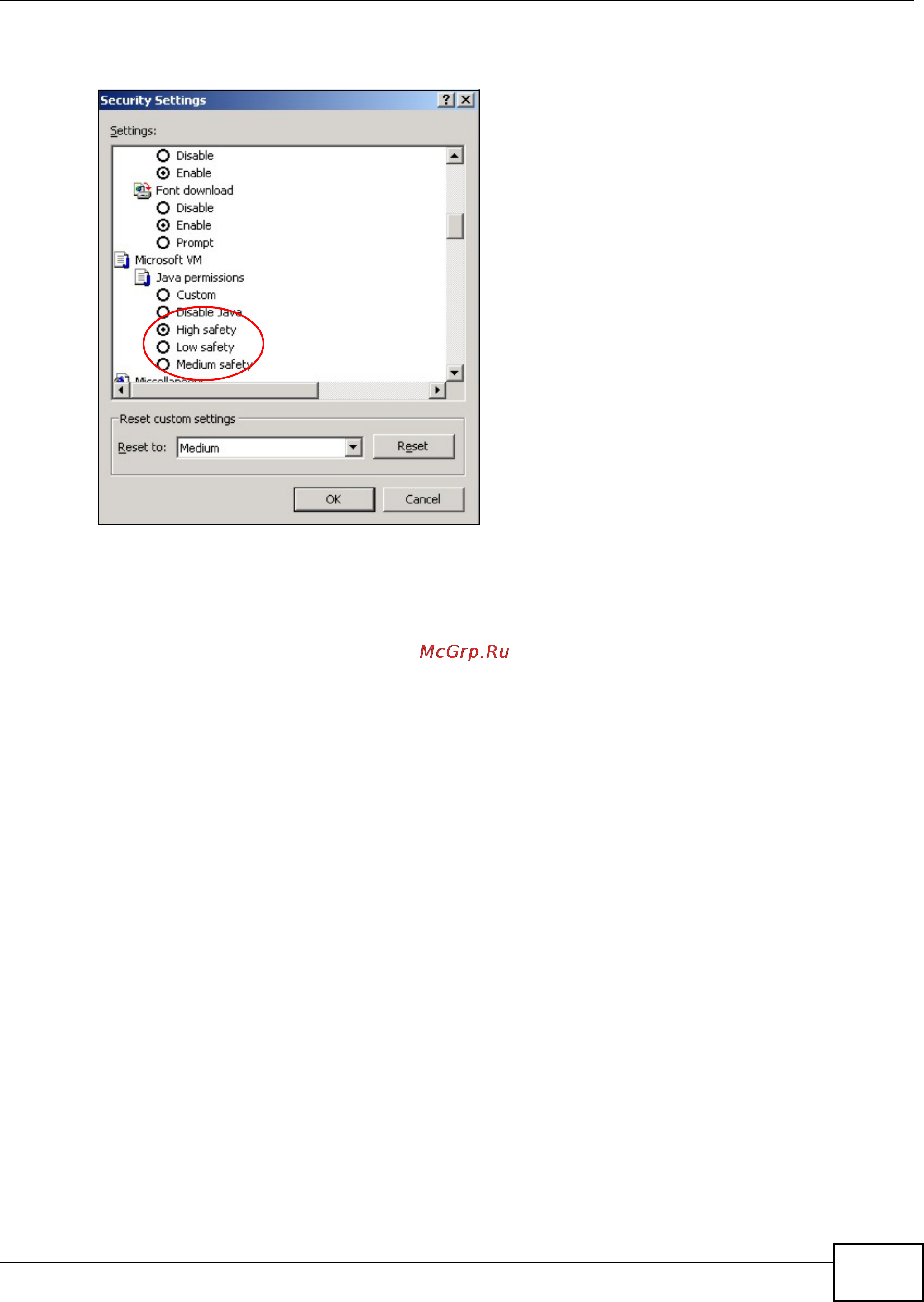

Figure 202 Security Settings - Java
JAVA (Sun)
1 From Internet Explorer, click Tools, Internet Options and then the Advanced tab.
2 Make sure that Use Java 2 for <applet> under Java (Sun) is selected.
