Chapter 15 Firewall
VMG1312-B10B / VMG1312-B30B Series User’s Guide
220

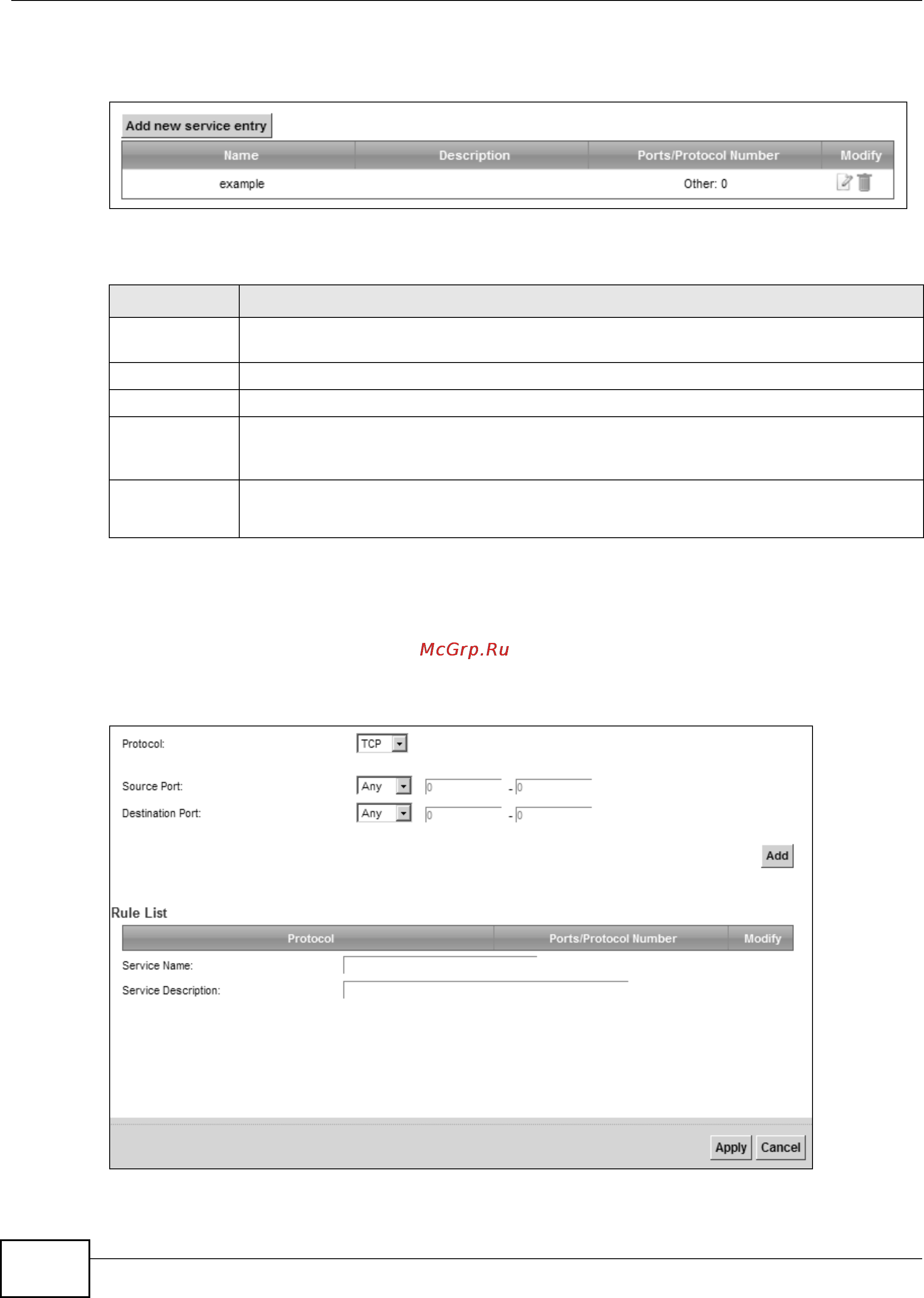

Click Security > Firewall > Service to display the following screen.
Figure 104 Security > Firewall > Service
The following table describes the labels in this screen.
15.3.1 Add/Edit a Service
Use this screen to add a customized service rule that you can use in the firewall’s ACL rule
configuration. Click Add new service entry or the edit icon next to an existing service rule in the
Service screen to display the following screen.
Figure 105 Service: Add/Edit
Table 76 Security > Firewall > Service
LABEL DESCRIPTION
Add new
service entry
Click this to add a new service.
Name This is the name of your customized service.
Description This is the description of your customized service.
Ports/Protocol
Number
This shows the IP protocol (TCP, UDP, ICMP, or TCP/UDP) and the port number or range
of ports that defines your customized service. Other and the protocol number displays if the
service uses another IP protocol.
Modify/Delete Click the Edit icon to edit the entry.
Click the Delete icon to remove this entry.
