The following table describes the fields in this screen.

If you select ADSL over ATM as the interface type, the following screen appears.

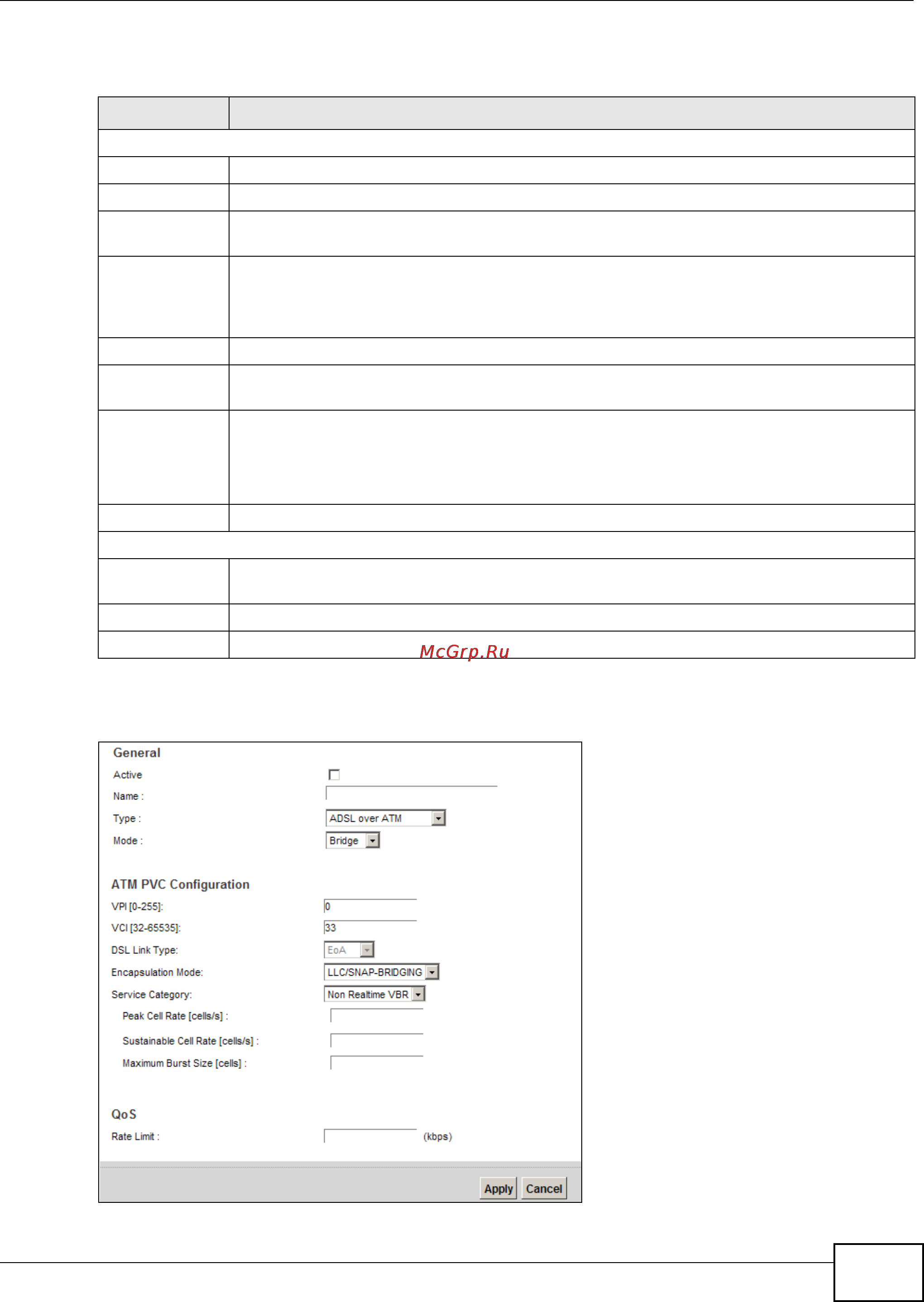

Figure 22 Bridge Mode (ADSL over ATM)

Table 9 Bridge Mode (ADSL/VDSL over PTM)

LABEL DESCRIPTION

General

Active Select this to activate the WAN configuration settings.

Name Enter a service name of the connection.

Type Select ADSL/VDSL over PTM as the interface that you want to configure. The Device uses

the VDSL technology for data transmission over the DSL port.

Mode Select Bridge when your ISP provides you more than one IP address and you want the

connected computers to get individual IP address from ISP’s DHCP server directly. If you

select Bridge, you cannot use routing functions, such as QoS, Firewall, DHCP server and

NAT on traffic from the selected LAN port(s).

VLAN This section is available only when you select ADSL/VDSL over PTM in the Type field.

Active Select this to add the VLAN Tag (specified below) to the outgoing traffic through this

connection.

802.1p IEEE 802.1p defines up to 8 separate traffic types by inserting a tag into a MAC-layer frame

that contains bits to define class of service.

Select the IEEE 802.1p priority level (from 0 to 7) to add to traffic through this connection.

The greater the number, the higher the priority level.

802.1q Type the VLAN ID number (from 0 to 4094) for traffic through this connection.

QoS

Rate Limit Enter the rate limit for the connection. This is the maximum transmission rate allowed for

traffic on this connection.

Apply Click Apply to save your changes.

Cancel Click Cancel to exit this screen without saving.
