11.4.1 Add/Edit Port Triggering Rule

This screen lets you create new port triggering rules. Click Add new rule in the Port Triggering

screen or click a rule’s Edit icon to open the following screen.

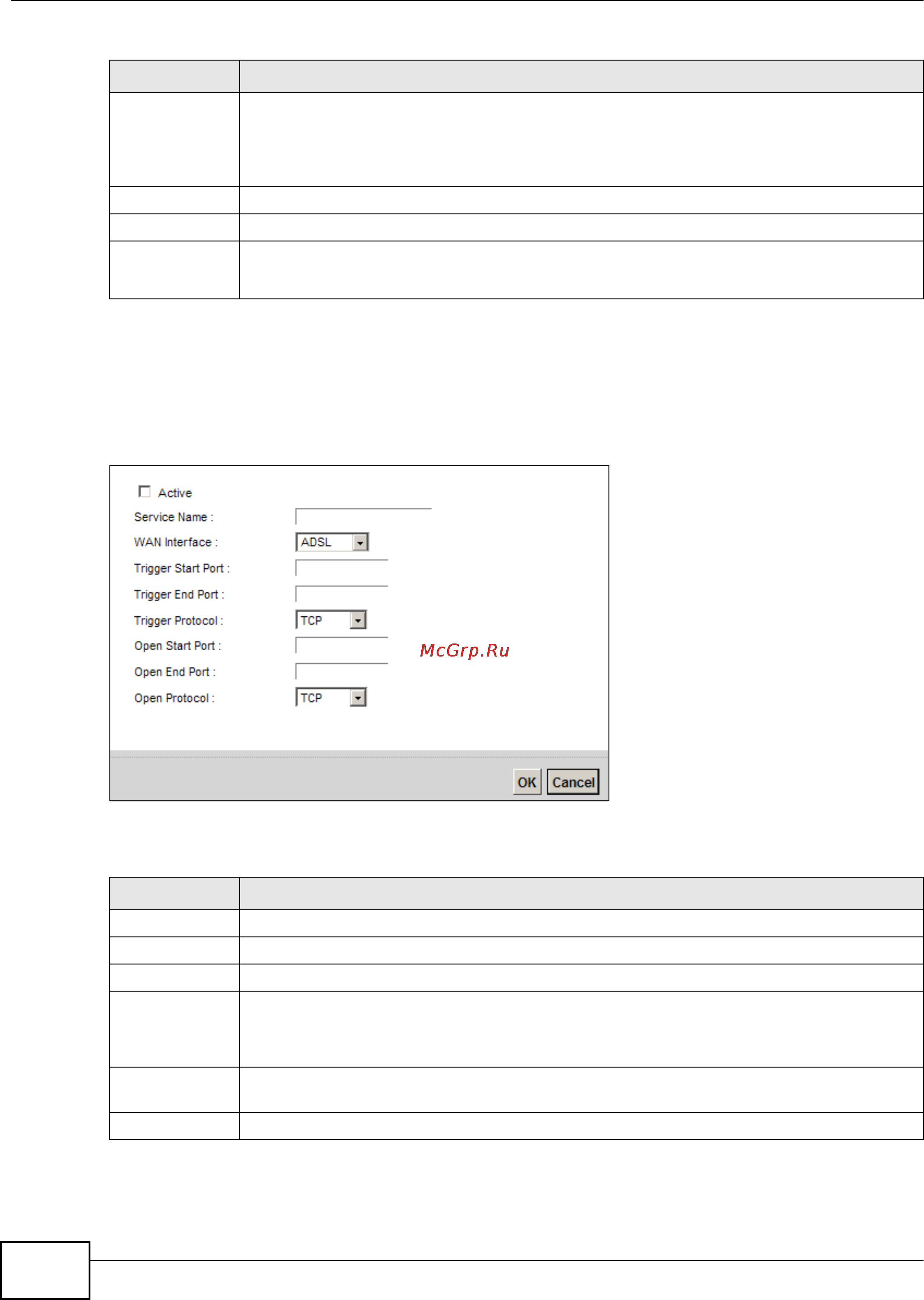

Figure 82 Port Triggering: Add/Edit

The following table describes the labels in this screen.

Open Start Port The open port is a port (or a range of ports) that a server on the WAN uses when it sends

out a particular service. The Device forwards the traffic with this port (or range of ports) to

the client computer on the LAN that requested the service.

This is the first port number that identifies a service.

Open End Port This is the last port number that identifies a service.

Open Proto. This is the open transport layer protocol.

Modify Click the Edit icon to edit this rule.

Click the Delete icon to delete an existing rule.

Table 58 Network Setting > NAT > Port Triggering (continued)

LABEL DESCRIPTION

Table 59 Port Triggering: Configuration Add/Edit

LABEL DESCRIPTION

Active Select the check box to enable this rule.

Service Name Enter a name to identify this rule using keyboard characters (A-Z, a-z, 1-2 and so on).

WAN Interface Select a WAN interface for which you want to configure port triggering rules.

Trigger Start

Port

The trigger port is a port (or a range of ports) that causes (or triggers) the Device to record

the IP address of the LAN computer that sent the traffic to a server on the WAN.

Type a port number or the starting port number in a range of port numbers.

Trigger End

Port

Type a port number or the ending port number in a range of port numbers.

Trigger Protocol Select the transport layer protocol from TCP, UDP, or TCP/UDP.
