Appendix B Setting up Your Computer’s IP Address
VMG1312-B10B / VMG1312-B30B Series User’s Guide
334
•Select Built-in Ethernet from the Show list.
• Click the TCP/IP tab.
3 For dynamically assigned settings, select Using DHCP from the Configure list.

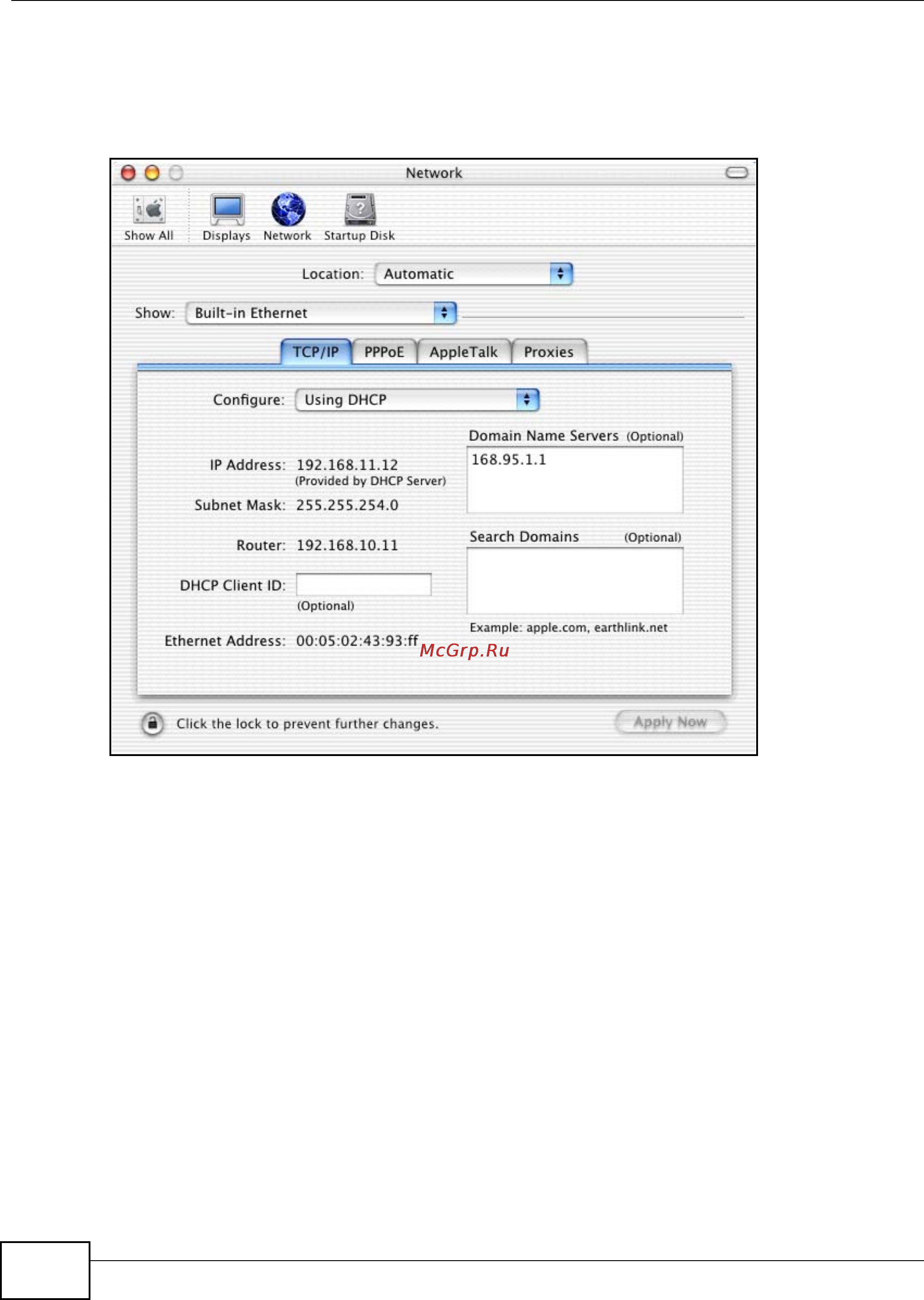

Figure 183 Macintosh OS X: Network
4 For statically assigned settings, do the following:
•From the Configure box, select Manually.
• Type your IP address in the IP Address box.
• Type your subnet mask in the Subnet mask box.
• Type the IP address of your Device in the Router address box.
5 Click Apply Now and close the window.
6 Turn on your Device and restart your computer (if prompted).
Verifying Settings
Check your TCP/IP properties in the Network window.
