Chapter 4 Tutorials
VMG1312-B10B / VMG1312-B30B Series User’s Guide
62
4.11 Using the Print Server Feature

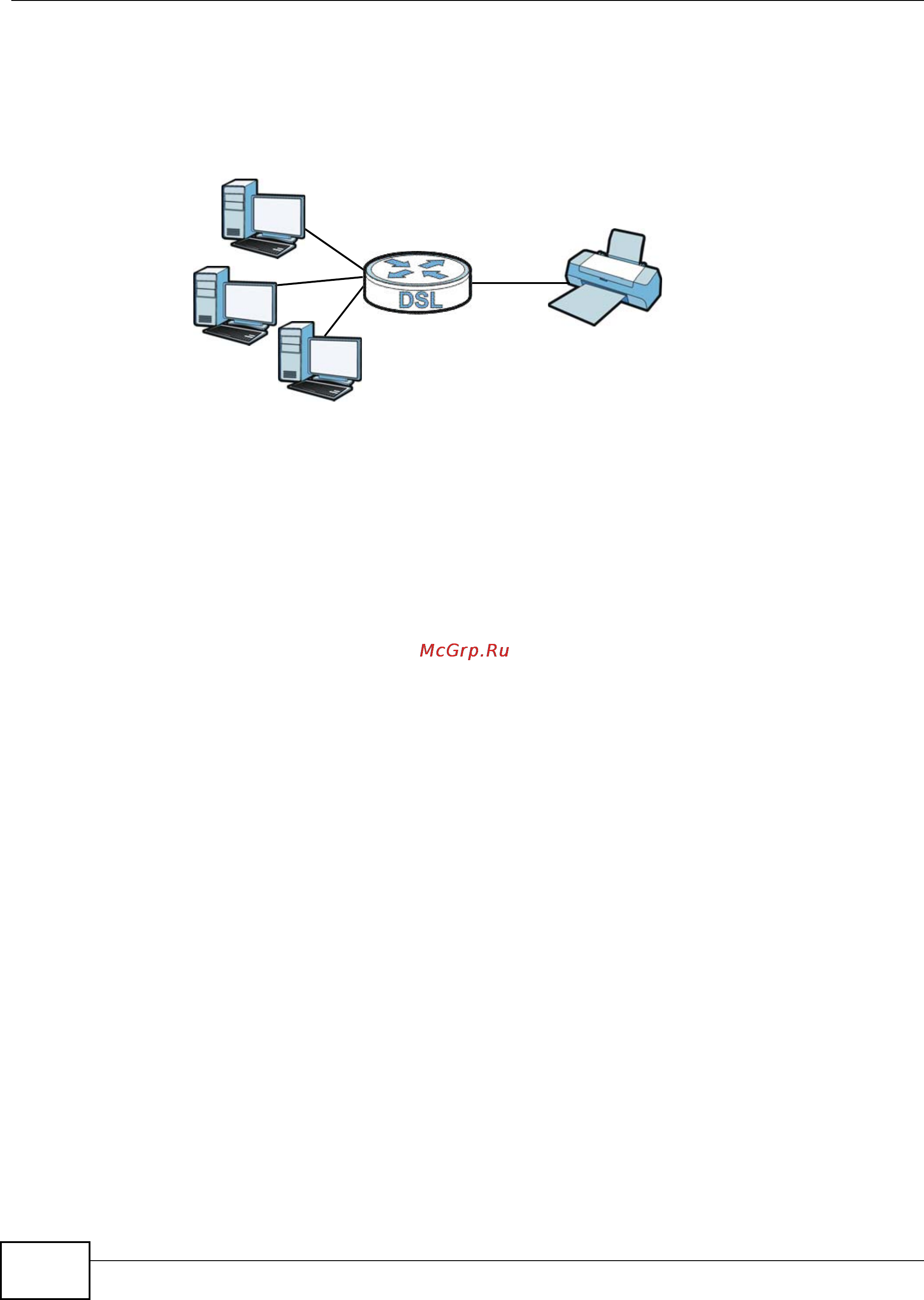

The Device allows you to share a USB printer on your LAN. You can do this by connecting a USB
printer to one of the USB ports on the Device and then adding the printer on the computers
connected to your network.
In this section you can:
• Add a New Printer Using Windows
• Add a New Printer Using Macintosh OS X
Add a New Printer Using Windows
This example shows how to connect a printer to your Device using the Windows 7 operating
system. Some menu items may look different on your operating system.
