Zyxel VMG1312-B10B [348/394] Enable pop up blockers with exceptions
![Zyxel VMG1312-B10B [348/394] Enable pop up blockers with exceptions](/views2/1169620/page348/bg15c.png)
Appendix D Pop-up Windows, JavaScripts and Java Permissions
VMG1312-B10B / VMG1312-B30B Series User’s Guide
348
2 Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This disables any
web pop-up blockers you may have enabled.

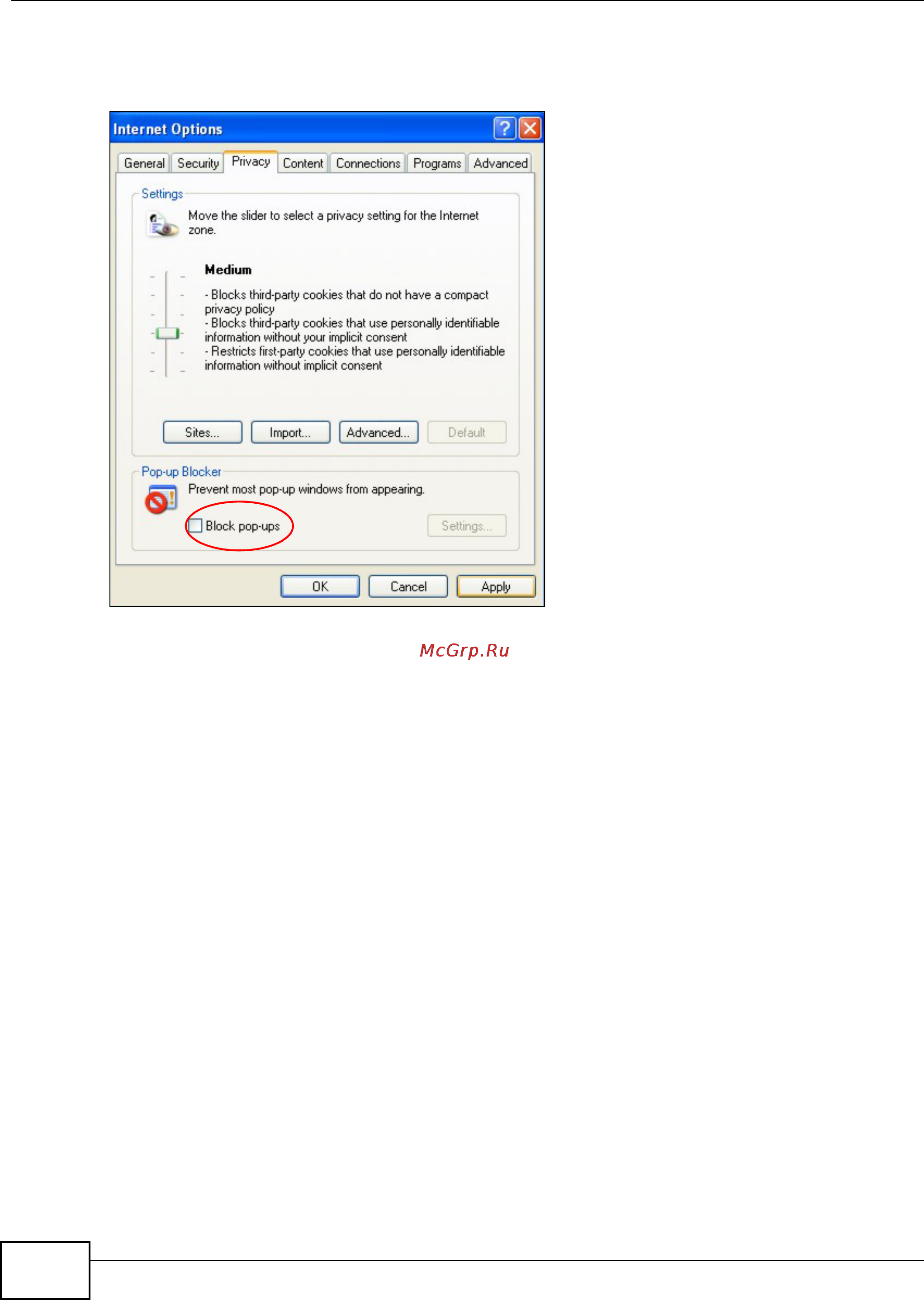

Figure 197 Internet Options: Privacy
3 Click Apply to save this setting.
Enable Pop-up Blockers with Exceptions
Alternatively, if you only want to allow pop-up windows from your device, see the following steps.
1 In Internet Explorer, select Tools, Internet Options and then the Privacy tab.
