Chapter 20 VPN

VMG1312-B10B / VMG1312-B30B Series User’s Guide

252

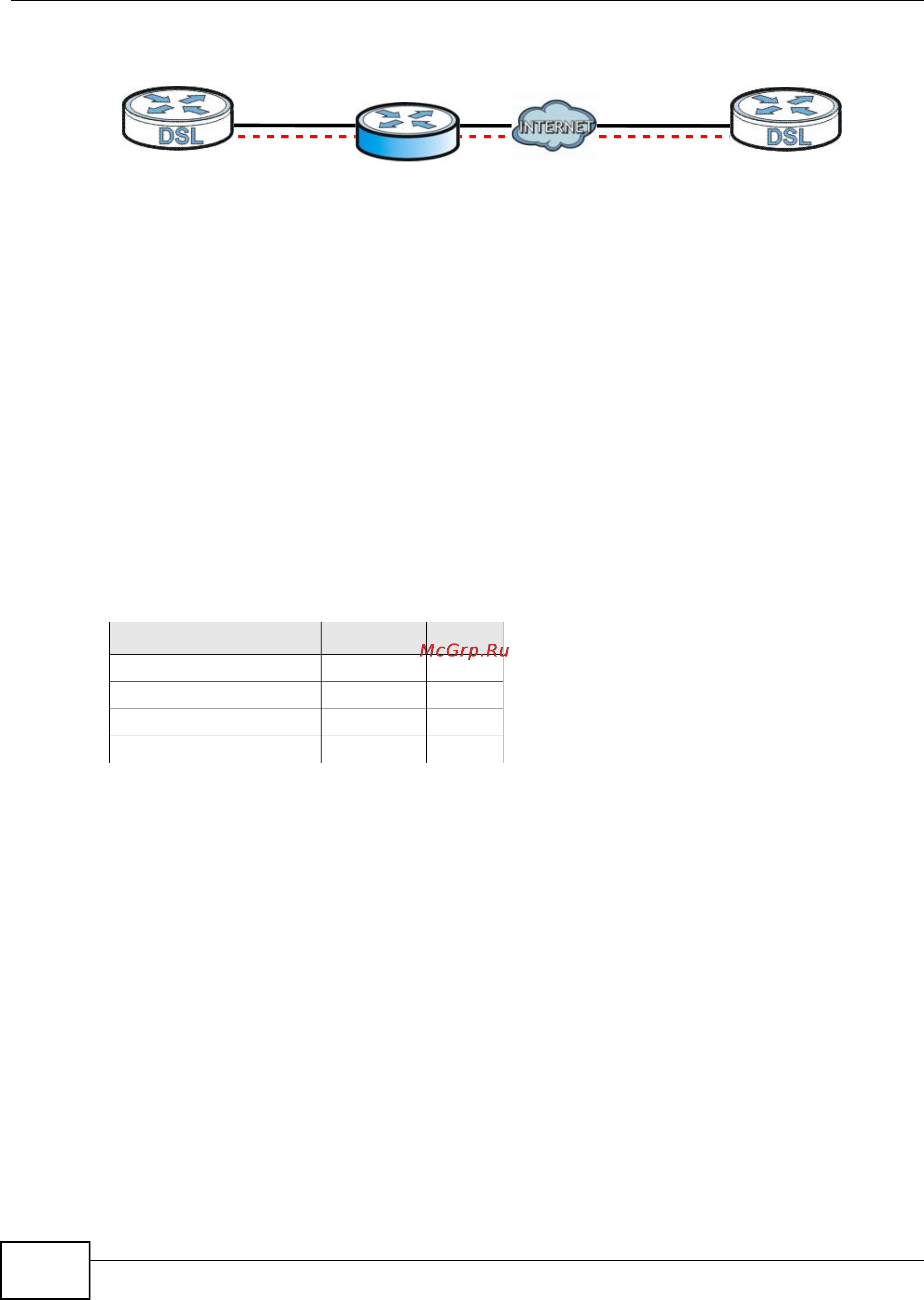

Figure 127 NAT Router Between IPSec Routers

Normally you cannot set up an IKE SA with a NAT router between the two IPSec routers because

the NAT router changes the header of the IPSec packet. NAT traversal solves the problem by adding

a UDP port 500 header to the IPSec packet. The NAT router forwards the IPSec packet with the UDP

port 500 header unchanged. In the above figure, when IPSec router A tries to establish an IKE SA,

IPSec router B checks the UDP port 500 header, and IPSec routers A and B build the IKE SA.

For NAT traversal to work, you must:

• Use ESP security protocol (in either transport or tunnel mode).

•Use IKE keying mode.

• Enable NAT traversal on both IPSec endpoints.

• Set the NAT router to forward UDP port 500 to IPSec router A.

Finally, NAT is compatible with ESP in tunnel mode because integrity checks are performed over the

combination of the "original header plus original payload," which is unchanged by a NAT device. The

compatibility of AH and ESP with NAT in tunnel and transport modes is summarized in the following

table.

Y* - This is supported in the Device if you enable NAT traversal.

20.3.7 Pre-Shared Key

A pre-shared key identifies a communicating party during a phase 1 IKE negotiation (see Section

20.3.3 on page 249 for more on IKE phases). It is called “pre-shared” because you have to share it

with another party before you can communicate with them over a secure connection.

20.3.8 Diffie-Hellman (DH) Key Groups

Diffie-Hellman (DH) is a public-key cryptography protocol that allows two parties to establish a

shared secret over an unsecured communications channel. Diffie-Hellman is used within IKE SA

setup to establish session keys. Upon completion of the Diffie-Hellman exchange, the two peers

have a shared secret, but the IKE SA is not authenticated. For authentication, use pre-shared keys.

Table 95 VPN and NAT

SECURITY PROTOCOL MODE NAT

AH Transport N

AH Tunnel N

ESP Transport Y*

ESP Tunnel Y
