Appendix B Setting up Your Computer’s IP Address
VMG1312-B10B / VMG1312-B30B Series User’s Guide
327
4 Click Manage network connections.

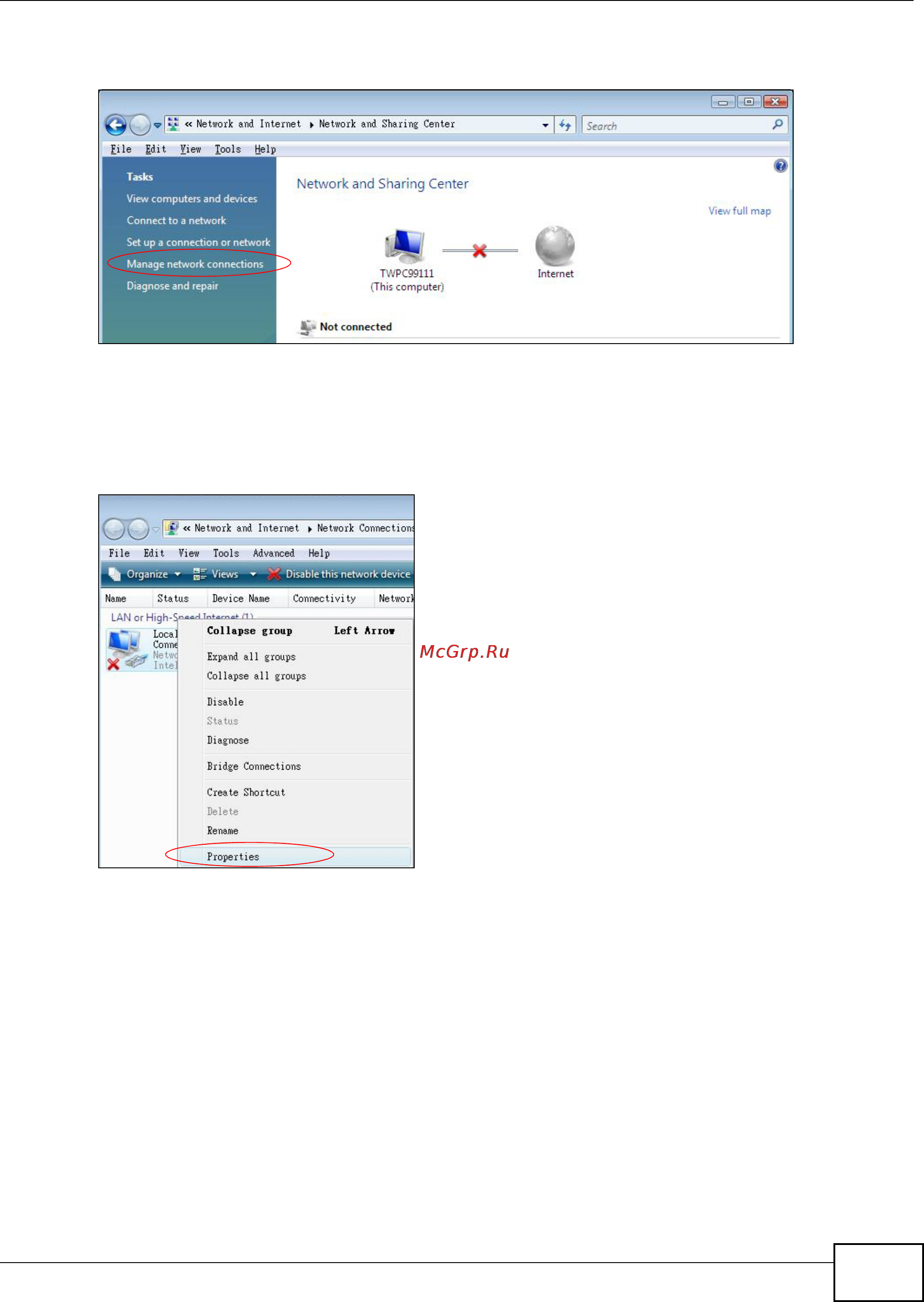

Figure 174 Windows Vista: Network and Sharing Center
5 Right-click Local Area Connection and then click Properties.
Note: During this procedure, click Continue whenever Windows displays a screen saying
that it needs your permission to continue.
Figure 175 Windows Vista: Network and Sharing Center
