Chapter 4 Tutorials
VMG1312-B10B / VMG1312-B30B Series User’s Guide
58
Windows Vista

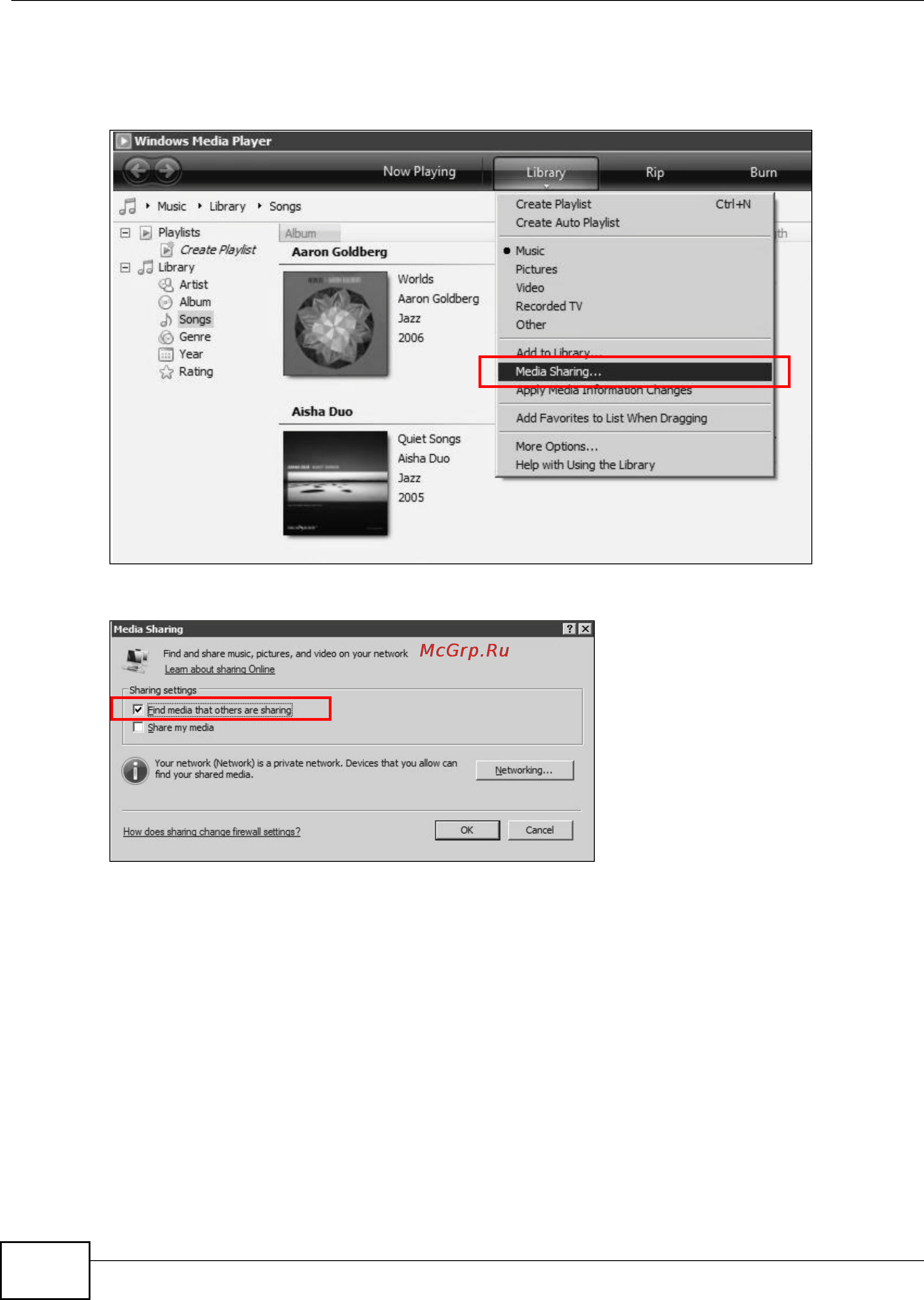

1 Open Windows Media Player and click Library > Media Sharing as follows.
Tutorial: Media Sharing using Windows Vista
2 Check Find media that others are sharing in the following screen and click OK.
Tutorial: Media Sharing using Windows Vista (2)
