Chapter 1 Introducing the Device
VMG1312-B10B / VMG1312-B30B Series User’s Guide
20
1.5 LEDs (Lights)

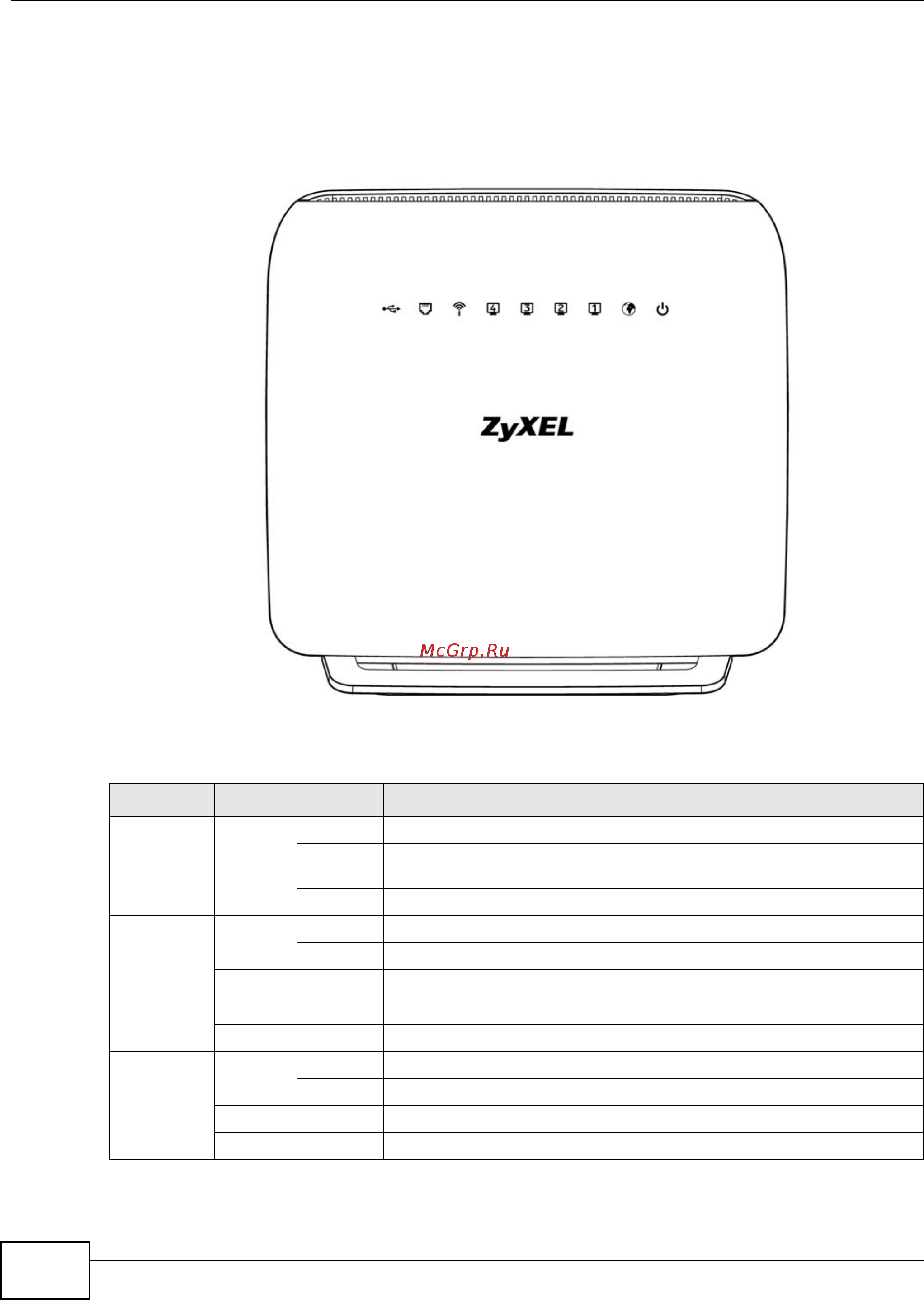

The following graphic displays the labels of the LEDs.
Figure 4 LEDs on the Device
None of the LEDs are on if the Device is not receiving power.
Table 1 LED Descriptions
LED COLOR STATUS DESCRIPTION
USB Green On The Device recognizes a USB connection.
Blinking The Device is sending/receiving data to /from the USB device connected
to it.
Off The Device does not detect a USB connection.
DSL Green On The ADSL line is up.
Blinking The Device is initializing the ADSL line.
Orange On The VDSL line is up.
Blinking The Device is initializing the VDSL line.
Off The DSL line is down.
WLAN/WPS Green On The wireless network is activated.
Blinking The Device is communicating with other wireless clients.
Orange Blinking The Device is setting up a WPS connection.
Off The wireless network is not activated.
