VMG1312-B10B / VMG1312-B30B Series User’s Guide 267
CHAPTER 26
xDSL Statistics
26.1 The xDSL Statistics Screen
Use this screen to view detailed DSL statistics. Click System Monitor > xDSL Statistics to open
the following screen.

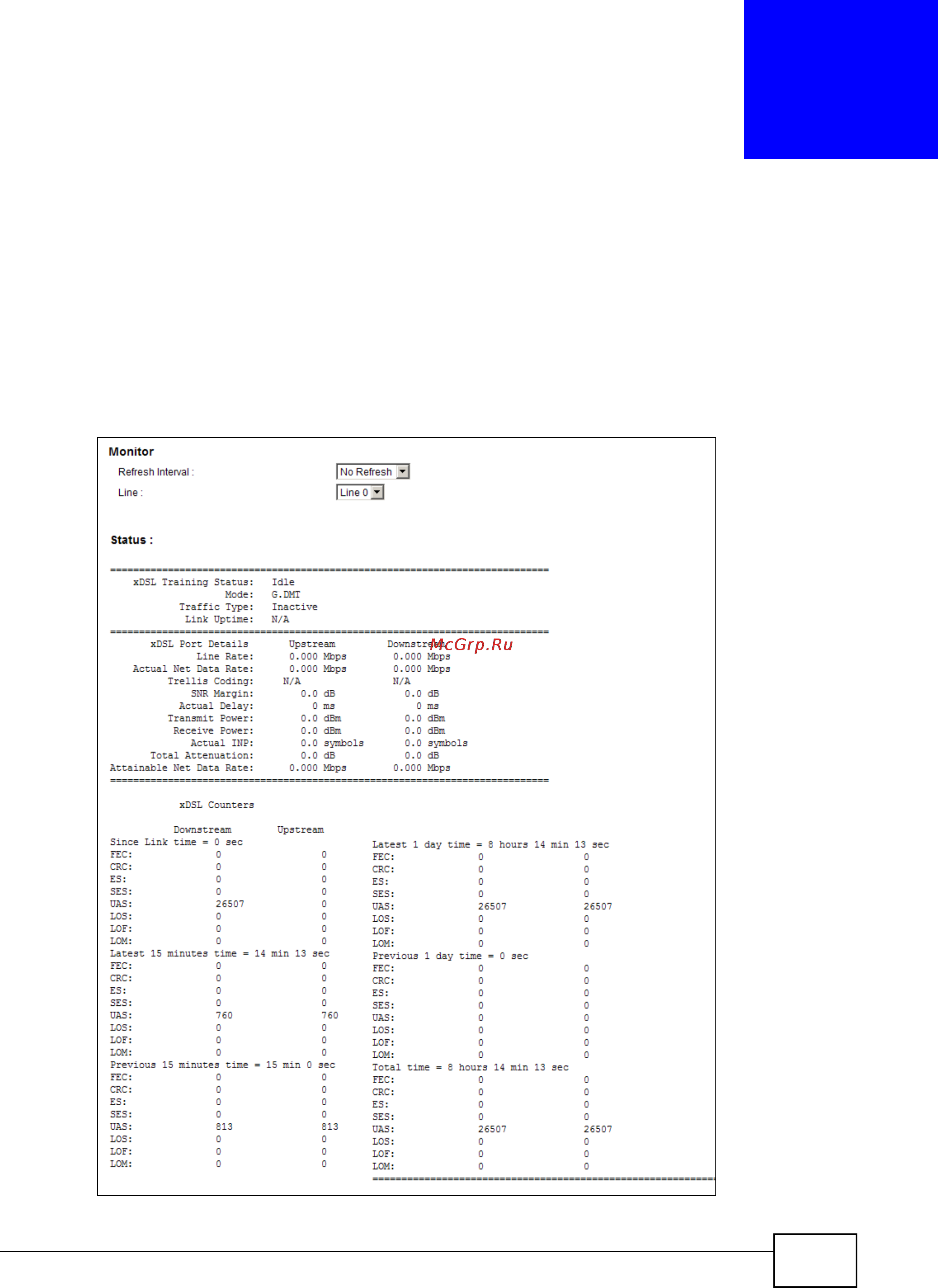

Figure 136 System Monitor > xDSL Statistics
