Chapter 4 Tutorials

VMG1312-B10B / VMG1312-B30B Series User’s Guide

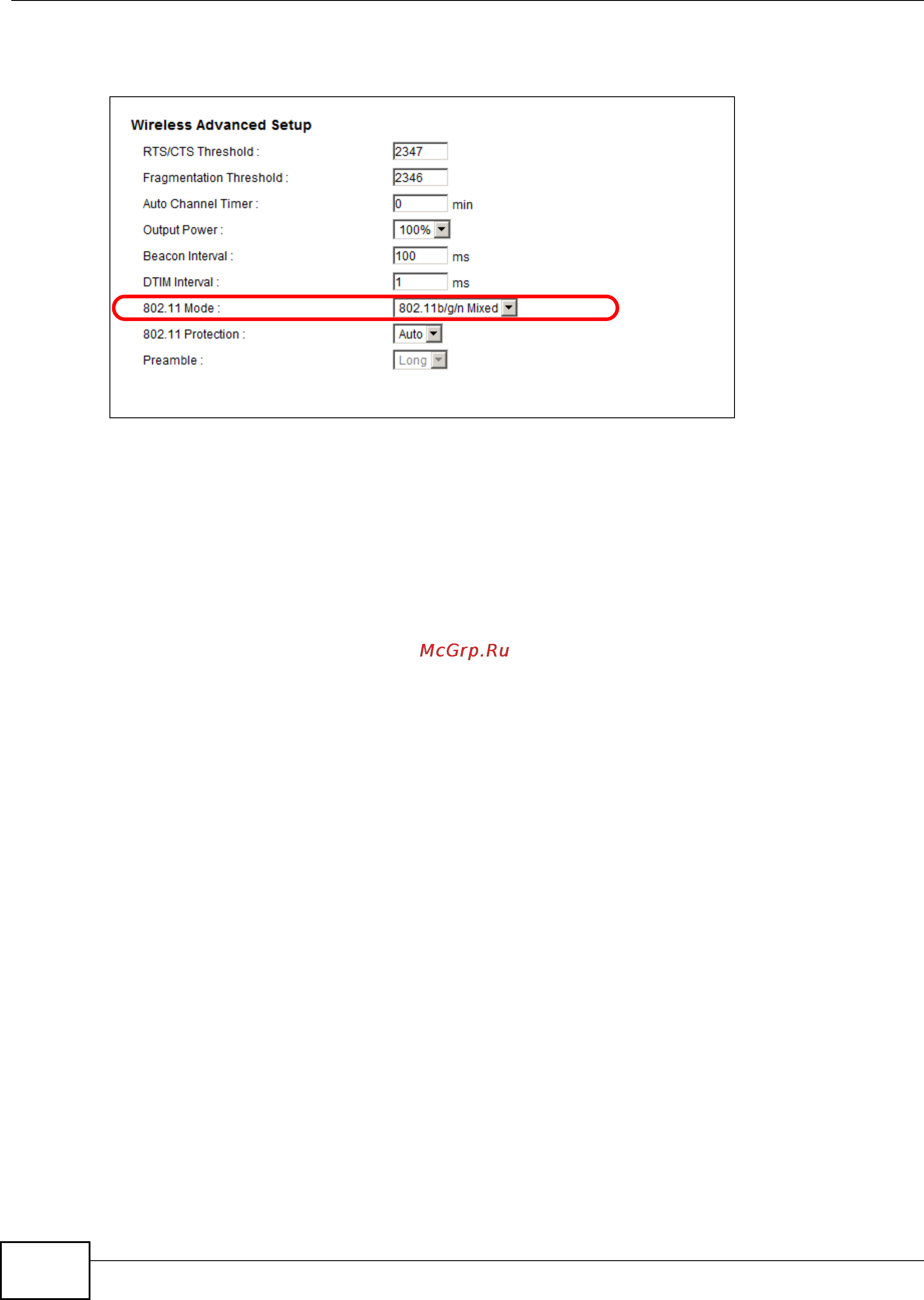

2 Go to the Wireless > Others screen and select 802.11b/g/n Mixed in the 802.11 Mode field.

Click Apply.

Thomas can now use the WPS feature to establish a wireless connection between his notebook and

the Device (see Section 4.3.2 on page 38). He can also use the notebook’s wireless client to search

for the Device (see Section 4.3.3 on page 42).

4.3.2 Using WPS

This section shows you how to set up a wireless network using WPS. It uses the Device as the AP

and ZyXEL NWD210N as the wireless client which connects to the notebook.

Note: The wireless client must be a WPS-aware device (for example, a WPS USB adapter

or PCMCIA card).

There are two WPS methods to set up the wireless client settings:

• Push Button Configuration (PBC) - simply press a button. This is the easier of the two

methods.

• PIN Configuration - configure a Personal Identification Number (PIN) on the Device. A wireless

client must also use the same PIN in order to download the wireless network settings from the

Device.

Push Button Configuration (PBC)

1 Make sure that your Device is turned on and your notebook is within the cover range of the wireless

signal.

2 Make sure that you have installed the wireless client driver and utility in your notebook.

3 In the wireless client utility, go to the WPS setting page. Enable WPS and press the WPS button

(Start or WPS button).
