Chapter 8 Home Networking
VMG1312-B10B / VMG1312-B30B Series User’s Guide
148

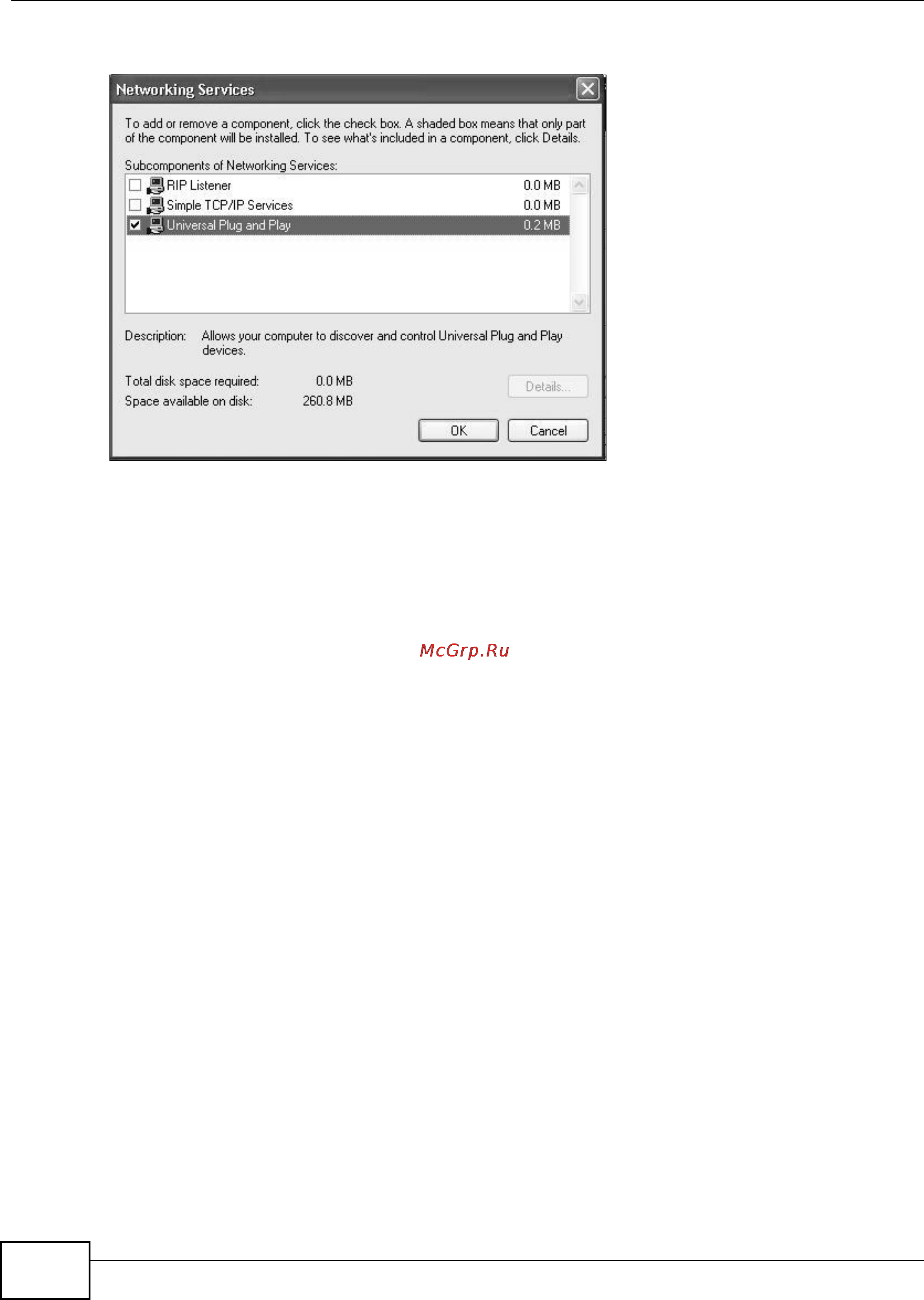

5 In the Networking Services window, select the Universal Plug and Play check box.
Networking Services
6 Click OK to go back to the Windows Optional Networking Component Wizard window and
click Next.
8.6 Using UPnP in Windows XP Example
This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP
installed in Windows XP and UPnP activated on the Device.
Make sure the computer is connected to a LAN port of the Device. Turn on your computer and the
Device.
Auto-discover Your UPnP-enabled Network Device
1 Click Start and Control Panel. Double-click Network Connections. An icon displays under
Internet Gateway.
