VMG1312-B10B / VMG1312-B30B Series User’s Guide 217
CHAPTER 15
Firewall
15.1 Overview
This chapter shows you how to enable and configure the Device’s security settings. Use the firewall
to protect your Device and network from attacks by hackers on the Internet and control access to
it. By default the firewall:
• allows traffic that originates from your LAN computers to go to all other networks.
• blocks traffic that originates on other networks from going to the LAN.
The following figure illustrates the default firewall action. User A can initiate an IM (Instant
Messaging) session from the LAN to the WAN (1). Return traffic for this session is also allowed (2).
However other traffic initiated from the WAN is blocked (3 and 4).

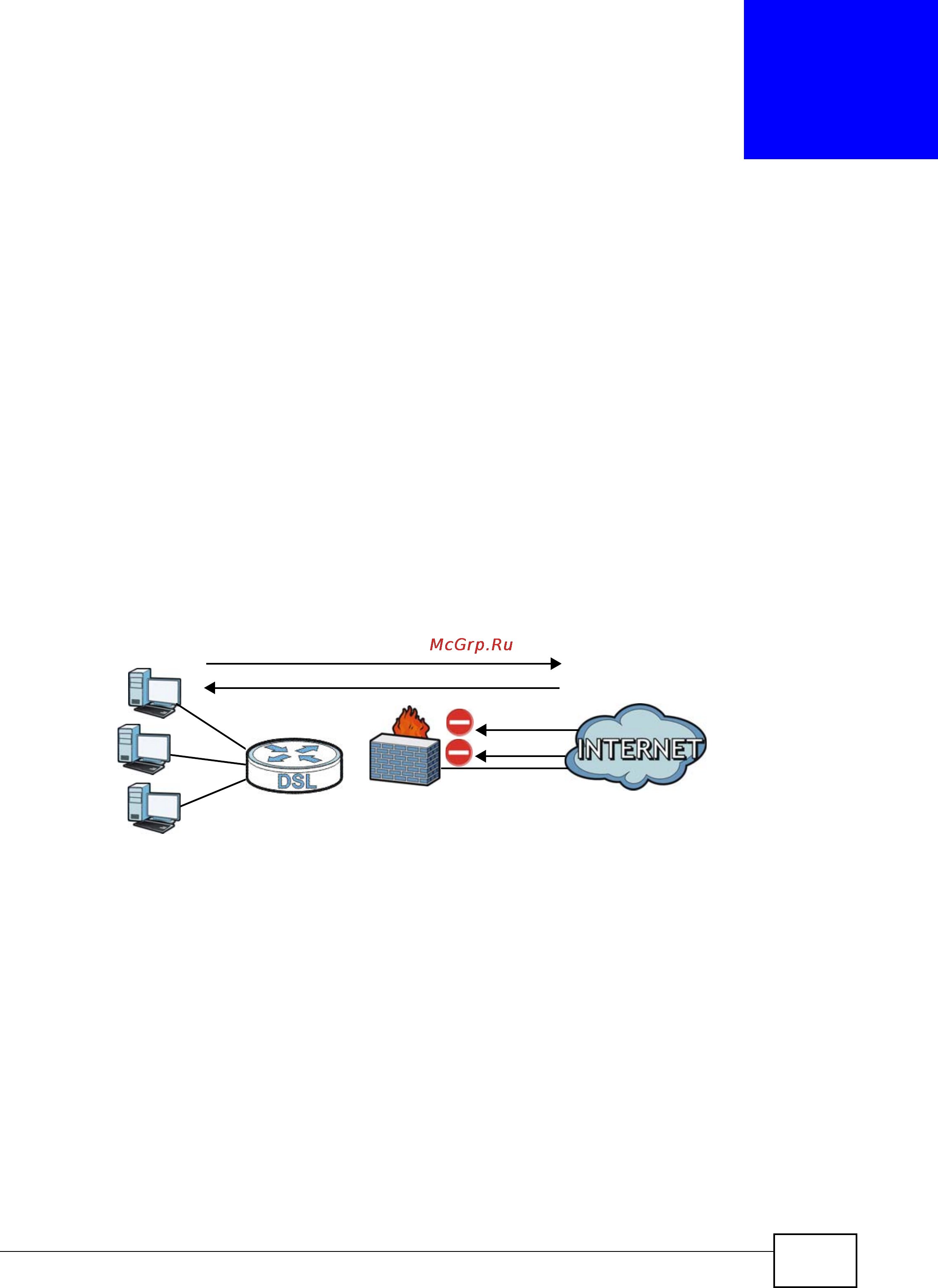

Figure 102 Default Firewall Action
15.1.1 What You Can Do in this Chapter
•Use the General screen to configure the security level of the firewall on the Device (Section 15.2
on page 219).
•Use the Service screen to add or remove predefined Internet services and configure firewall
rules (Section 15.3 on page 219).
•Use the Access Control screen to view and configure incoming/outgoing filtering rules (Section
15.4 on page 221).
•Use the DoS screen to activate protection against Denial of Service (DoS) attacks (.Section 15.5
on page 224).
WAN
LAN
3
4
1
2
A
