Chapter 4 Tutorials
VMG1312-B10B / VMG1312-B30B Series User’s Guide
59
3 In the Library screen, check the left panel. The Windows Media Player should detect the Device.
Tutorial: Media Sharing using Windows Vista (3)
The Device displays as a playlist. Clicking on the category icons in the right panel shows you the
media files in the USB storage device attached to your Device.
Windows 7

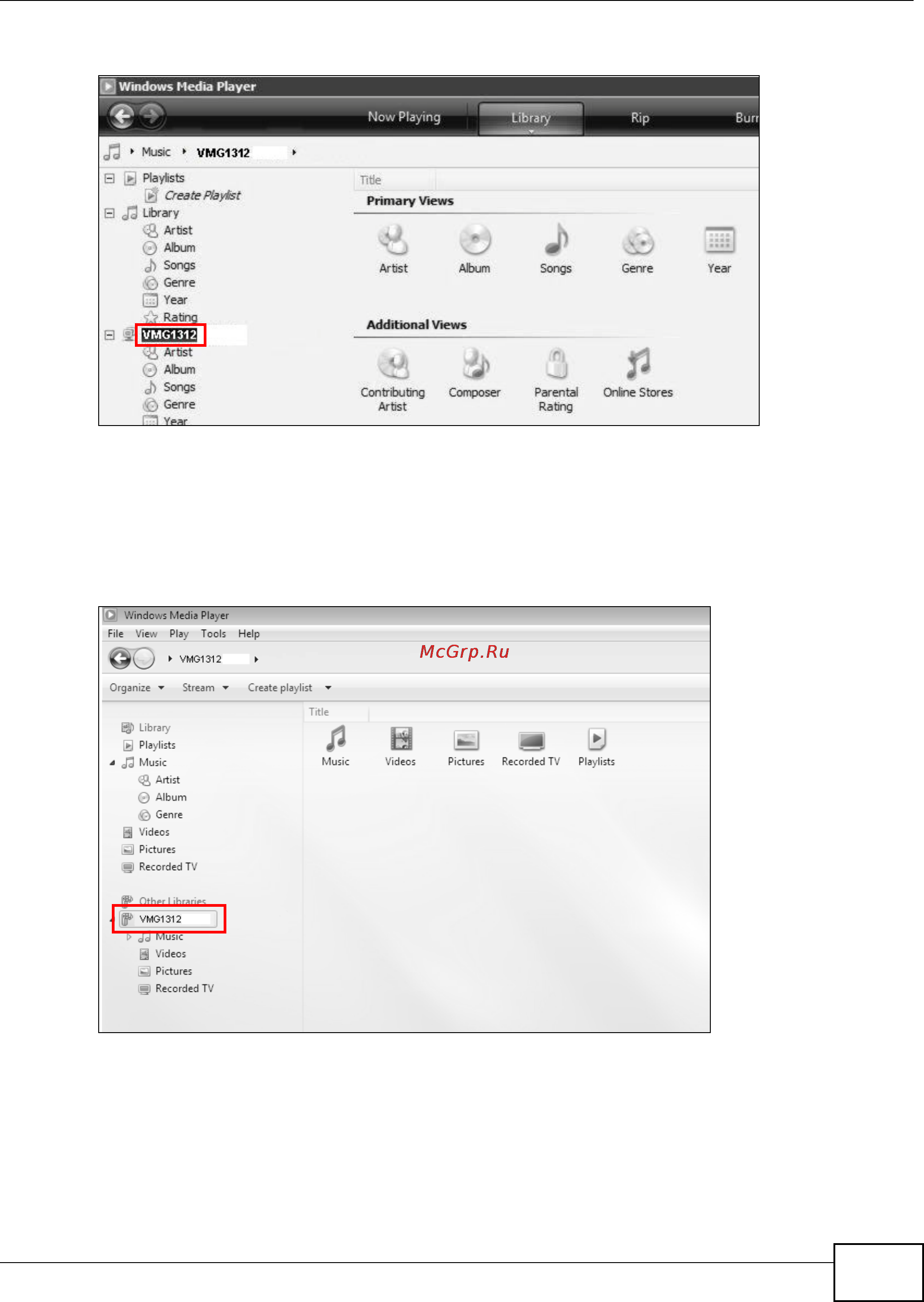

1 Open Windows Media Player. It should automatically detect the Device.
Tutorial: Media Sharing using Windows 7 (1)
If you cannot see the Device in the left panel as shown above, right-click Other Libraries >
Refresh Other Libraries.
