Appendix D Pop-up Windows, JavaScripts and Java Permissions
VMG1312-B10B / VMG1312-B30B Series User’s Guide
352
6 Click OK to close the window.

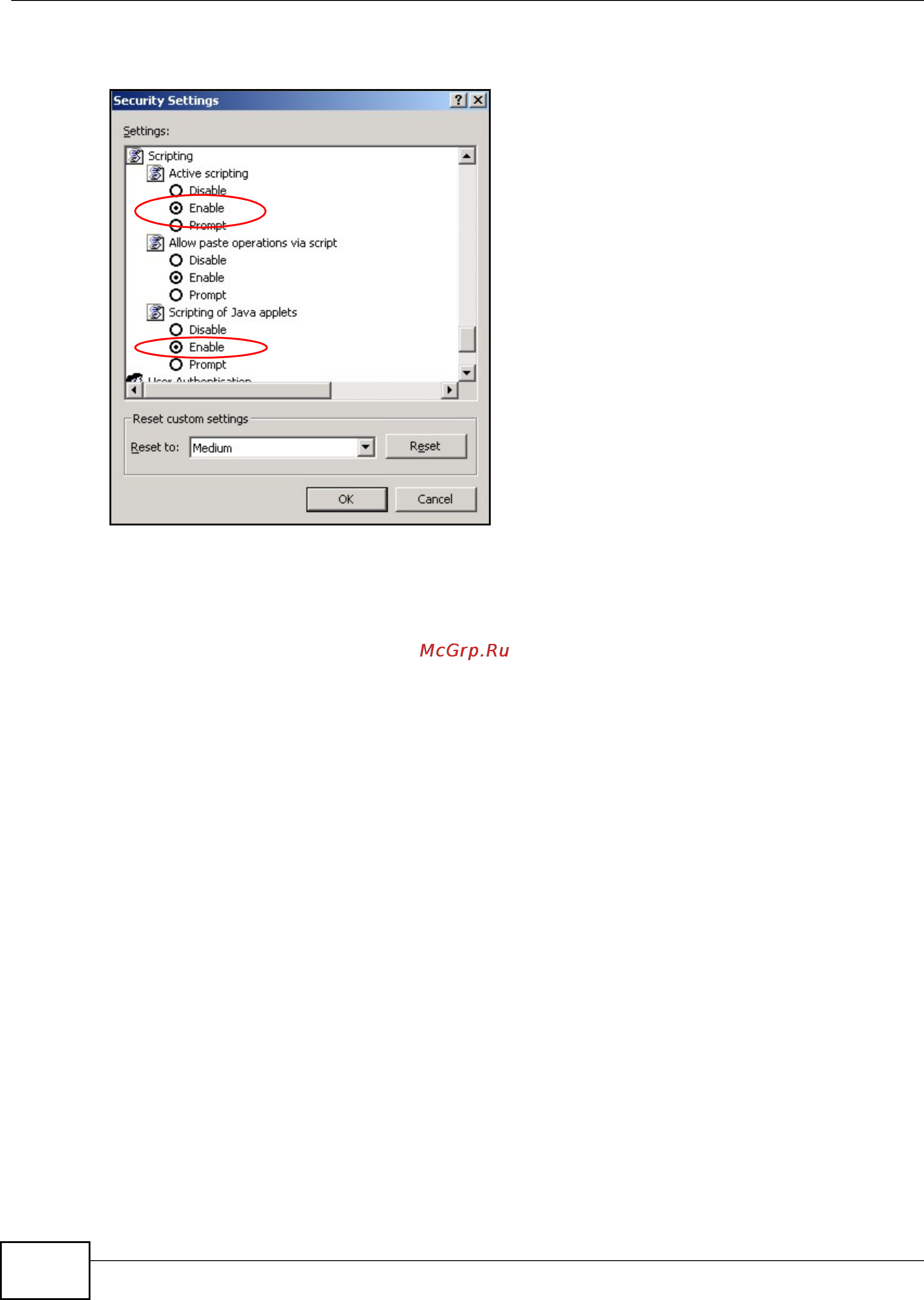

Figure 201 Security Settings - Java Scripting
Java Permissions
1 From Internet Explorer, click Tools, Internet Options and then the Security tab.
2 Click the Custom Level... button.
3 Scroll down to Microsoft VM.
4 Under Java permissions make sure that a safety level is selected.
