Appendix D Pop-up Windows, JavaScripts and Java Permissions
VMG1312-B10B / VMG1312-B30B Series User’s Guide
351
1 In Internet Explorer, click Tools, Internet Options and then the Security tab.

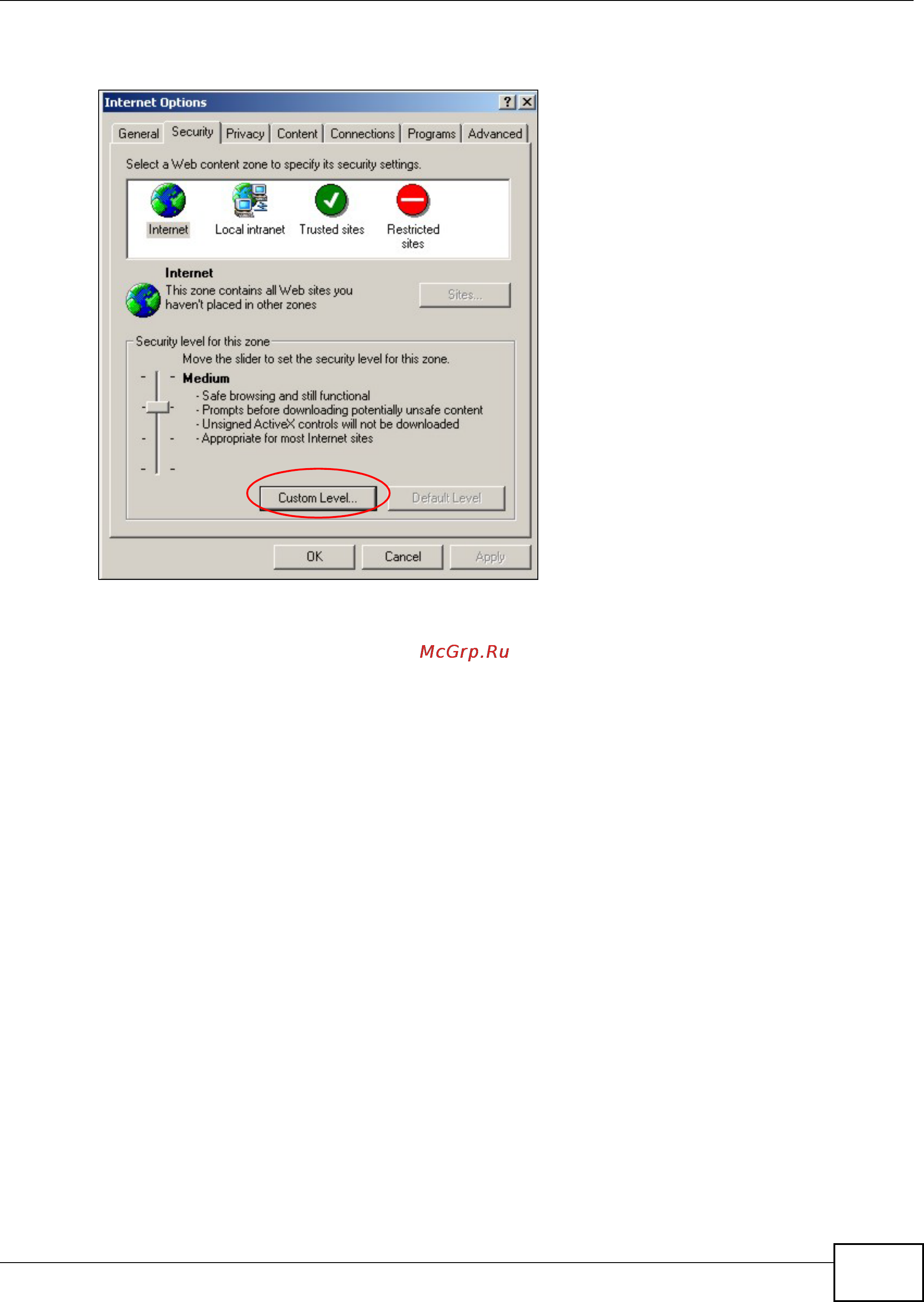

Figure 200 Internet Options: Security
2 Click the Custom Level... button.
3 Scroll down to Scripting.
4 Under Active scripting make sure that Enable is selected (the default).
5 Under Scripting of Java applets make sure that Enable is selected (the default).
