Chapter 11 Network Address Translation (NAT)
VMG1312-B10B / VMG1312-B30B Series User’s Guide
188
11.2.1 Add/Edit Port Forwarding
Click Add new rule in the Port Forwarding screen or click the Edit icon next to an existing rule to
open the following screen.

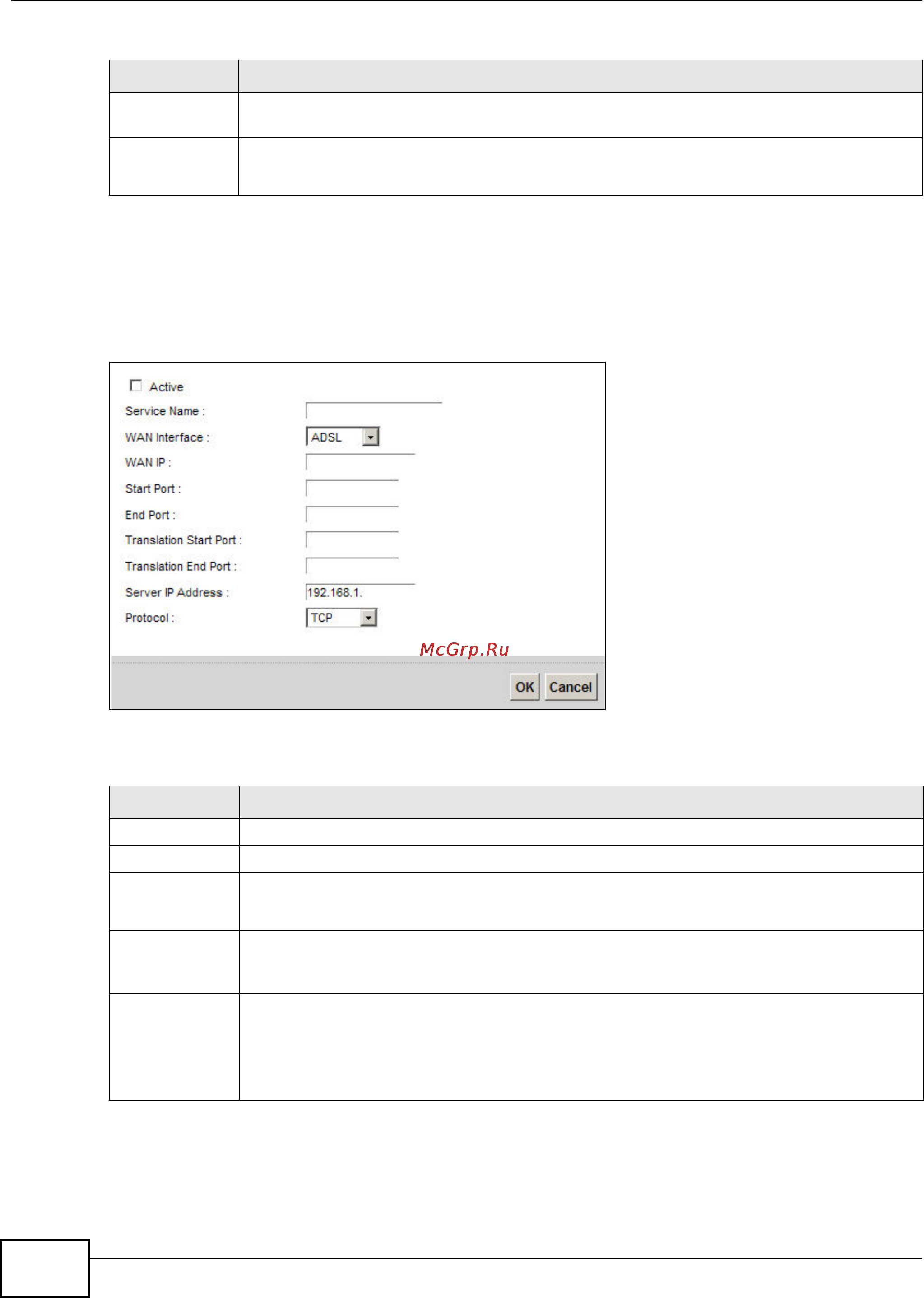

Figure 77 Port Forwarding: Add/Edit
The following table describes the labels in this screen.
Protocol This shows the IP protocol supported by this virtual server, whether it is TCP, UDP, or TCP/
UDP.
Modify Click the Edit icon to edit this rule.
Click the Delete icon to delete an existing rule.
Table 54 Network Setting > NAT > Port Forwarding (continued)
LABEL DESCRIPTION
Table 55 Port Forwarding: Add/Edit
LABEL DESCRIPTION
Active Clear the checkbox to disable the rule. Select the check box to enable it.
Service Name Enter a name to identify this rule using keyboard characters (A-Z, a-z, 1-2 and so on).
WAN Interface Select the WAN interface through which the service is forwarded.
You must have already configured a WAN connection with NAT enabled.
WAN IP Enter the WAN IP address for which the incoming service is destined. If the packet’s
destination IP address doesn’t match the one specified here, the port forwarding rule will
not be applied.
Start Port Enter the original destination port for the packets.
To forward only one port, enter the port number again in the End Port field.
To forward a series of ports, enter the start port number here and the end port number in
the End Port field.
