Chapter 9 Routing
VMG1312-B10B / VMG1312-B30B Series User’s Guide
164
You can use source-based policy forwarding to direct traffic from different users through different
connections or distribute traffic among multiple paths for load sharing.
The Policy Forwarding screen let you view and configure routing policies on the Device. Click
Network Setting > Routing > Policy Forwarding to open the following screen.

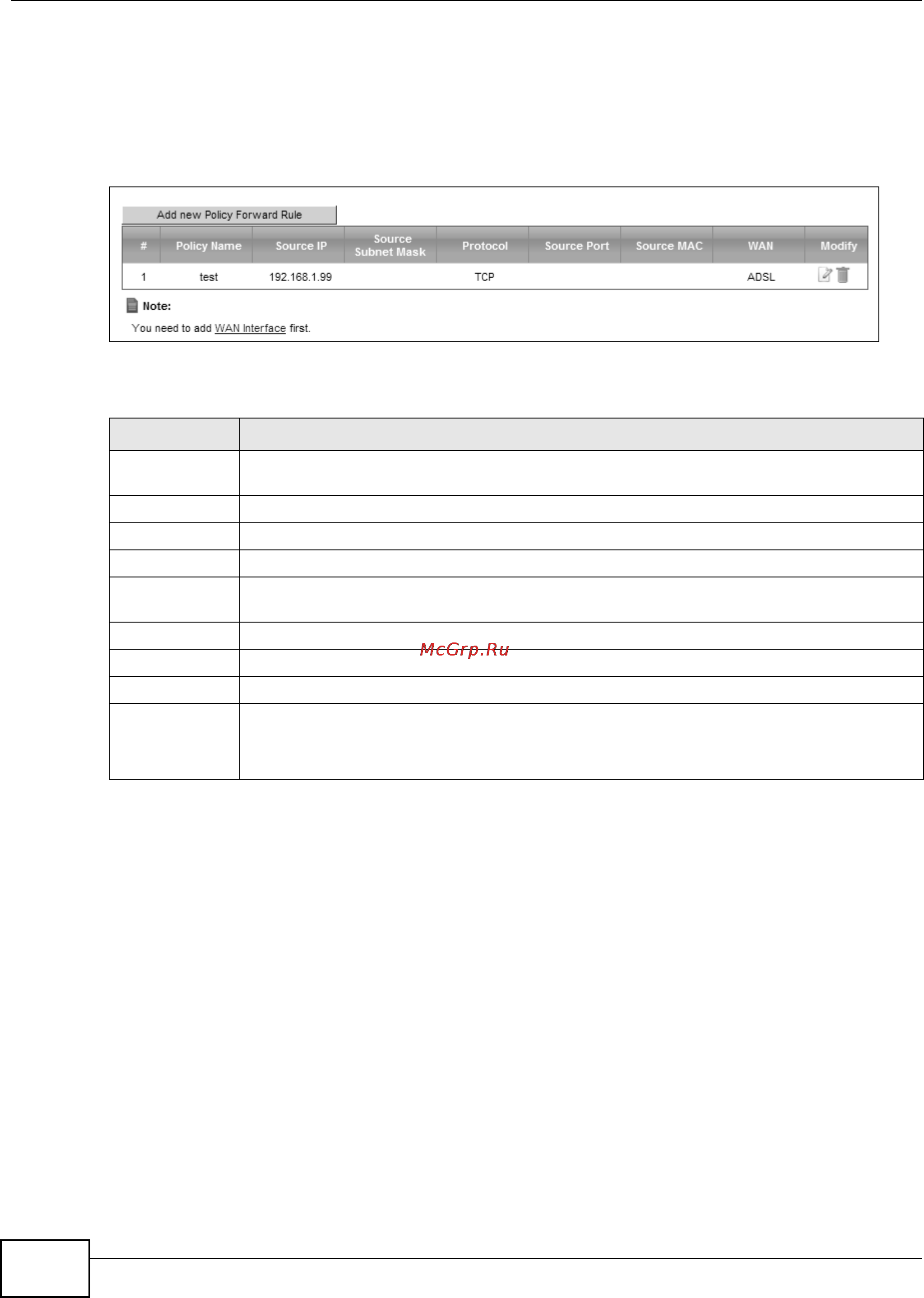

Figure 64 Network Setting > Routing > Policy Forwarding
The following table describes the labels in this screen.
Table 41 Network Setting > Routing >Policy Forwarding
LABEL DESCRIPTION
Add new Policy
Forward Rule
Click this to create a new policy forwarding rule.
# This is the index number of the entry.
Policy Name This is the name of the rule.
Source IP This is the source IP address.
Source Subnet
Mask
his is the source subnet mask address.
Protocol This is the transport layer protocol.
Source Port This is the source port number.
WAN This is the WAN interface through which the traffic is routed.
Modify Click the Edit icon to edit this policy.
Click the Delete icon to remove a policy from the Device. A window displays asking you to
confirm that you want to delete the policy.
