Chapter 8 Home Networking
VMG1312-B10B / VMG1312-B30B Series User’s Guide
143
Use this screen to change your Device’s static DHCP settings. Click Network Setting > Home
Networking > Static DHCP to open the following screen.

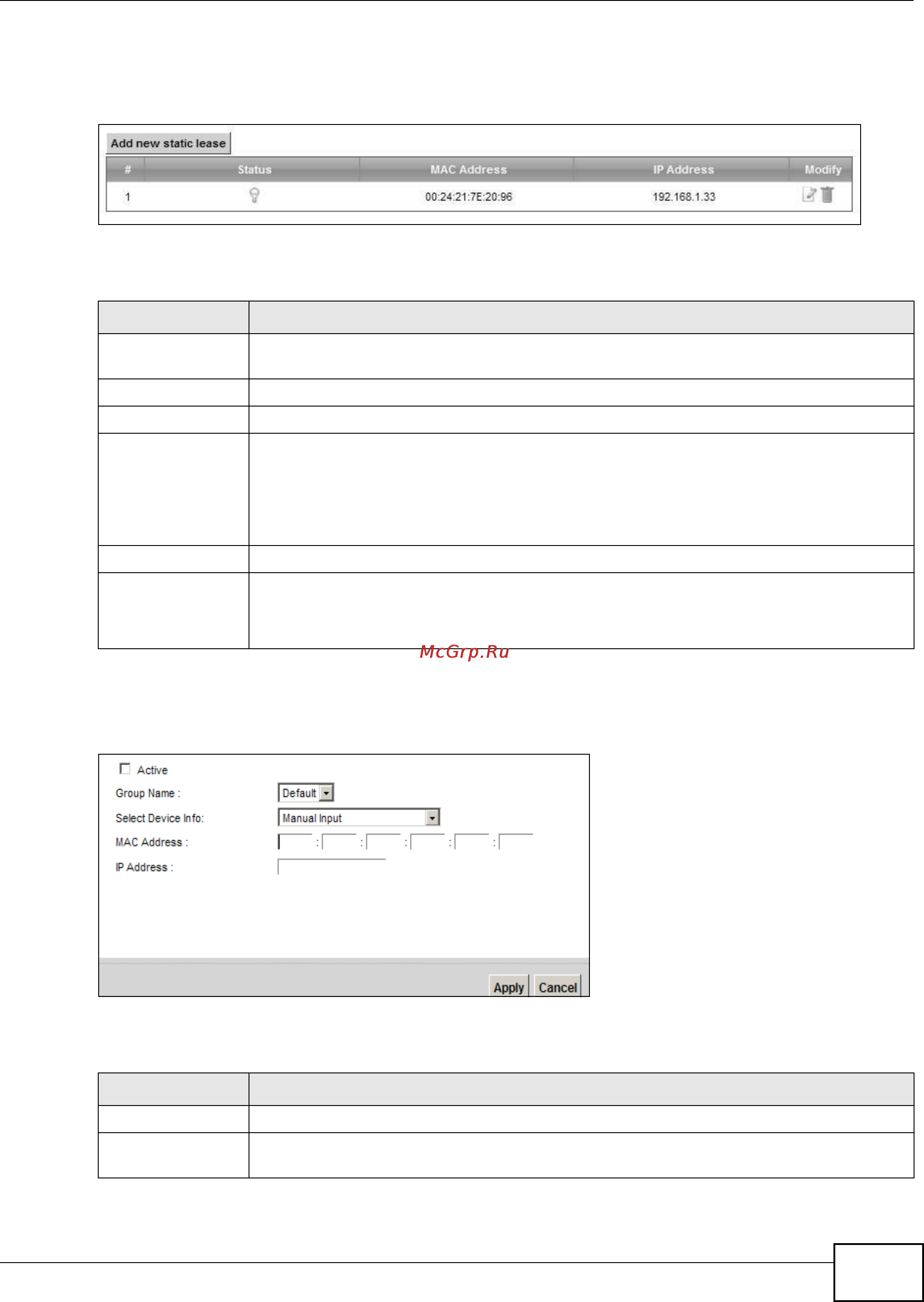

Figure 54 Network Setting > Home Networking > Static DHCP
The following table describes the labels in this screen.
If you click Add new static lease in the Static DHCP screen or the Edit icon next to a static DHCP
entry, the following screen displays.
Figure 55 Static DHCP: Add/Edit
The following table describes the labels in this screen.
Table 33 Network Setting > Home Networking > Static DHCP
LABEL DESCRIPTION
Add new static
lease
Click this to add a new static DHCP entry.
# This is the index number of the entry.
Status This field displays whether the client is connected to the Device.
MAC Address The MAC (Media Access Control) or Ethernet address on a LAN (Local Area Network) is
unique to your computer (six pairs of hexadecimal notation).
A network interface card such as an Ethernet adapter has a hardwired address that is
assigned at the factory. This address follows an industry standard that ensures no other
adapter has a similar address.
IP Address This field displays the IP address relative to the # field listed above.
Modify Click the Edit icon to have the IP address field editable and change it.
Click the Delete icon to delete a static DHCP entry. A window displays asking you to
confirm that you want to delete the selected entry.
Table 34 Static DHCP: Add/Edit
LABEL DESCRIPTION
Active Select this to activate the connection between the client and the Device.
Group Name Select the interface group name for which you want to configure static DHCP settings.
See Chapter 13 on page 205 for how to create a new interface group.
