VMG1312-B10B / VMG1312-B30B Series User’s Guide 279
CHAPTER 31
TR-064
31.1 Overview
This chapter explains how to configure the Device’s TR-064 auto-configuration settings.
31.2 The TR-064 Screen
TR-064 is a LAN-Side DSL CPE Configuration protocol defined by the DSL Forum. TR-064 is built on
top of UPnP. It allows the users to use a TR-064 compliant CPE management application on their
computers from the LAN to discover the CPE and configure user-specific parameters, such as the
username and password.
Click Maintenance > TR-064 to open the following screen.

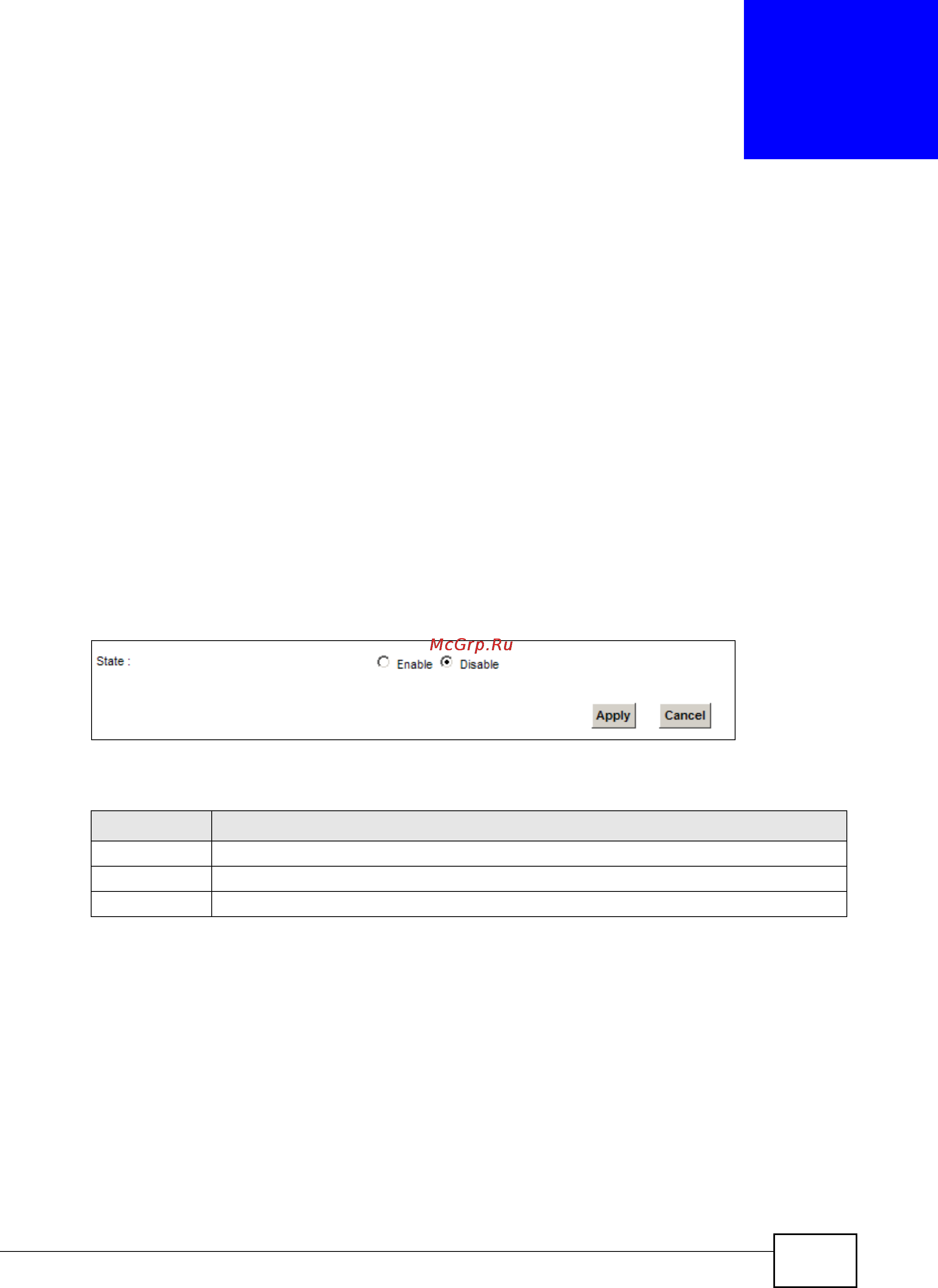

Figure 141 Maintenance > TR-064
The following table describes the fields in this screen.
Table 110 Maintenance > TR-064
LABEL DESCRIPTION
State Select Enable to activate management via TR-064 on the LAN.
Apply Click Apply to save your changes.
Cancel Click Cancel to exit this screen without saving.
