Chapter 4 Tutorials
VMG1312-B10B / VMG1312-B30B Series User’s Guide
43

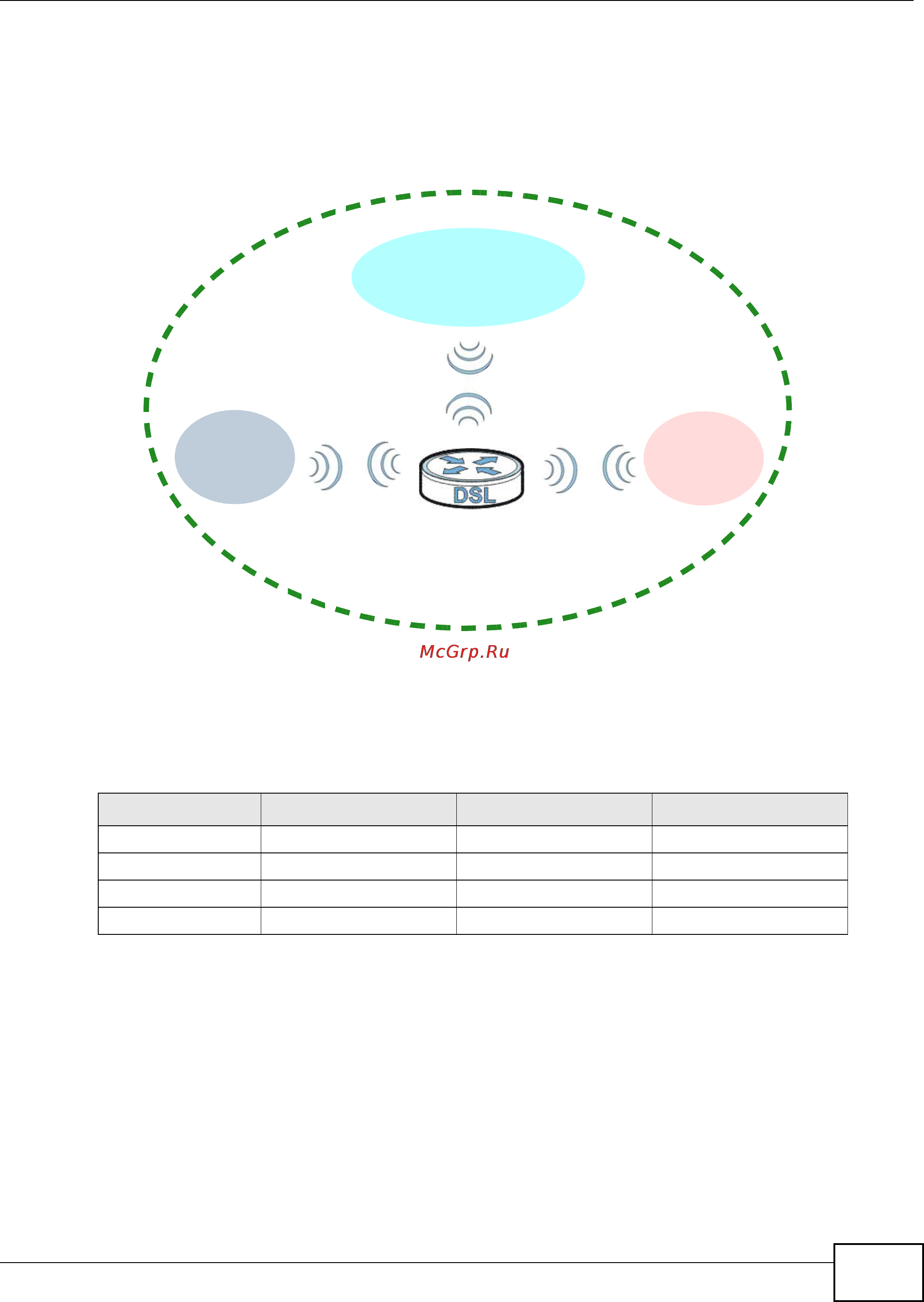

4.4 Setting Up Multiple Wireless Groups
Company A wants to create different wireless network groups for different types of users as shown
in the following figure. Each group has its own SSID and security mode.
• Employees in Company A will use a general Company wireless network group.
• Higher management level and important visitors will use the VIP group.
• Visiting guests will use the Guest group, which has a different SSID and password.
Company A will use the following parameters to set up the wireless network groups.
COMPANY VIP GUEST
SSID Company VIP Guest
Security Level More Secure More Secure More Secure
Security Mode WPA2-PSK WPA2-PSK WPA2-PSK
Pre-Shared Key ForCompanyOnly 123456789 guest123
Company
VIP
Guest
