Chapter 4 Tutorials
VMG1312-B10B / VMG1312-B30B Series User’s Guide
44

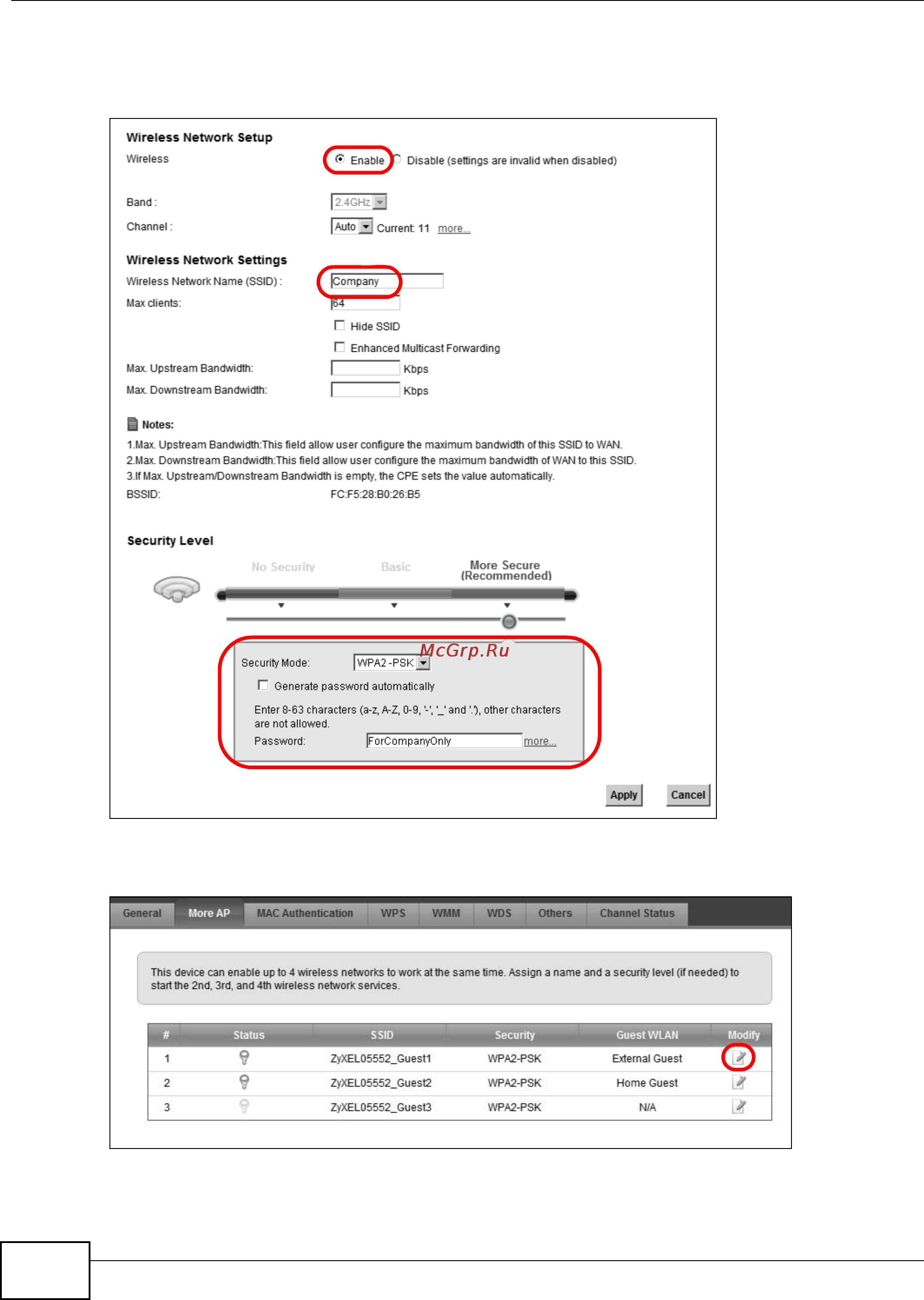

1 Click Network Setting > Wireless to open the General screen. Use this screen to set up the
company’s general wireless network group. Configure the screen using the provided parameters
and click Apply.
2 Click Network Setting > Wireless > More AP to open the following screen. Click the Edit icon to
configure the second wireless network group.
