Chapter 6 Broadband
VMG1312-B10B / VMG1312-B30B Series User’s Guide
88
Note: The actual data rate you obtain varies depending the 3G card you use, the signal
strength to the service provider’s base station, and so on.

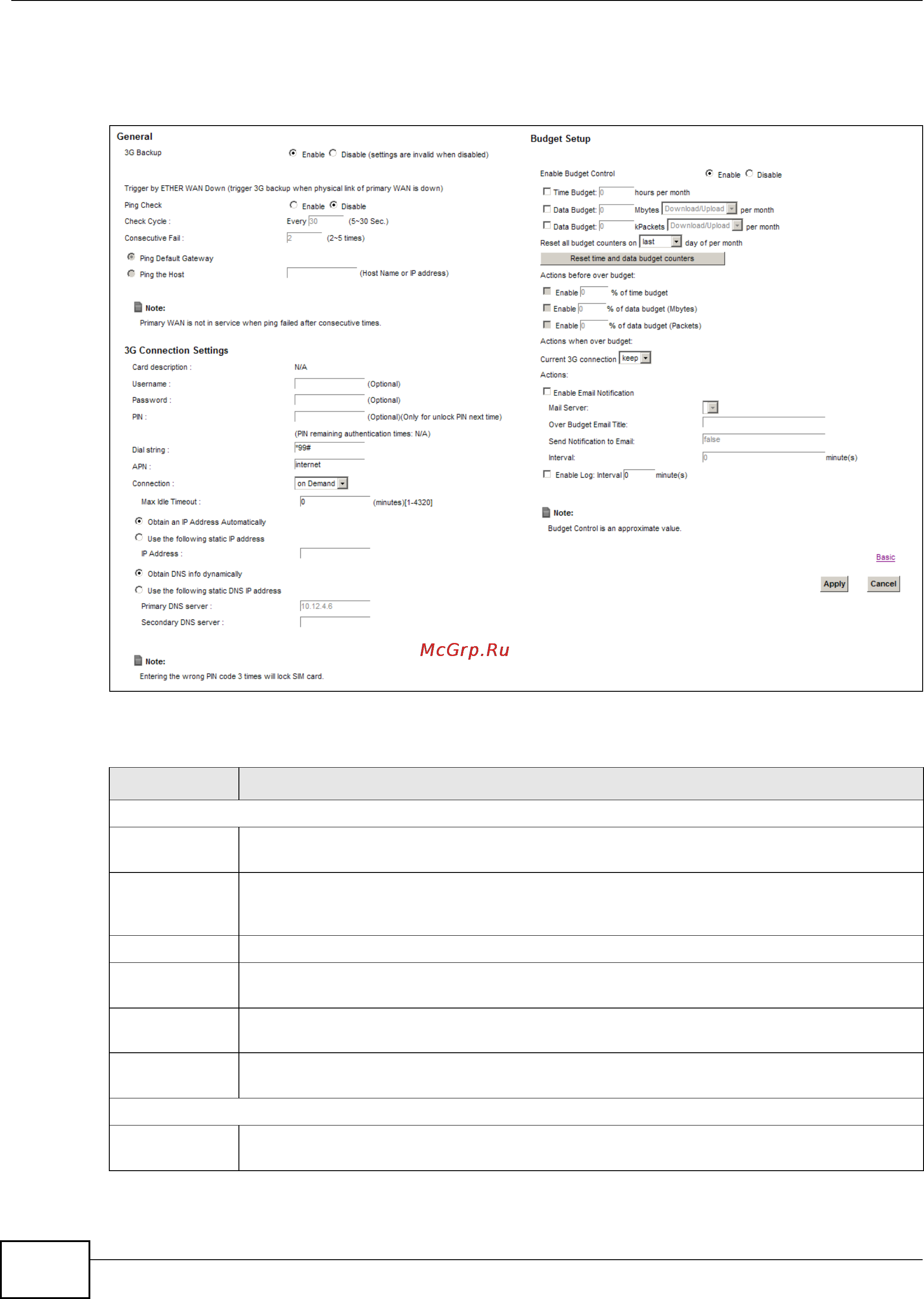

Figure 23 Network Setting > Broadband > 3G Backup
The following table describes the labels in this screen.
Table 11 Network Setting > Broadband > 3G Backup
LABEL DESCRIPTION
General
3G Backup Select Enable to have the Device use the 3G connection as your WAN or a backup when the
wired WAN connection fails.
Ping Check Select Enable if you want the Device to ping check the connection status of your WAN. You
can configure the frequency of the ping check and number of consecutive failures before
triggering 3G backup.
Check Cycle Enter the frequency of the ping check in this field.
Consecutive
Fail
Enter how many consecutive failures are required before 3G backup is triggered.
Ping Default
Gateway
Select this to have the Device ping the WAN interface’s default gateway IP address.
Ping the Host Select this to have the Device ping the particular host name or IP address you typed in this
field.
3G Connection Settings
Card
description
This field displays the manufacturer and model name of your 3G card if you inserted one in
the Device. Otherwise, it displays N/A.
