VMG1312-B10B / VMG1312-B30B Series User’s Guide 281
CHAPTER 32
Time Settings
32.1 Overview
This chapter shows you how to configure system related settings, such as system time, password,
name, the domain name and the inactivity timeout interval.
32.2 The Time Screen
To change your Device’s time and date, click Maintenance > Time. The screen appears as shown.
Use this screen to configure the Device’s time based on your local time zone.

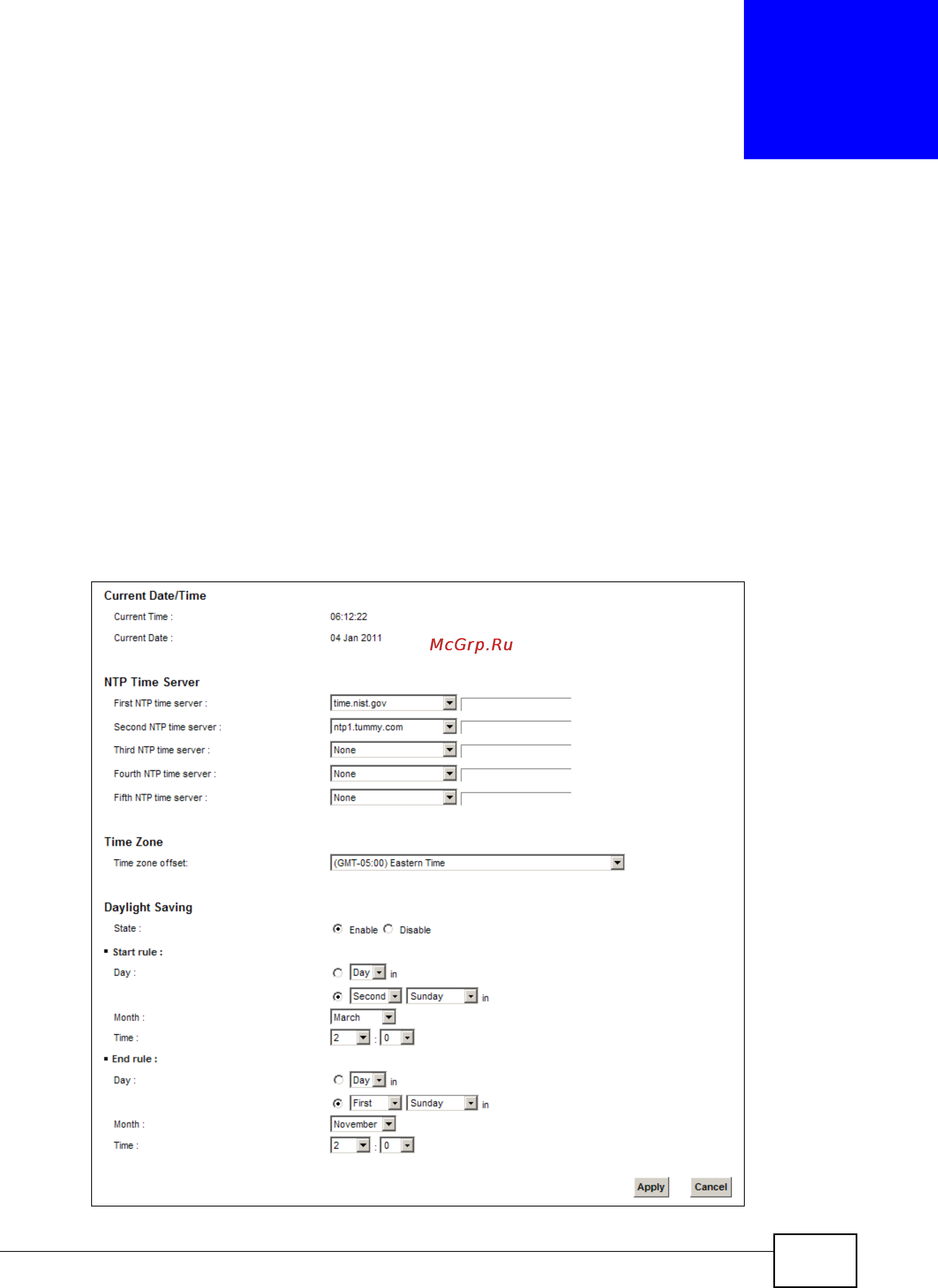

Figure 142 Maintenance > Time Setting
