Chapter 7 Wireless
VMG1312-B10B / VMG1312-B30B Series User’s Guide
107
7.2.3 Basic (802.1X)
Use this screen to configure 802.1X encryption and authentication. Configure your RADIUS server
information and WEP encryption settings. Use this security method if your wireless usernames and
passwords are configured on a RADIUS server.
In order to configure and enable WEP encryption, click Network Setting > Wireless to display the
General screen, then select Basic as the security level and 802.1X as the Security Mode.

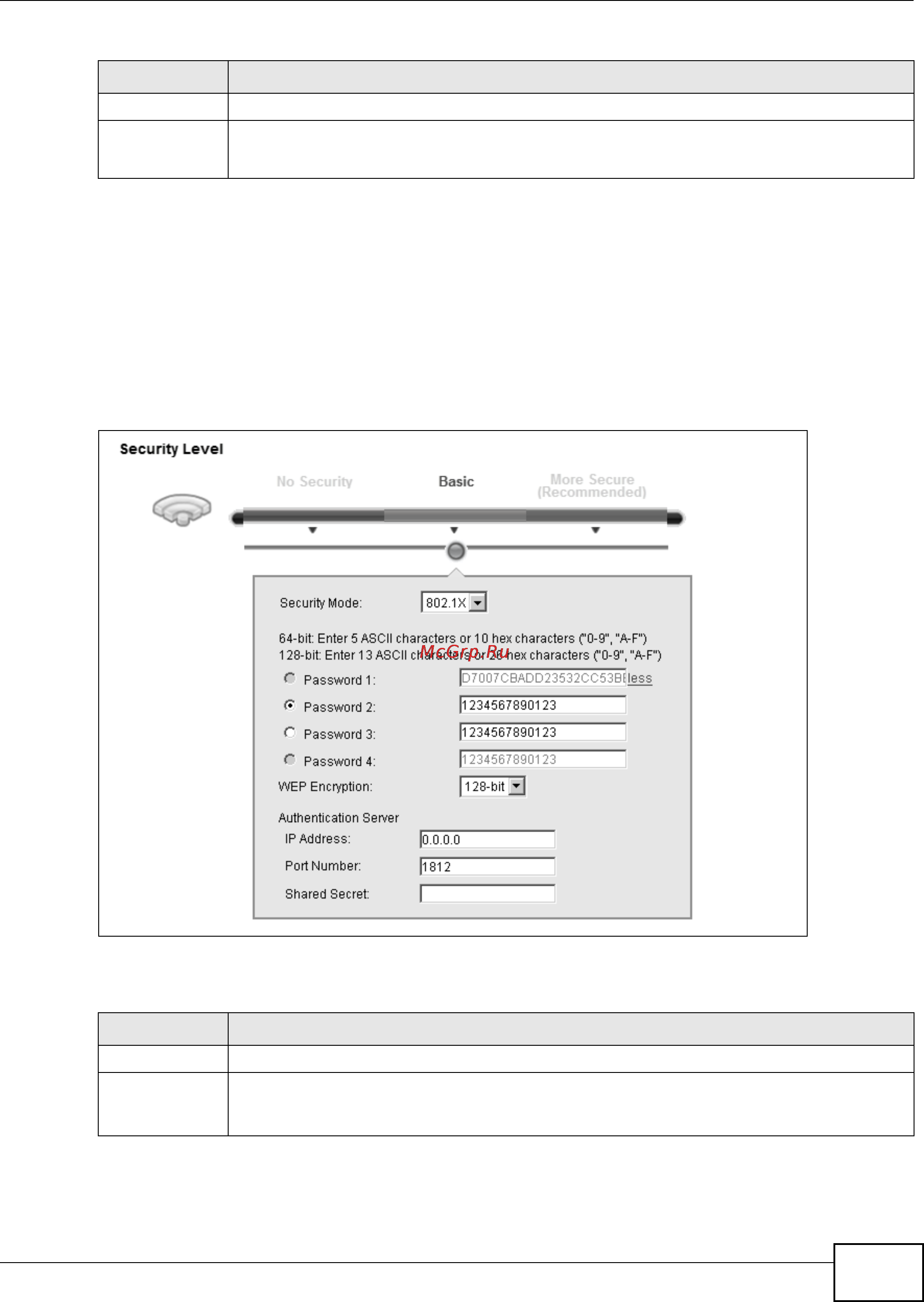

Figure 33 Wireless > General: Basic (802.1X)
The following table describes the labels in this screen.
more.../less Click more... to show more fields in this section. Click less to hide them.
WEP Encryption Select 64-bits or 128-bits.
This dictates the length of the security key that the network is going to use.
Table 18 Wireless > General: Basic (WEP) (continued)
LABEL DESCRIPTION
Table 19 Wireless > General: Basic (802.1X)
LABEL DESCRIPTION
Security Level Select Basic and 802.1X to enable 802.1X data encryption.
Generate
password
automatically
Select this option to have the Device automatically generate a password. The password field
will not be configurable when you select this option.
