Chapter 19 Certificates
VMG1312-B10B / VMG1312-B30B Series User’s Guide
236

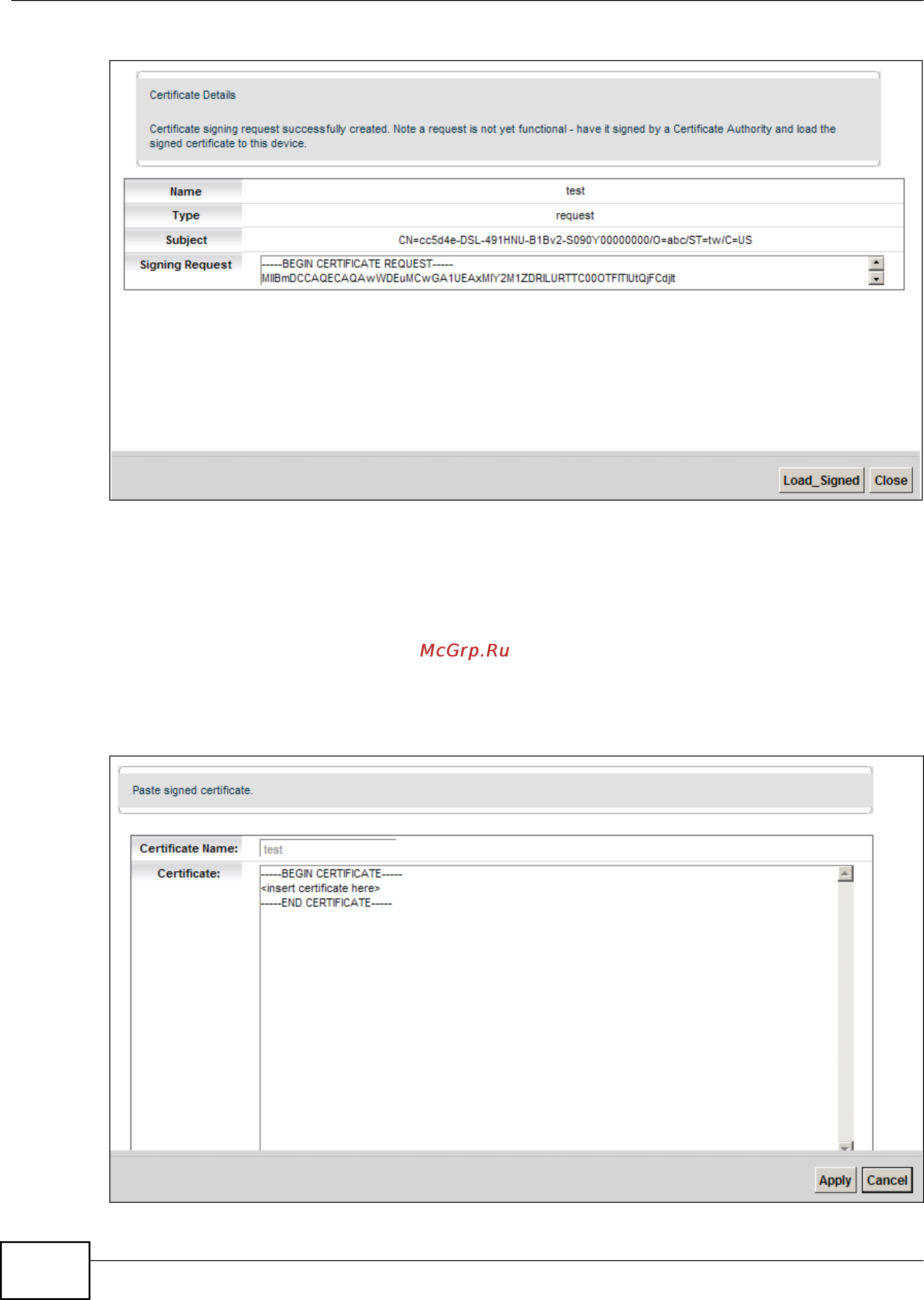

Figure 116 Certificate Request Created
19.3.2 Load Signed Certificate
After you create a certificate request and have it signed by a Certificate Authority, in the Local
Certificates screen click the certificate request’s Load Signed icon to import the signed certificate
into the Device.
Note: You must remove any spaces from the certificate’s filename before you can import
it.
Figure 117 Load Signed Certificate
