Appendix D Pop-up Windows, JavaScripts and Java Permissions
VMG1312-B10B / VMG1312-B30B Series User’s Guide
354
3 Click OK to close the window.

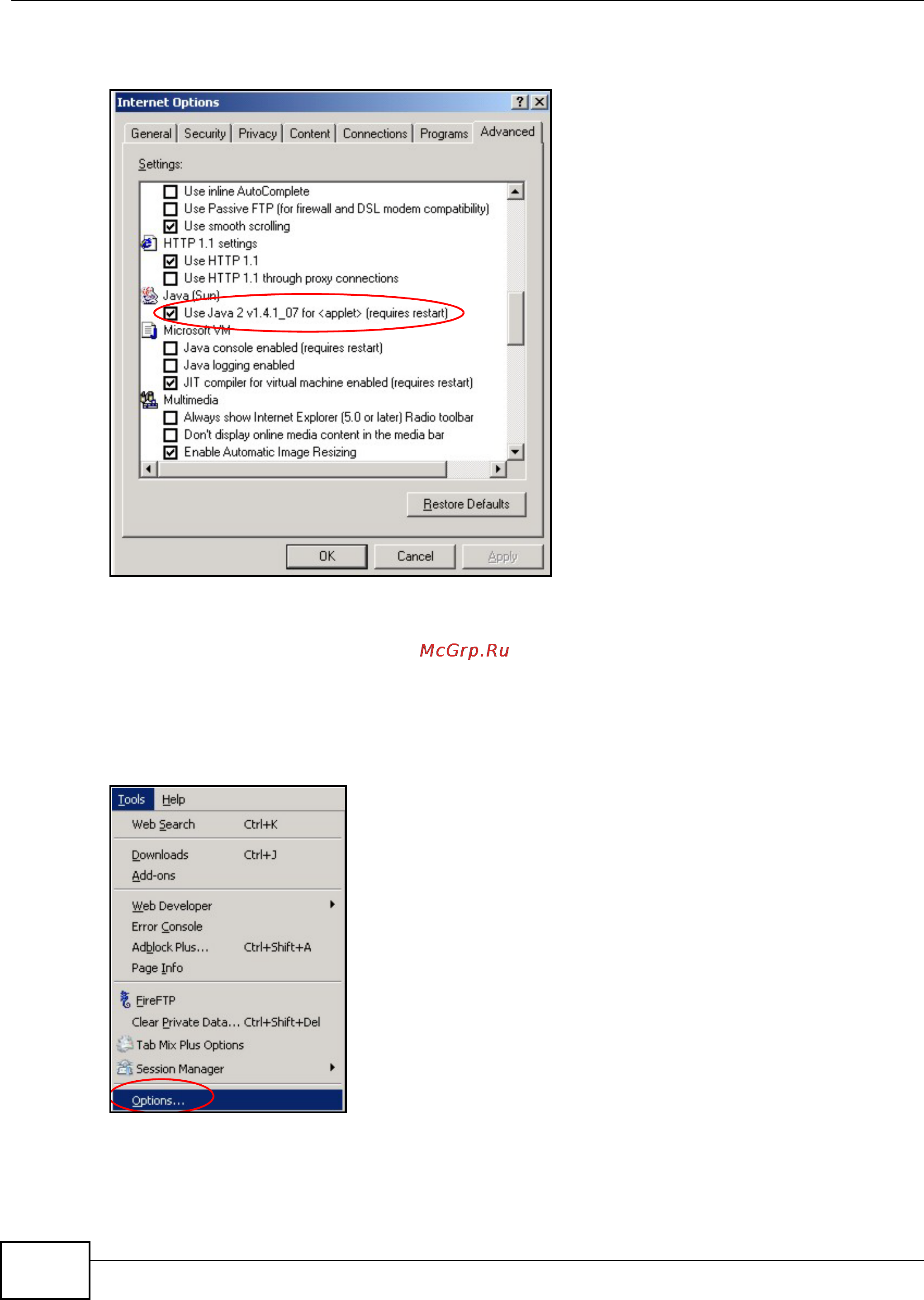

Figure 203 Java (Sun)
Mozilla Firefox
Mozilla Firefox 2.0 screens are used here. Screens for other versions may vary.
You can enable Java, Javascripts and pop-ups in one screen. Click Tools, then click Options in the
screen that appears.
Figure 204 Mozilla Firefox: Tools > Options
