Chapter 10 Quality of Service (QoS)

VMG1312-B10B / VMG1312-B30B Series User’s Guide

179

10.7 The QoS Monitor Screen

To view the Device’s QoS packet statistics, click Network Setting > QoS > Monitor. The screen

appears as shown.

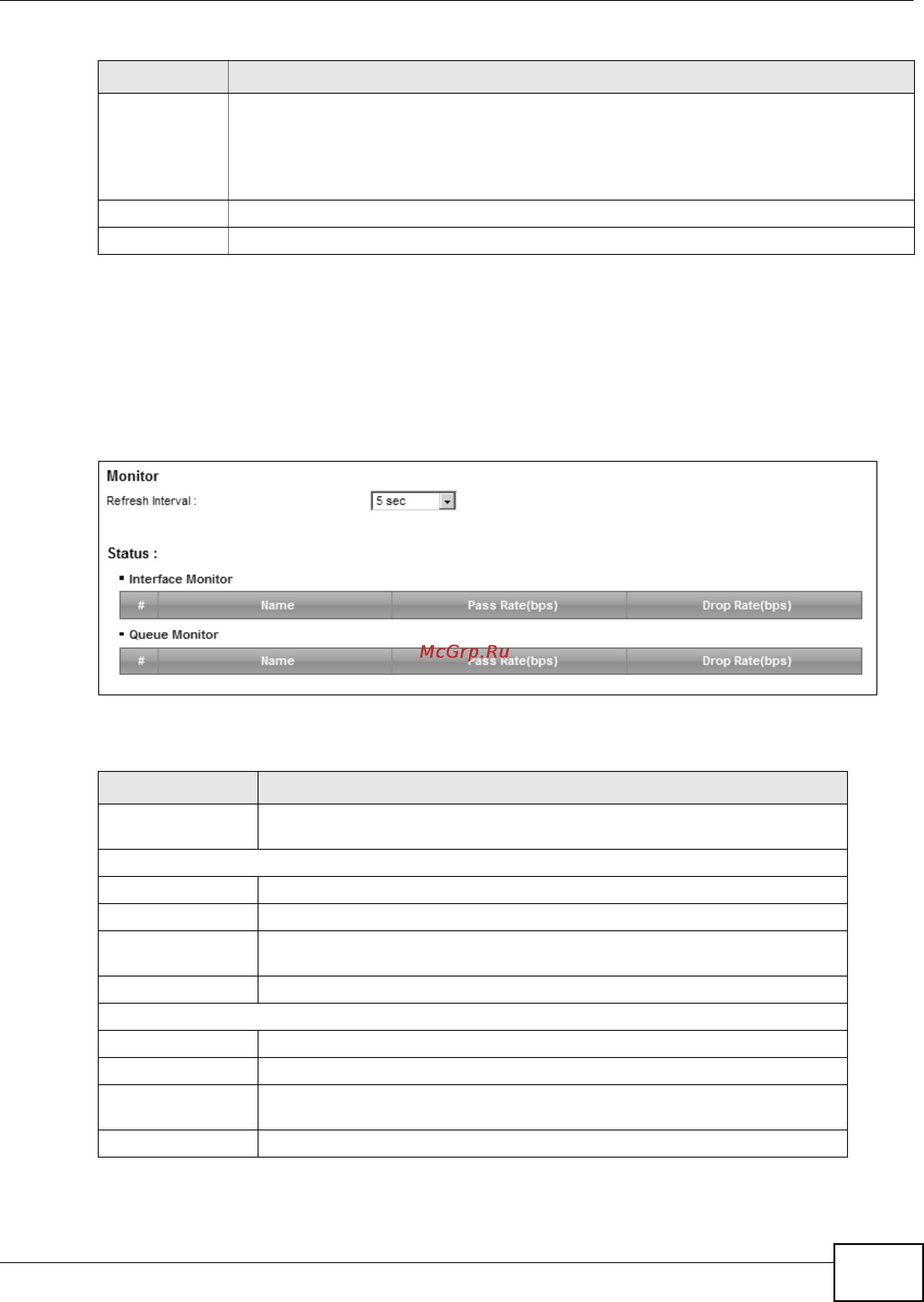

Figure 74 Network Setting > QoS > Monitor

The following table describes the labels in this screen.

Available Class

Selected Class

Select a QoS classifier to apply this QoS policer to traffic that matches the QoS classifier.

Highlight a QoS classifier in the Available Class box and use the > button to move it to the

Selected Class box.

To remove a QoS classifier from the Selected Class box, select it and use the < button.

Apply Click Apply to save your changes.

Cancel Click Cancel to exit this screen without saving.

Table 50 Policer Setup: Add/Edit

LABEL DESCRIPTION

Table 51 Network Setting > QoS > Monitor

LABEL DESCRIPTION

Refresh Interval Enter how often you want the Device to update this screen. Select No Refresh

to stop refreshing statistics.

Interface Monitor

# This is the index number of the entry.

Name This shows the name of the interface on the Device.

Pass Rate This shows how many packets forwarded to this interface are transmitted

successfully.

Drop Rate This shows how many packets forwarded to this interface are dropped.

Queue Monitor

# This is the index number of the entry.

Name This shows the name of the queue.

Pass Rate This shows how many packets assigned to this queue are transmitted

successfully.

Drop Rate This shows how many packets assigned to this queue are dropped.
