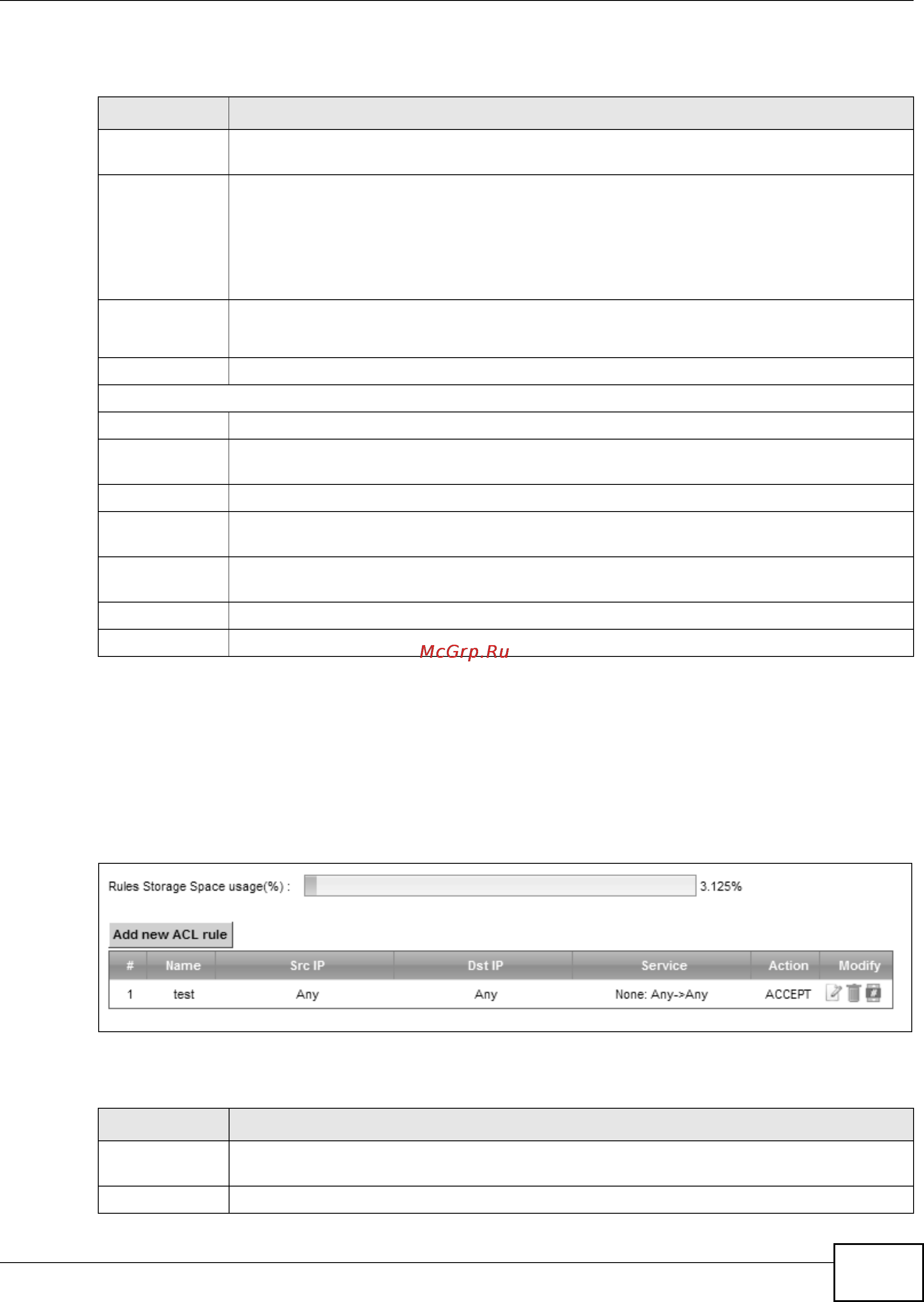

Zyxel VMG1312-B10B [221/394] The access control screen
![Zyxel VMG1312-B10B [221/394] The access control screen](/views2/1169620/page221/bgdd.png)
Chapter 15 Firewall
VMG1312-B10B / VMG1312-B30B Series User’s Guide
221
The following table describes the labels in this screen.
15.4 The Access Control Screen
Click Security > Firewall > Access Control to display the following screen. This screen displays a
list of the configured incoming or outgoing filtering rules.
Figure 106 Security > Firewall > Access Control
The following table describes the labels in this screen.
Table 77 Service: Add/Edit
LABEL DESCRIPTION
Protocol Choose the IP protocol (TCP, UDP, ICMP, or Other) that defines your customized port from
the drop-down list box. Select Other to be able to enter a protocol number.
Source/
Destination Port
These fields are displayed if you select TCP or UDP as the IP port.
Select Single to specify one port only or Range to specify a span of ports that define your
customized service. If you select Any, the service is applied to all ports.
Type a single port number or the range of port numbers that define your customized
service.
Protocol
Number
This field is displayed if you select Other as the protocol.
Enter the protocol number of your customized port.
Add Click this to add the protocol to the Rule List below.
Rule List
Protocol This is the IP port (TCP, UDP, ICMP, or Other) that defines your customized port.
Ports/Protocol
Number
For TCP, UDP, ICMP, or TCP/UDP protocol rules this shows the port number or range that
defines the custom service. For other IP protocol rules this shows the protocol number.
Modify/Delete Click the Delete icon to remove the rule.
Service Name Enter a unique name (up to 32 printable English keyboard characters, including spaces) for
your customized port.
Service
Description
Enter a description for your customized port.
Apply Click Apply to save your changes.
Cancel Click Cancel to exit this screen without saving.
Table 78 Security > Firewall > Access Control
LABEL DESCRIPTION
Add new ACL
rule
Click this to go to add a filter rule for incoming or outgoing IP traffic.
# This is the index number of the entry.
