Chapter 4 Tutorials
VMG1312-B10B / VMG1312-B30B Series User’s Guide
41
PIN Configuration
When you use the PIN configuration method, you need to use both the Device’s web configurator
and the wireless client’s utility.
1 Launch your wireless client’s configuration utility. Go to the WPS settings and select the PIN method
to get a PIN number.

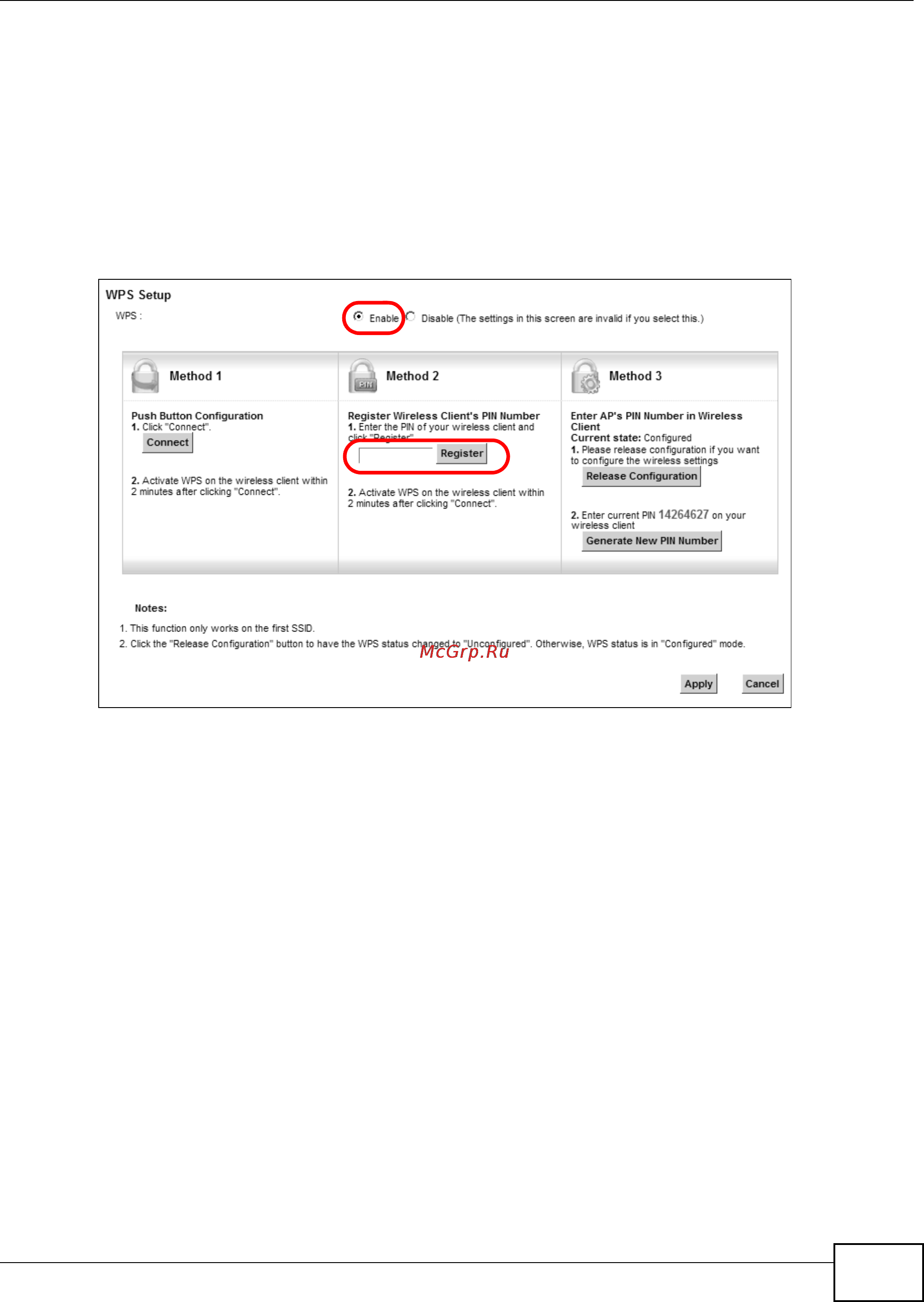

2 Log into Device’s web configurator and go to the Network Setting > Wireless > WPS screen.
Enable the WPS function and click Apply.
3 Enter the PIN number of the wireless client and click the Register button. Activate WPS function on
the wireless client utility screen within two minutes.
The Device authenticates the wireless client and sends the proper configuration settings to the
wireless client. This may take up to two minutes. The wireless client is then able to communicate
with the Device securely.
