Chapter 8 Home Networking
VMG1312-B10B / VMG1312-B30B Series User’s Guide
155
8.8 The STB Vendor ID Screen
Set Top Box (STB) devices with dynamic IP addresses sometimes don’t renew their IP addresses
before the lease time expires. This could lead to IP address conflicts if the STB continues to use an
IP address that gets assigned to another device. Use this screen to list the Vendor IDs of connected
STBs to have the Device automatically create static DHCP entries for them when they request IP
addresses.
Click Network Setting > Home Networking > STB Vendor ID to open this screen.

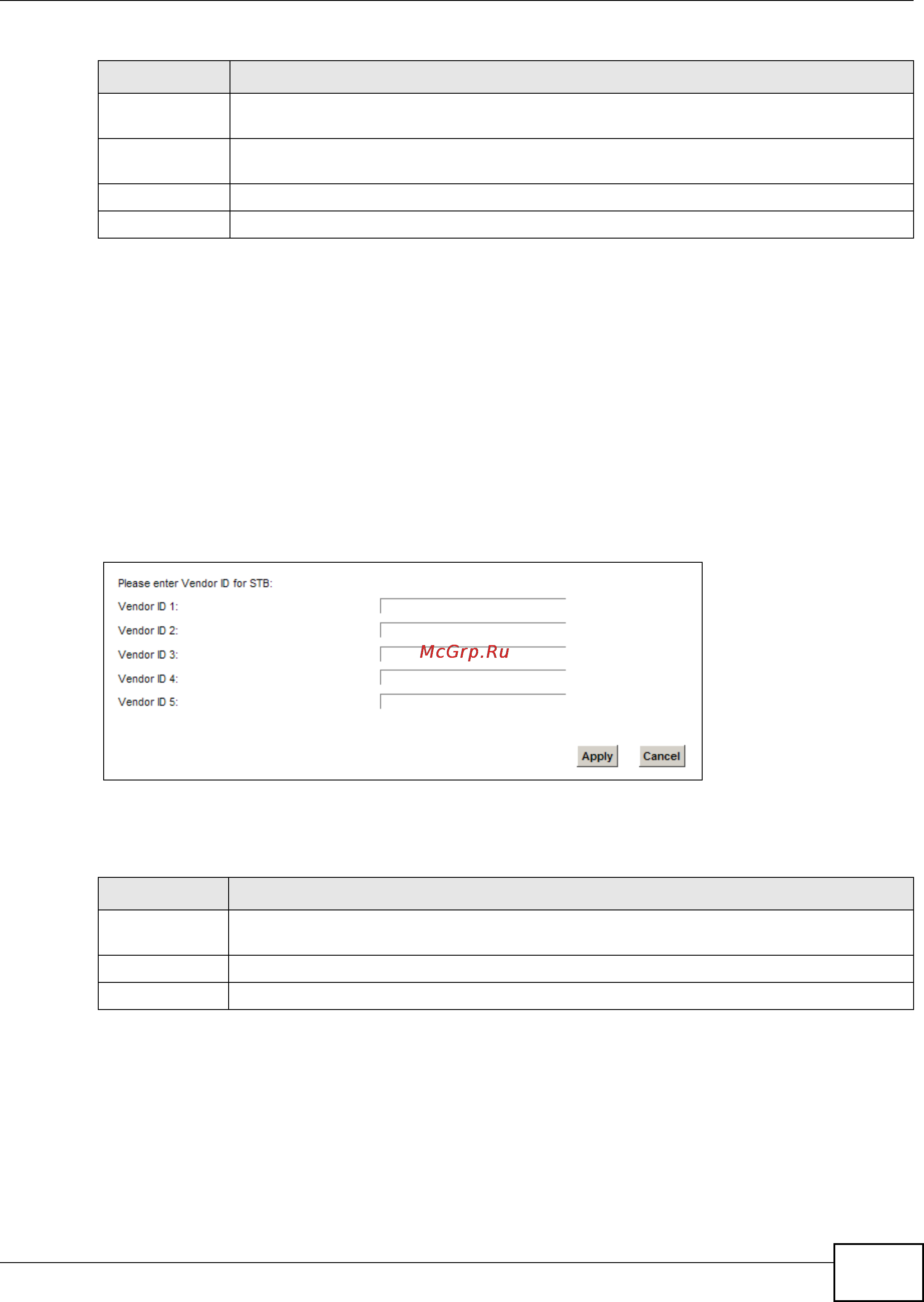

Figure 58 Network Setting > Home Networking > STB Vendor ID
The following table describes the labels in this screen.
Offer Public IP
by DHCP
Select the checkbox to enable the Device to provide public IP addresses by DHCP server.
Enable ARP
Proxy
Select the checkbox to enable the ARP (Address Resolution Protocol) proxy.
Apply Click Apply to save your changes.
Cancel
Click Cancel to exit this screen without saving.
Table 36 Network Setting > Home Networking > Additional Subnet (continued)
LABEL DESCRIPTION
Table 37 Network Setting > Home Networking > STB Vendor ID
LABEL DESCRIPTION
Vendor ID 1 ~
5
Enter the STB’s vendor ID.
Apply Click Apply to save your changes.
Cancel
Click Cancel to exit this screen without saving.
