Chapter 19 Certificates
VMG1312-B10B / VMG1312-B30B Series User’s Guide
239
19.4.2 Import Trusted CA Certificate
Click the Import Certificate button in the Trusted CA screen to open the following screen. The
Device trusts any valid certificate signed by any of the imported trusted CA certificates.

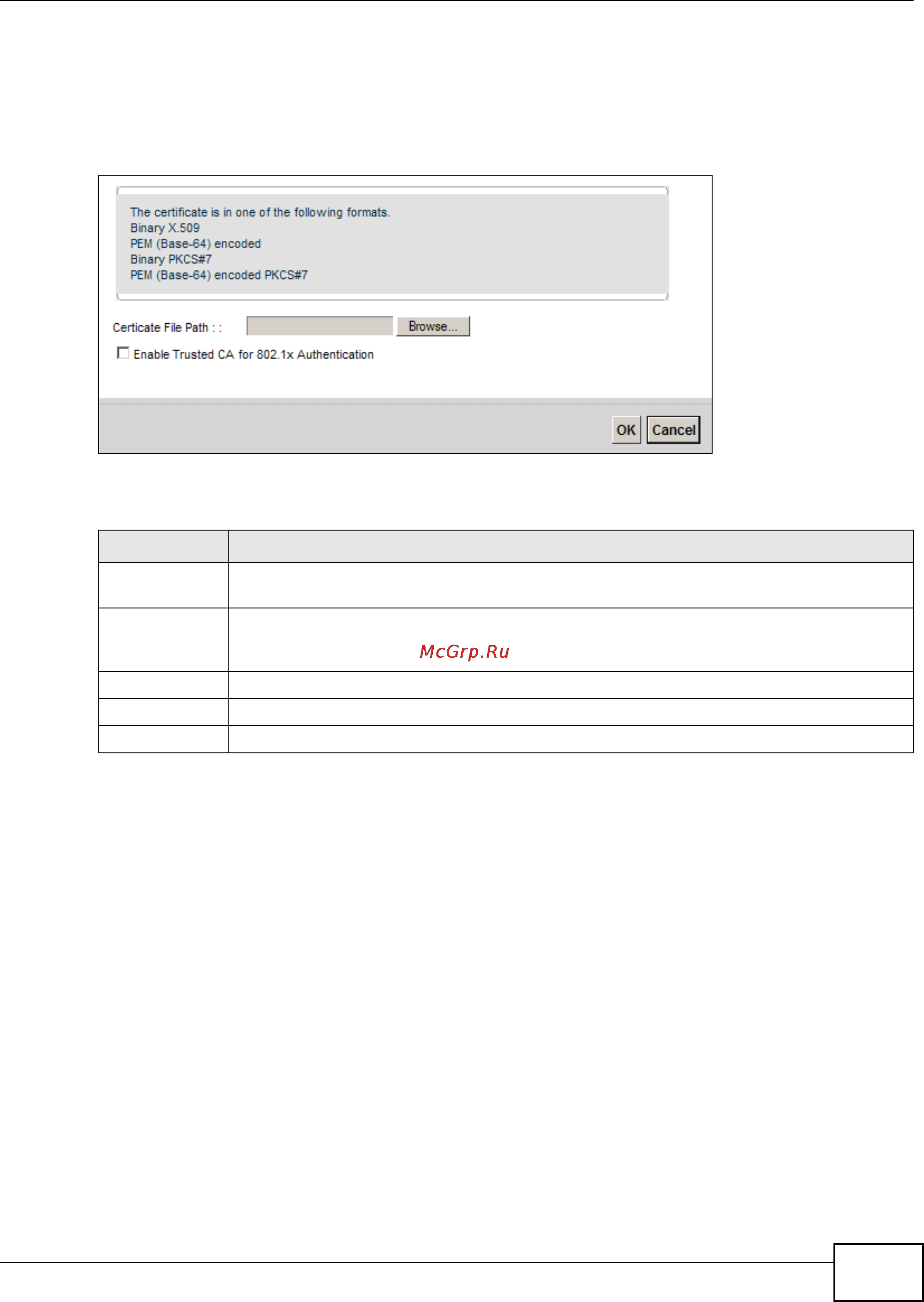

Figure 120 Trusted CA: Import Certificate
The following table describes the fields in this screen.
Table 91 Trusted CA: Import Certificate
LABEL DESCRIPTION
Certificate File
Path
Type in the location of the certificate you want to upload in this field or click Browse ... to
find it.
Enable Trusted
CA for 802.1x
Authentication
If you select this checkbox, the trusted CA will be used for 802.1x authentication. The
selected trusted CA will be displayed in the Network Setting > Broadband > 802.1x:
Edit screen.
Certificate Copy and paste the certificate into the text box to store it on the Device.
OK Click OK to save your changes.
Cancel Click Cancel to exit this screen without saving.
