Appendix B Setting up Your Computer’s IP Address
VMG1312-B10B / VMG1312-B30B Series User’s Guide
328
6 Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.

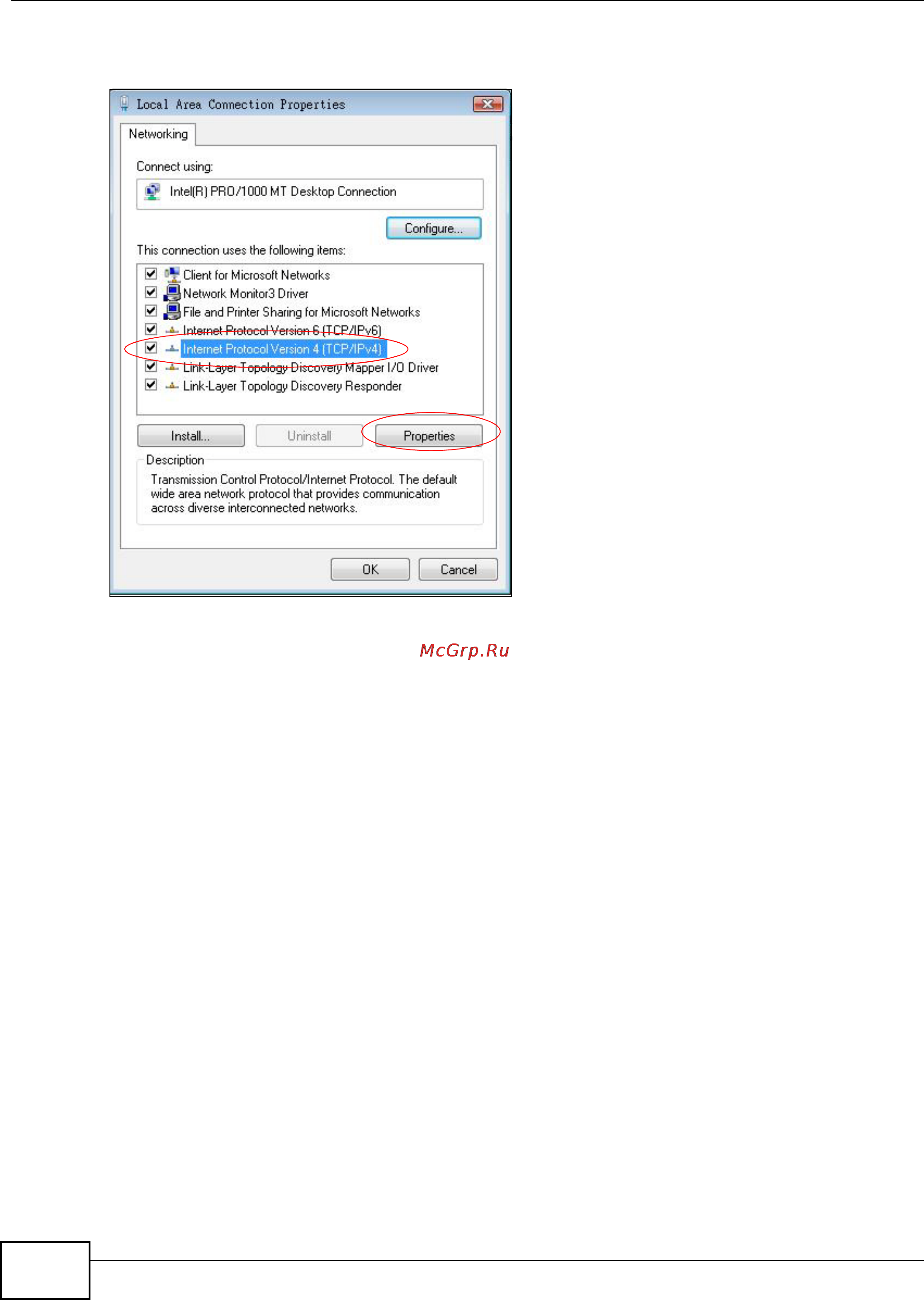

Figure 176 Windows Vista: Local Area Connection Properties
7 The Internet Protocol Version 4 (TCP/IPv4) Properties window opens (the General tab).
• If you have a dynamic IP address click Obtain an IP address automatically.
• If you have a static IP address click Use the following IP address and fill in the IP address,
Subnet mask, and Default gateway fields.
