Appendix B Setting up Your Computer’s IP Address
VMG1312-B10B / VMG1312-B30B Series User’s Guide
326

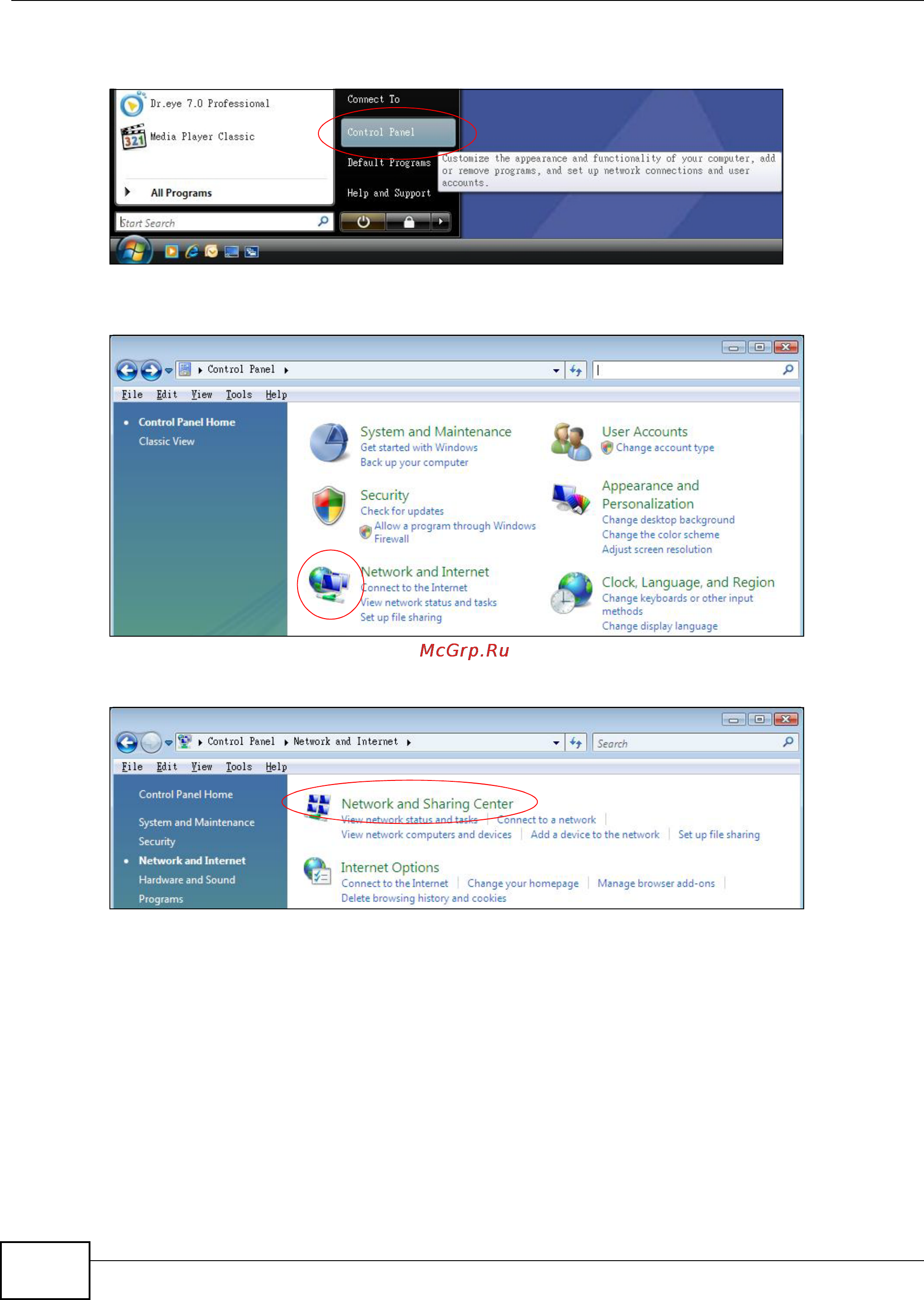

1 Click the Start icon, Control Panel.
Figure 171 Windows Vista: Start Menu
2 In the Control Panel, double-click Network and Internet.
Figure 172 Windows Vista: Control Panel
3 Click Network and Sharing Center.
Figure 173 Windows Vista: Network And Internet
