Chapter 4 Tutorials
VMG1312-B10B / VMG1312-B30B Series User’s Guide
63

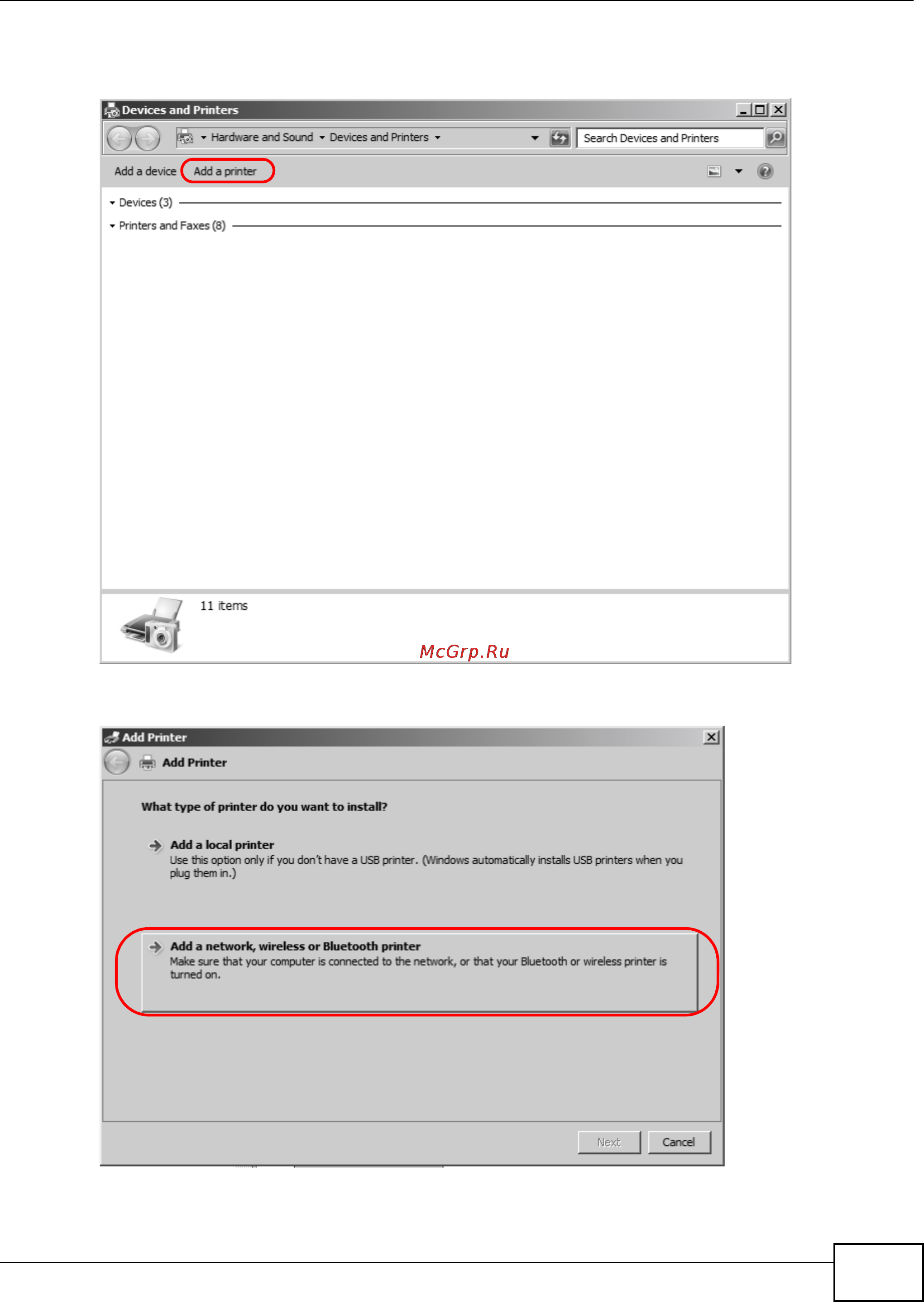

1 Click Start > Control Panel > Devices and Printers to open the Devices and Printers screen.
Click Add a printer.
Tutorial: Printers Folder
2 The Add Printer wizard screen displays. Click Add a network, wireless or Bluetooth printer.
Tutorial: Add Printer Wizard: Welc ome
