Chapter 8 Home Networking
VMG1312-B10B / VMG1312-B30B Series User’s Guide
146

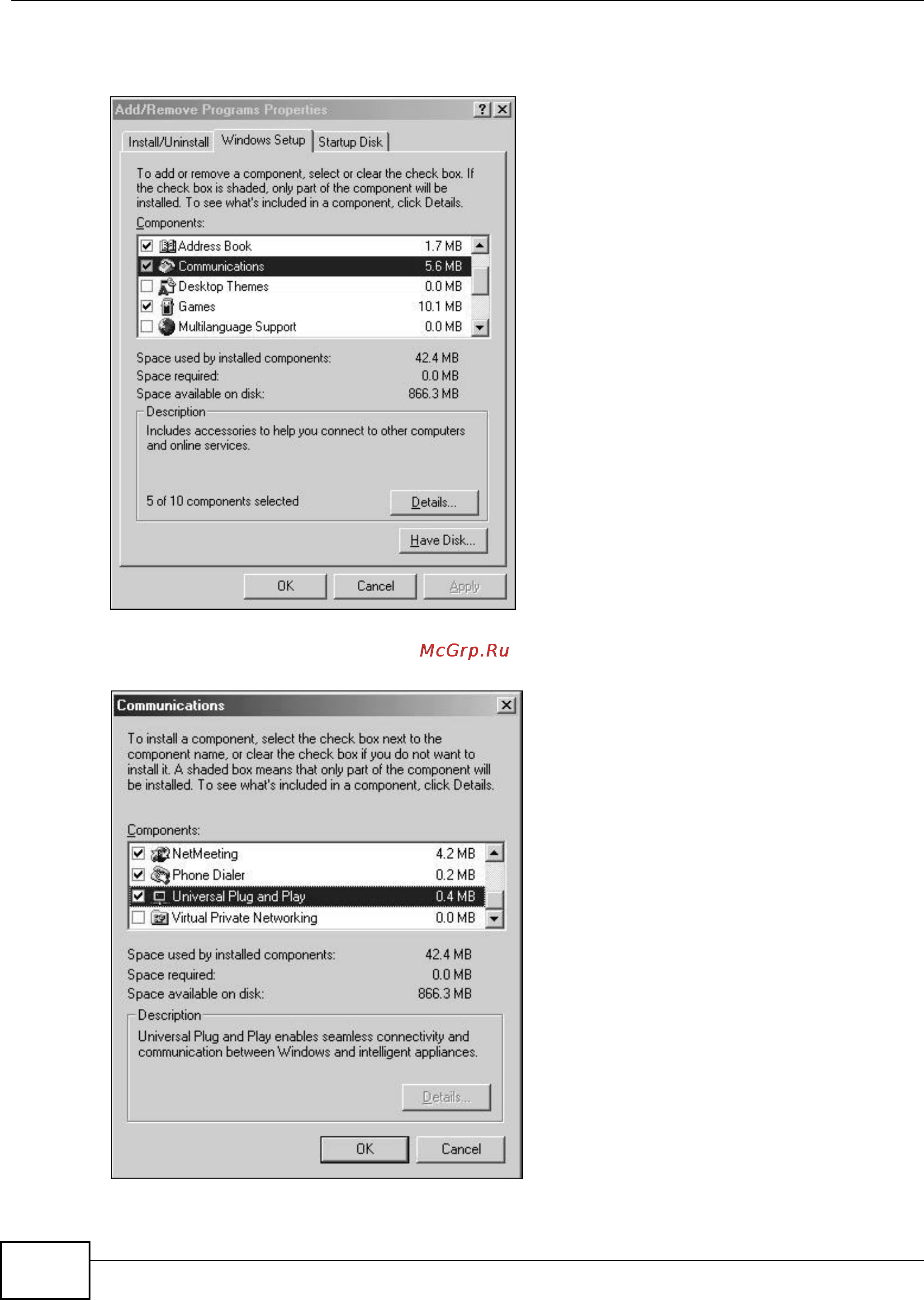

2 Click on the Windows Setup tab and select Communication in the Components selection box.
Click Details.
Add/Remove Programs: Windows Setup: Communication
3 In the Communications window, select the Universal Plug and Play check box in the
Components selection box.
Add/Remove Programs: Windows Setup: Communication: Components
