Chapter 8 Home Networking
VMG1312-B10B / VMG1312-B30B Series User’s Guide
150

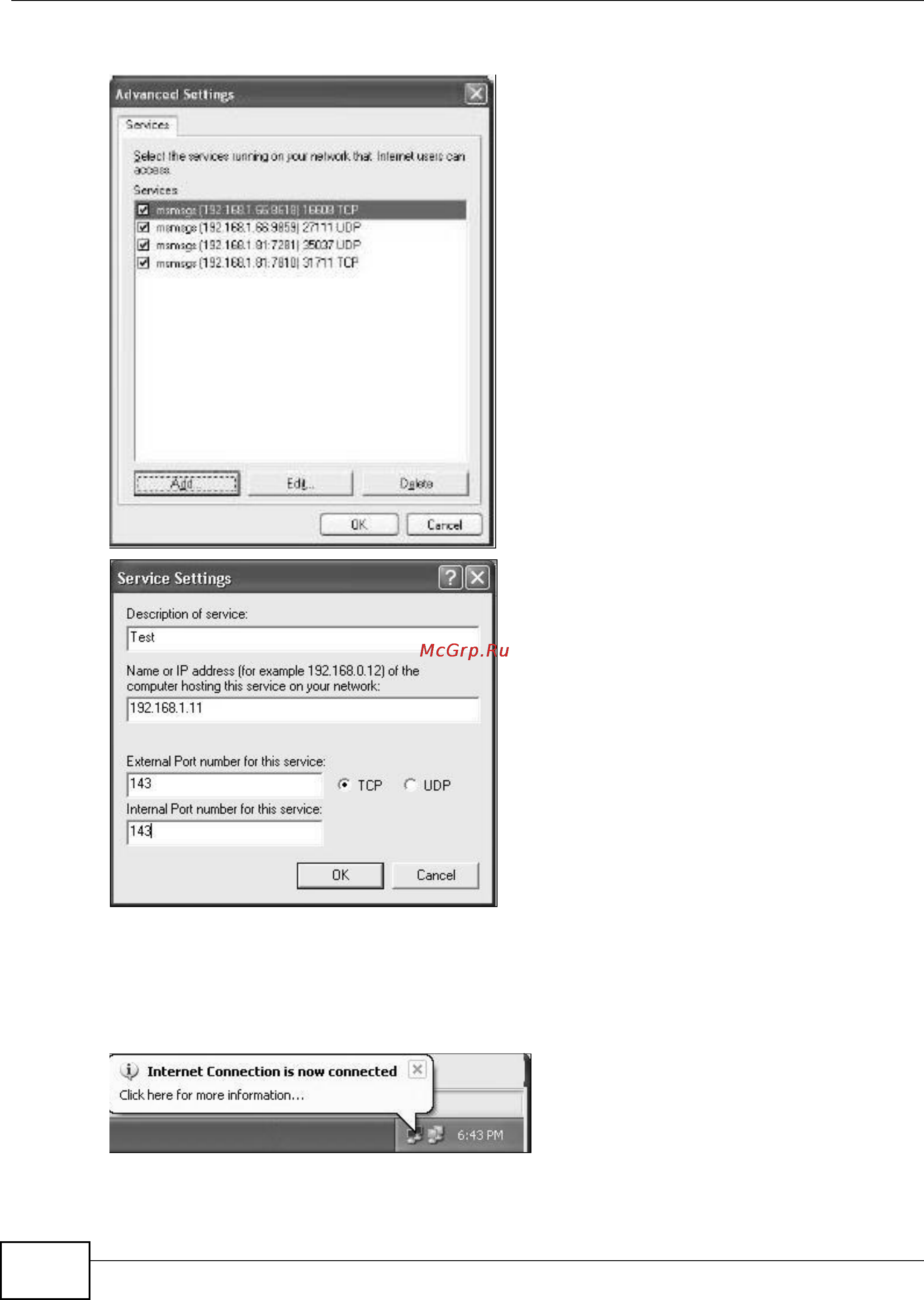

4 You may edit or delete the port mappings or click Add to manually add port mappings.
Internet Connection Properties: Advanced Settings
Internet Connec tion Properties : Advanced Settin gs: Add
5 When the UPnP-enabled device is disconnected from your computer, all port mappings will be
deleted automatically.
6 Select Show icon in notification area when connected option and click OK. An icon displays in
the system tray.
System Tray Icon
