Appendix B Setting up Your Computer’s IP Address
VMG1312-B10B / VMG1312-B30B Series User’s Guide
319
• If you have a static IP address, select Specify an IP address and type your information into
the IP Address and Subnet Mask fields.

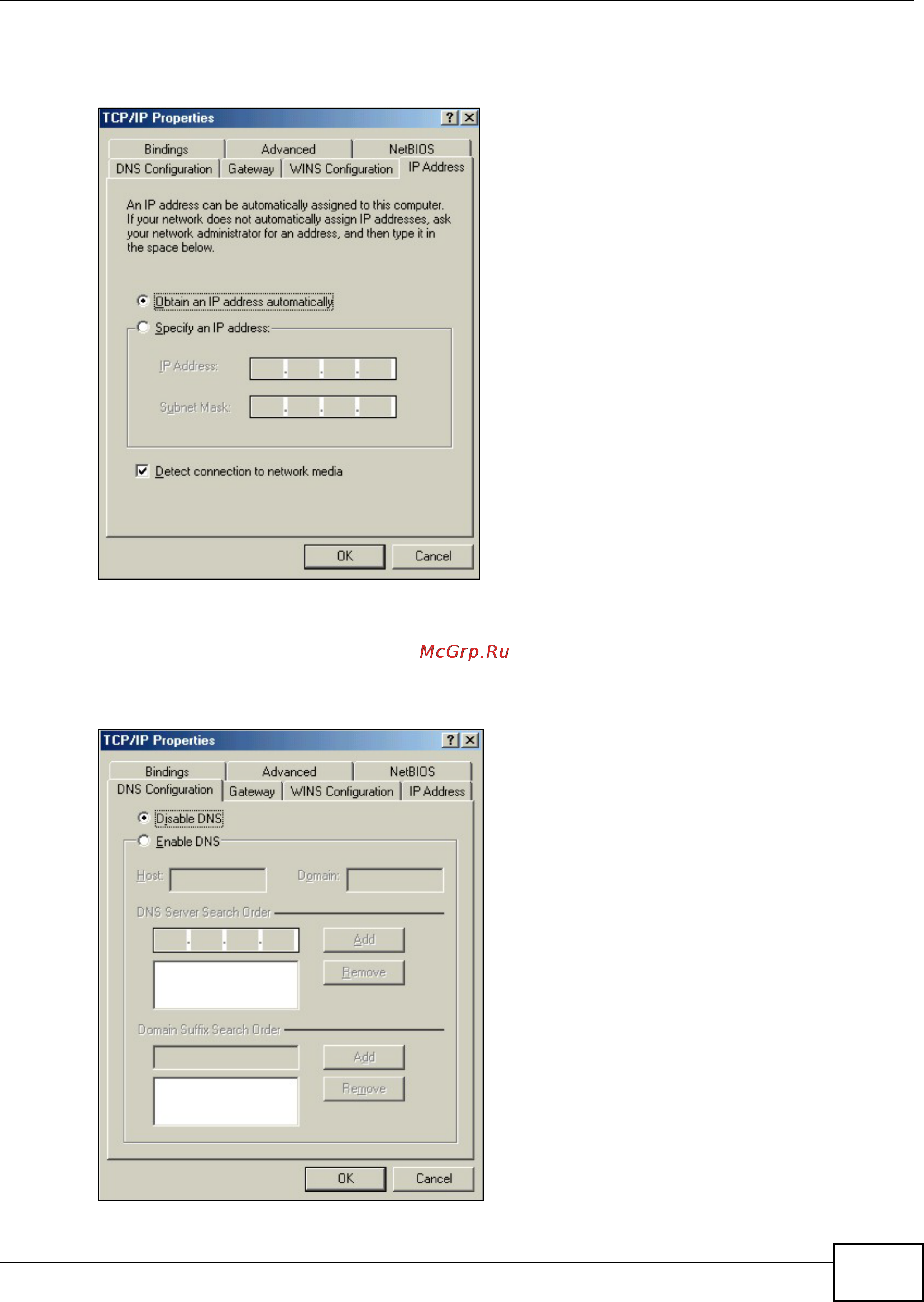

Figure 162 Windows 95/98/Me: TCP/IP Properties: IP Address
3 Click the DNS Configuration tab.
• If you do not know your DNS information, select Disable DNS.
• If you know your DNS information, select Enable DNS and type the information in the fields
below (you may not need to fill them all in).
Figure 163 Windows 95/98/Me: TCP/IP Properties: DNS Configuration
