Appendix B Setting up Your Computer’s IP Address
VMG1312-B10B / VMG1312-B30B Series User’s Guide
321
2 In the Control Panel, double-click Network Connections (Network and Dial-up Connections
in Windows 2000/NT).

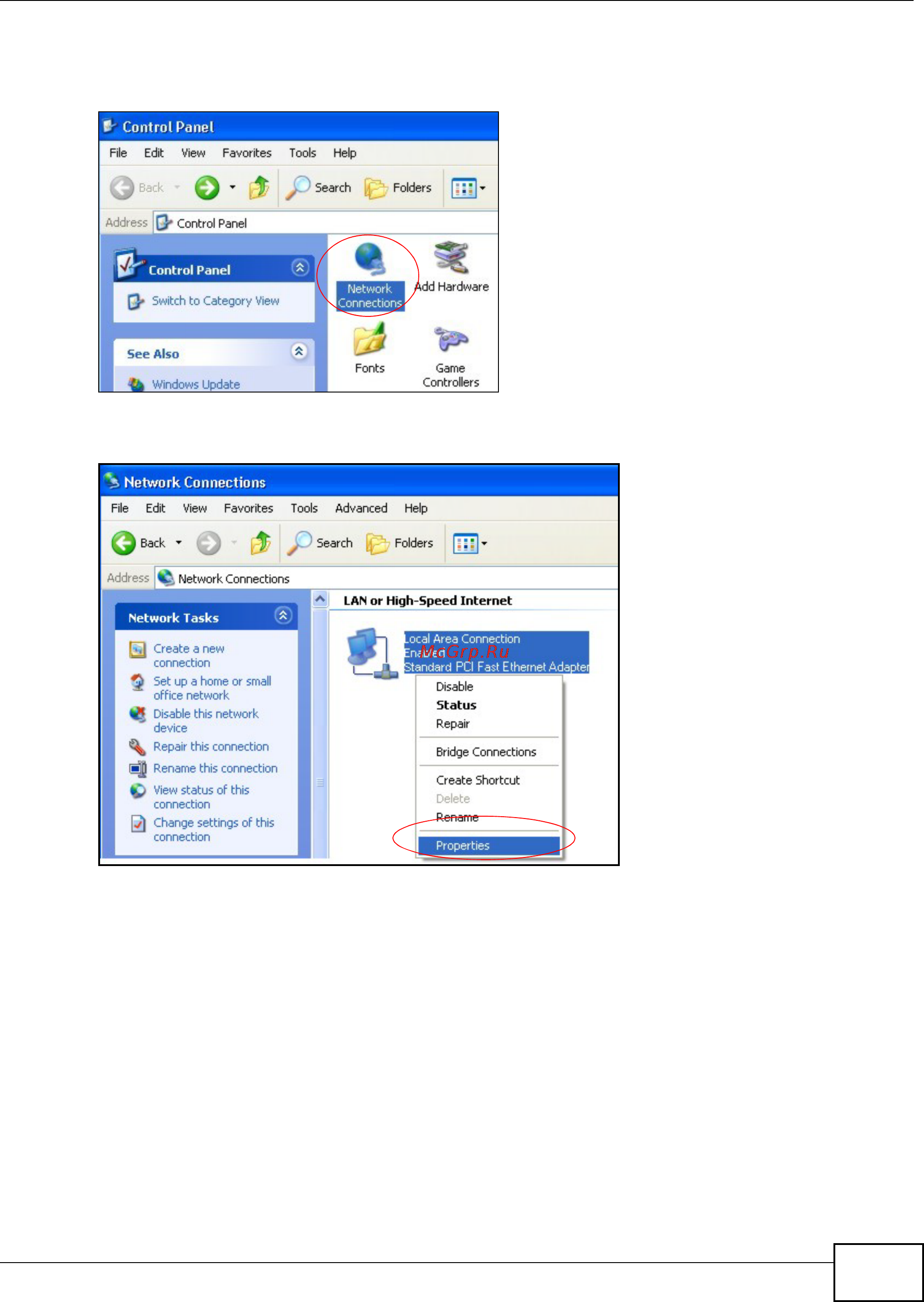

Figure 165 Windows XP: Control Panel
3 Right-click Local Area Connection and then click Properties.
Figure 166 Windows XP: Control Panel: Network Connections: Properties
