Chapter 4 Tutorials
VMG1312-B10B / VMG1312-B30B Series User’s Guide
66

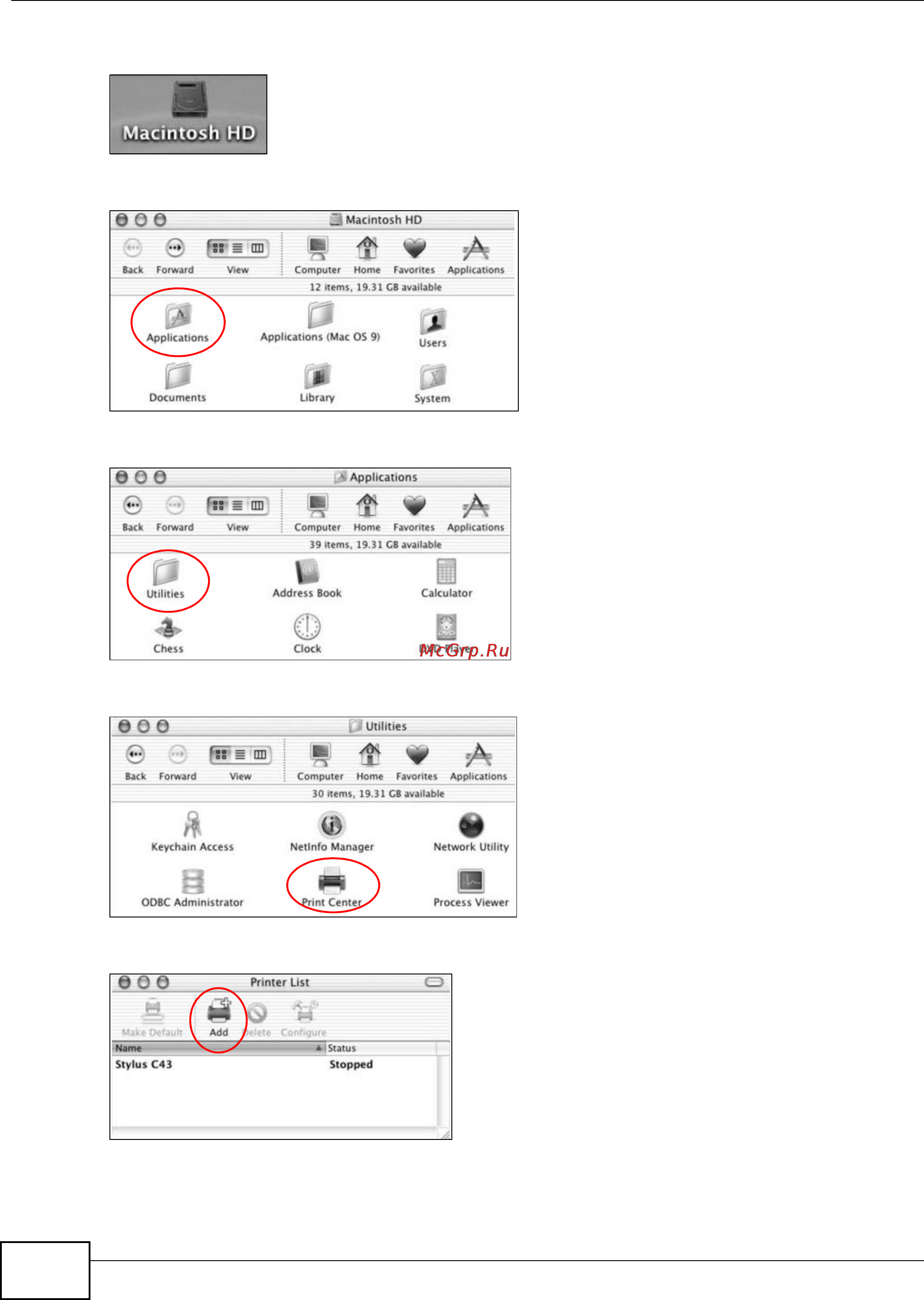

2 On your desktop, double-click the Macintosh HD icon to open the Macintosh HD window.
Tutorial: Mac intosh HD
3 Double-click the Applications folder.
Tutorial: Macintosh HD folder
4 Double-click the Utilities folder.
Tutorial: Ap plications Folder
5 Double-click the Print Center icon.
Tutorial: Utili ties Folder
6 Click the Add icon at the top of the screen.
Tutorial: Printer List Folder
7 Set up your printer in the Printer List configuration screen. Select IP Printing from the drop-
down list box.
