Tp-Link T2600G-28MPS (TL-SG3424P) Руководство пользователя онлайн [150/379] 174195
![Tp-Link T2600G-28MPS (TL-SG3424P) Руководство пользователя онлайн [150/379] 174195](/views2/1210070/page150/bg96.png)

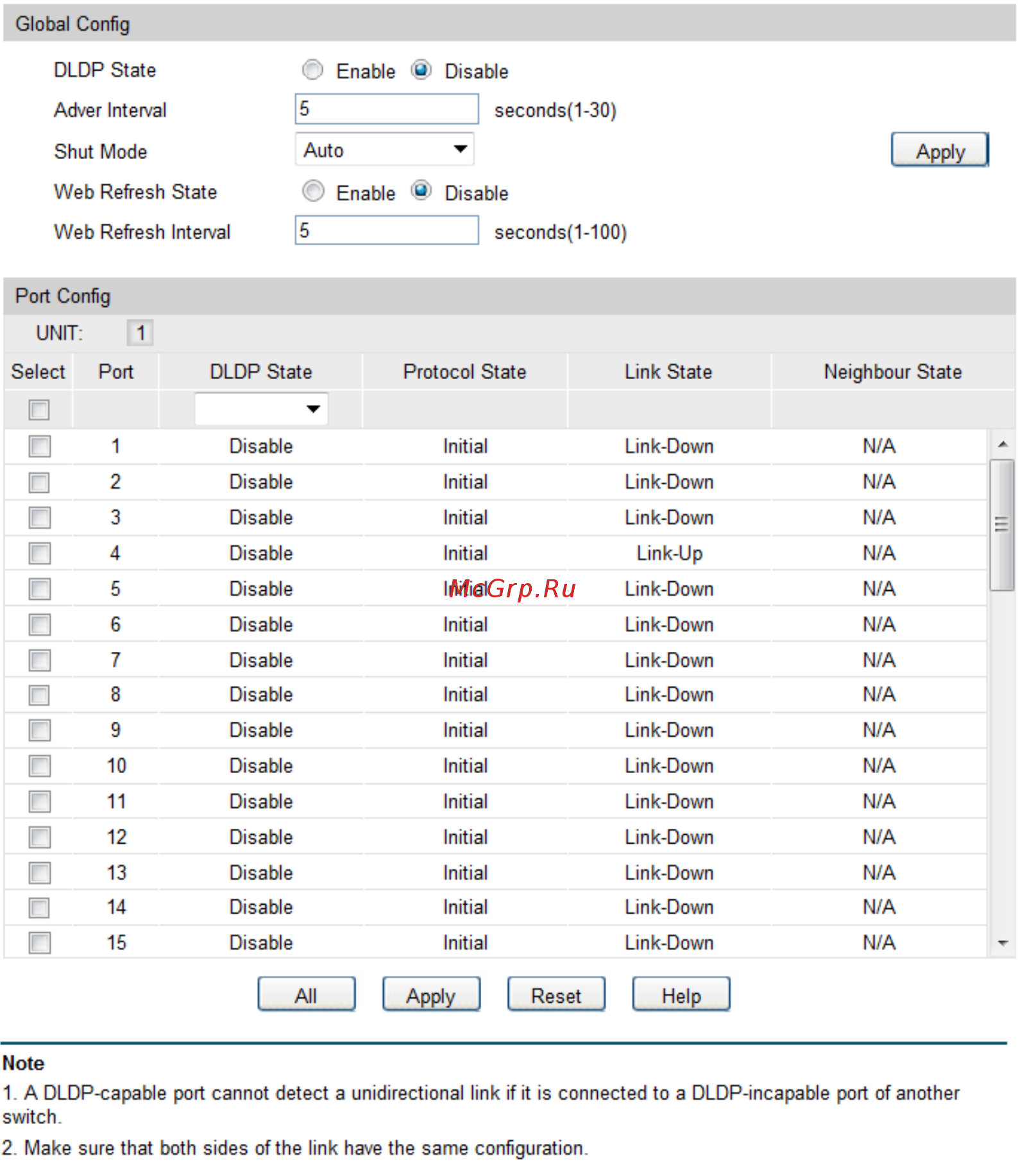

Figure 8-12 DLDP Config
The following entries are displayed on this screen:
Global Config
DLDP State:
Enable/Disable the DLDP function globally.
Adver Interval: Config the interval to send advertisement packets, ranging
from 1 to 30 seconds. The default value is 5 seconds.
138
