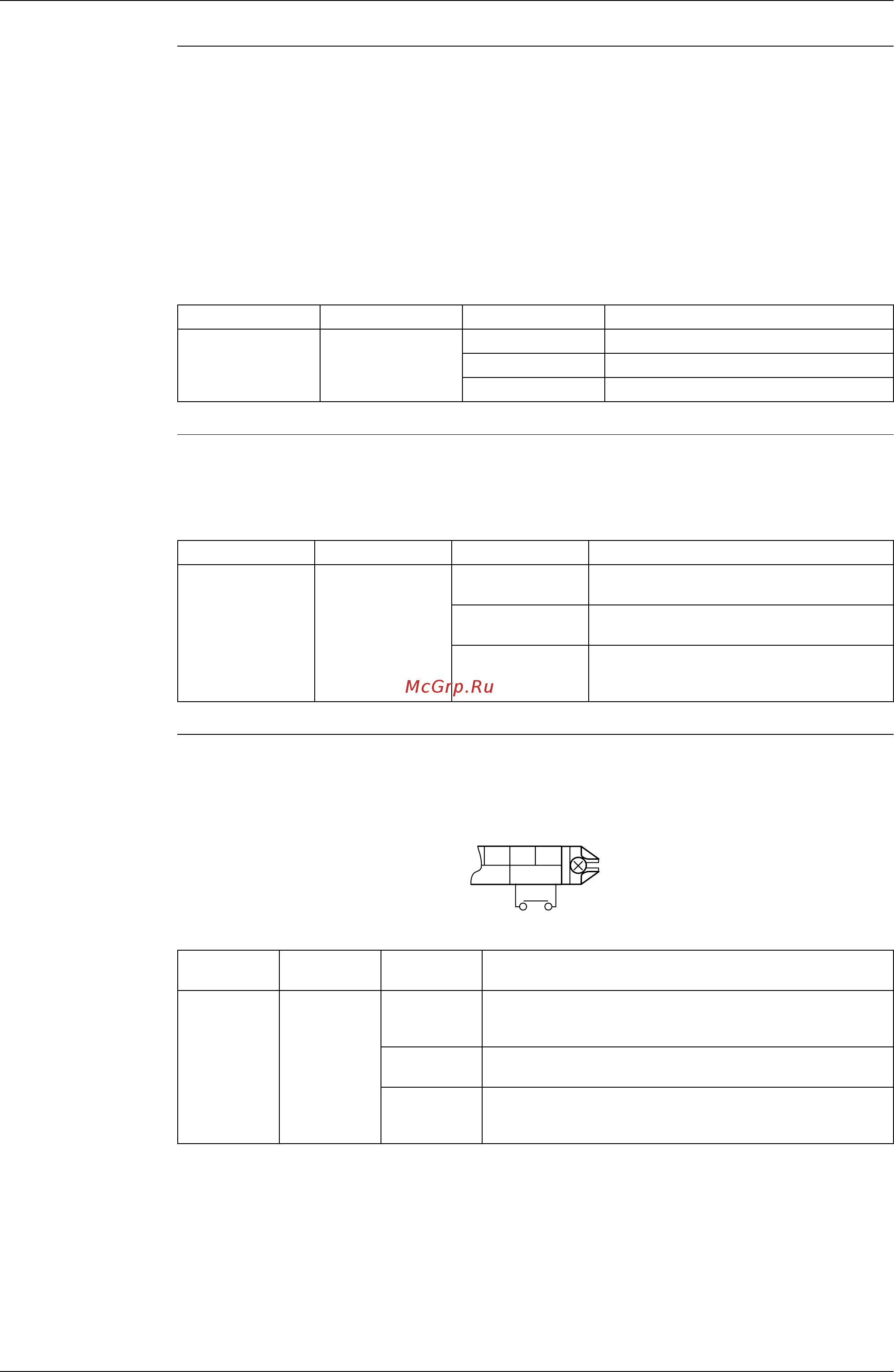

Si34-803 Field Setting
Test Operation 203
(5) Airflow Adjustment (AUTO)
External Static Pressure Settings
Make settings in either method (a) or method (b) as explained below.
(a) Use the airflow auto adjustment function to make settings.
Airflow auto adjustment: The volume of blow-off air is automatically adjusted to the rated
quantity.
(b) Select External Static Pressure with Remote Controller Check that 01 (OFF) is set for the
“SECOND CODE NO.” in “MODE NO. 21” for airflow adjustment on an indoor unit basis in
Table 4. The “SECOND CODE NO.” is set to 01 (OFF) at factory set. Change the “SECOND
CODE NO.” as shown in Table according to the external static pressure of the duct to be
connected.
(6) Optional Output Switching
Using this setting, "operation output signal" and "abnormal output signal" can be provided.
Output signal is output between terminals K1 and K2 of "customized wiring adapter," an optional
accessory.
(7) External ON/OFF input
This input is used for "ON / OFF operation" and "Protection device input" from the outside. The
input is performed from the T1-T1 terminal of the operation terminal block (X1A) in the electric
component box.
Setting Table
Mode No. First Code No. Second Code No. Airflow adjustment
11 (21) 7
01 OFF
02 Completion of airflow adjustment
03 Start of airflow adjustment
Mode No. First Code No. Second Code No. Remarks
12 (22) 0
01
Indoor unit thermostat ON/OFF signal is
provided.
03
Output linked with "Start/Stop" of remote
controller is provided.
04
In case of "Malfunction Display" appears
on the remote controller, output is
provided.
F2 T1 T2
Forced stop
Input A
Mode No.
Setting
Switch No.
Setting
Position No.
Operation by input of the signal A
12 (22) 1
01
ON: Forced stop (prohibition of using the remote
controller)
OFF: Permission of using the remote controller
02
OFF → ON: Permission of operation
ON → OFF: Stop
03
ON: Operation
OFF: The system stops, then the applicable unit
indicates "A0". The other indoor units indicate "U9".
