Si34-803 Troubleshooting by Indication on the Remote Controller
Troubleshooting 279
3.13 “
C6
” Indoor Unit: Failure of Combination (Between Indoor
unit PC Board and Fan PC Board)
Remote
Controller
Display
C6
Applicable
Models
FXMQ40~125P
Method of
Malfunction
Detection
Conduct open line detection with PC board for fan (A2P) using indoor PC board (A1P).
Malfunction
Decision
Conditions
When the communication data of PC board for fan (A2P) is determined as incorrect.
Supposed
Causes
The possible causes are:
Malfunction of PC board for fan (A2P).
Connection defect of capacity setting adapter.
Setting mistake on site.

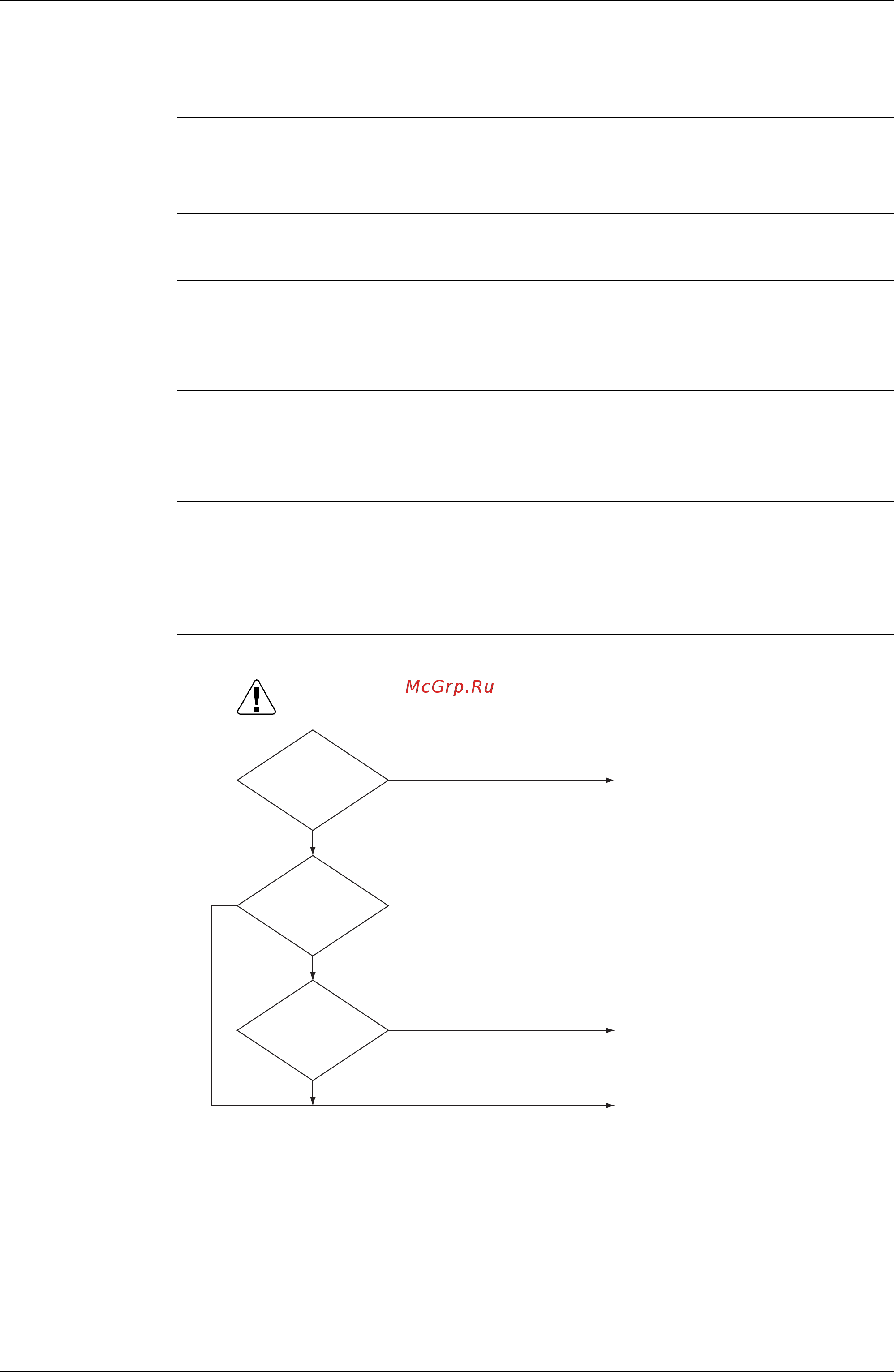

Troubleshooting
NO
Is the
type of PC
board for fan (A2P)
correct?
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Was
indoor PC board
(A1P) replaced with
supplementary PC
board?
YES
YES
YES
NO
NO
Was
correct capacity setting
adapter installed when replacing it
with supplementary PC
board?
After establishing transmission
for indoor and outdoor,
diagnose the operation again.
Replace it with correct PC board for
fan (A2P).
Install correct capacity setting
adapter.
