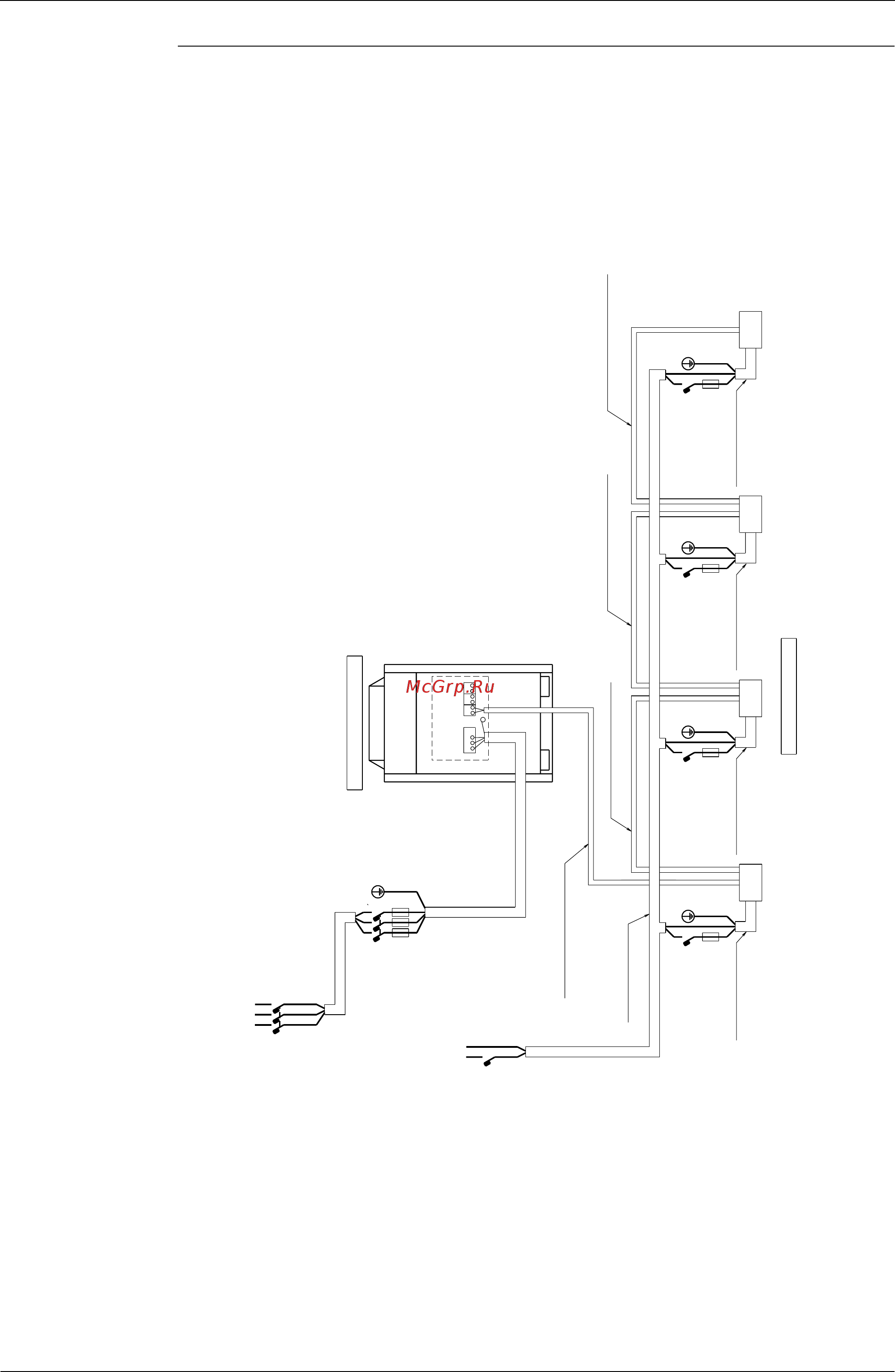

Wiring Diagrams for Reference Si34-803
386 Appendix
RXYQ5P / 8P / 10P / 12P / 14P / 16P / 18PTL
L
FUSE
SWITCH
L1
MAIN
SWITCH
L3
N
N
SWITCH
MAIN SWITCH
L2
L
L1
L3
L2
POWER SUPPLY
POWER SUPPLY
FUSE
2 WIRES CABLE
(TRANSMISSION LINE)
2 WIRES CABLE
(TRANSMISSION LINE)
2 WIRES CABLE
(TRANSMISSION LINE)
2 WIRES CABLE
(TRANSMISSION LINE)
INDOOR UNITS
OUTDOOR UNITS
2 WIRES CABLE
(POWER LINE)
2 WIRES CABLE
(POWER LINE)
N
SWITCH
L
FUSE
2 WIRES CABLE
(POWER LINE)
N
SWITCH
L
FUSE
2 WIRES CABLE
(POWER LINE)
N
SWITCH
L
FUSE
2 WIRES CABLE
(POWER LINE)
Notes 1) All wiring, components and materials to be procured on the site must comply with the
applicable local and national codes.
2) Use copper conductors only.
3) As for details, see wiring diagram.
4) Install circuit breaker for safety.
5) All field wiring and components must be provided by licensed electrician.
6) Unit shall be grounded in compliance with the applicable local and national codes.
7) Wiring shown are general points-of-connection guides only and are not intended for or to
include all details for a specific installation.
8) Be sure to install the switch and the fuse to the power line of each equipment.
9) Install the main switch that can interrupt all the power souces in an integrated manner
because this system consists of the equipment utilizing the multiple power sources.
10) If there exists the possibility of reversed phase, lose phase, momentary blackout or the
power goes on and off while the product is operating, attach a reversed phase protection
circuit locally.
Running the product in reversed phase may break the compressor and other parts.
3D060852
