Troubleshooting by Indication on the Remote Controller Si34-803
310 Troubleshooting
3.37 “
L5
” Outdoor Unit: Inverter Compressor Abnormal
Remote
Controller
Display
L5
Applicable
Models
RXYQ5P(A)~54P(A)
Method of
Malfunction
Detection
Malfunction is detected from current flowing in the power transistor.
Malfunction
Decision
Conditions
When an excessive current flows in the power transistor.
(Instantaneous overcurrent also causes activation.)
Supposed
Causes
Defect of compressor coil (disconnected, defective insulation)
Compressor start-up malfunction (mechanical lock)
Defect of inverter PC board

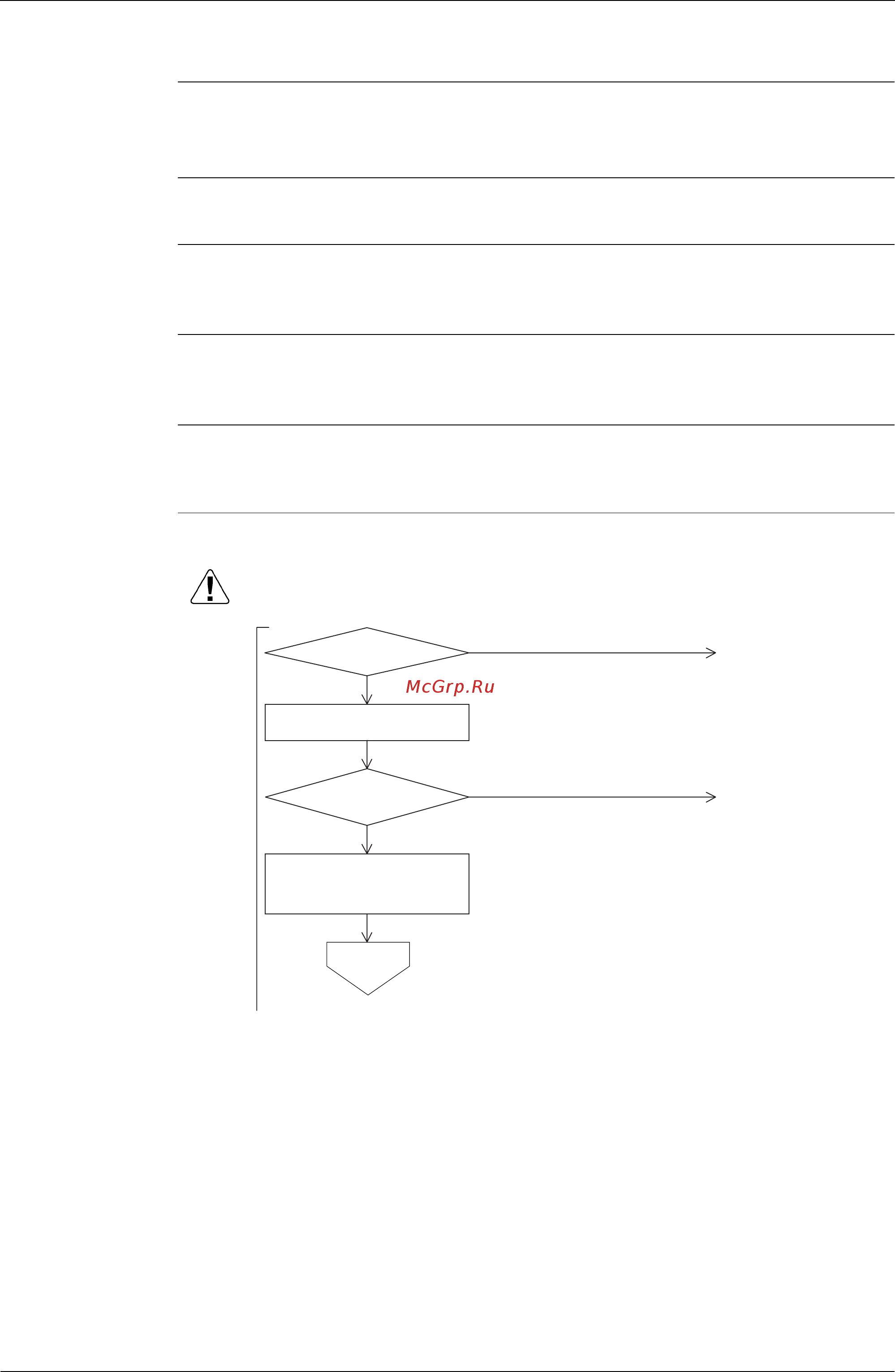

Troubleshooting
Compressor inspection
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Power OFF
On-site causes.
Open the stop valve.
Repalce the cable, and
then securely connect the
connectors.
YES
NO
NO
YES
Is the stop valve open?
Check the compressor cable
for disconnection and flaws.
Disconnect the cable from the
compressor, and then check
the compressor for the
insulation resistance.
The
compressor cable has
a defect.
A
